Tractor · 2005Unverified

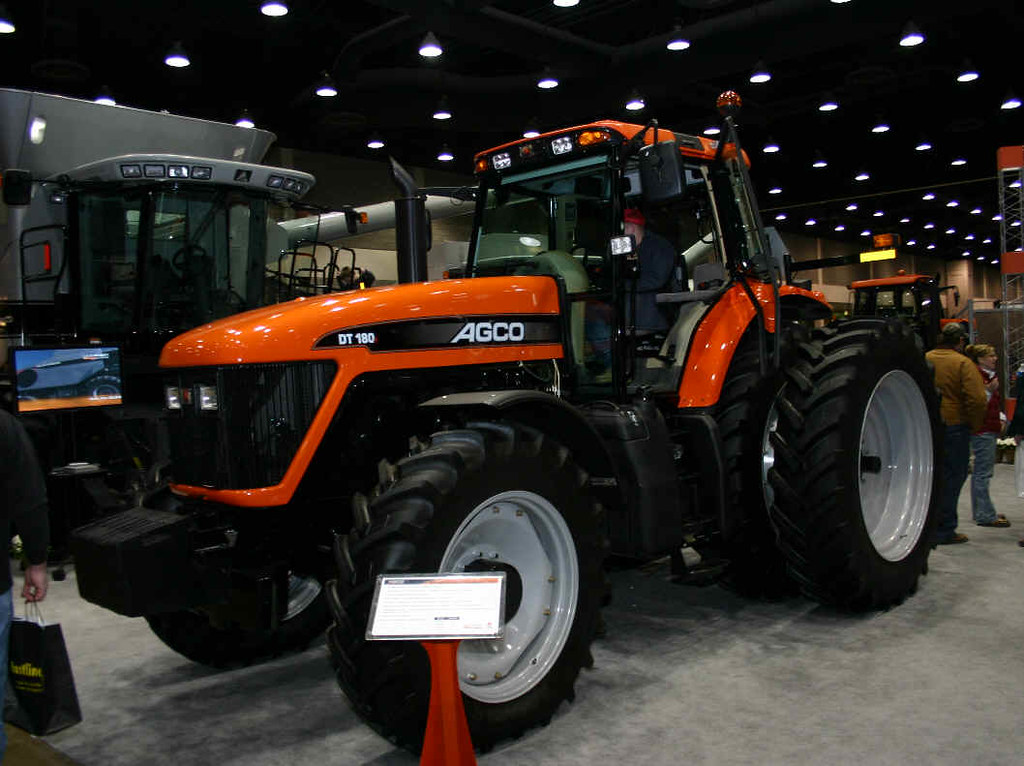

AGCO DT180A
AGCO DT180A — DT-A Series · 187 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
187 hp
Max power
156.9 kW
Weight
8680 kg
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with optional pneumatic suspension. Datatronics 3, Fieldstar, and Auto-Guide compatible.Reference
Variants
8450similar Massey Ferguson modelReference
Engine
Sisu Diesel 7.4L 6-cyl dieselReference
Fuel tank599.9 LReference
Engine160.3 kWReference
Drawbar (tested)115.7 kWReference
Sisu DieselReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier IIReference
Power160.3 kWReference
Air cleanertwo paper elementsReference
Pre-heatingthermostartReference
StarterelectricReference
Starter volts12Reference
Max power156.9 kWReference
Power at rated engine speed139.1 kWReference
Max power115.7 kWReference
Transmission
continuously variable transmissionReference
TransmissionPowerMaxx CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (two-range)Reference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)156.9 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4 or 5Reference
Total flow147.6 lpmReference
Rear Type3Reference
Rear lift (at 24"/610mm)6531 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed156.5 kWReference
Dimensions
Wheelbase307 cmReference
Weight8680 kgReference
Length523 cmReference
Height (cab)309 cmReference
Shipping weight8680 kgReference
Front axleHydraMaxx optionalReference
DT180A Serial Numbers
Location:Rear of tractorReference
2005P001001Reference
2006R001001Reference
2007S001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel CVT 4WDMarch 2005 - May 2005, Link: OCED Tractor Test 2321 fileReference
PTO performanceReference
Fuel use42.8 l/hourReference
Fuel use43.5 l/hourReference
Drawbar performanceReference
Pull at 7.7 KPHReference
Max pull11296 kgReference
Pull at 3.6 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
