Tractor · 2002Unverified

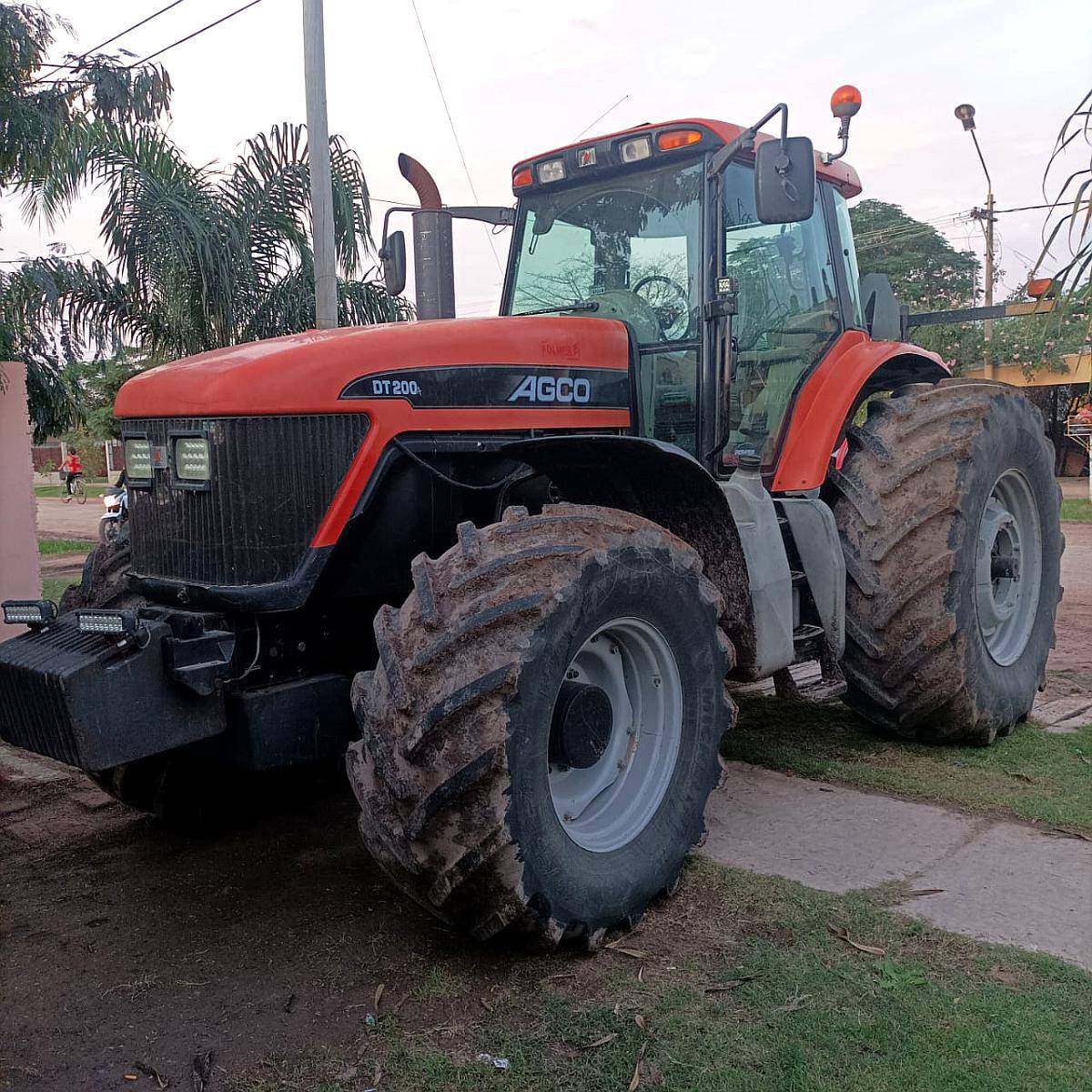

AGCO DT200
AGCO DT200 — DT Series · 204 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
204 hp
Max power
168.0 kW
Weight
8935 kg
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Cummins 8.3L 6-cyl dieselReference
Fuel tank454.2 LReference
Engine175.2 kWReference
Drawbar (tested)132.1 kWReference
Cummins C8.3LReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power175.2 kWReference
Air cleanertwo paper elementsReference
Rated RPM2200Reference
Torque970.9 NmReference
Torque RPM1300Reference
Starter volts12Reference
Max power168.0 kWReference
Power at rated engine speed152.4 kWReference
Max power132.1 kWReference
Transmission
18-speed full power shiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchelectro-hydraulic wet discReference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
PTO (tested)168.0 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves4Reference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
Rear Type3/3NReference
Rear lift (at 24"/610mm)8618 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Power at rated PTO speed165.1 kWReference
Dimensions
Wheelbase307 cmReference
Weight8935 kgReference
Length515 cmReference
Width249 cmReference
Height307 cmReference
Shipping weight8935 kgReference
AGCO DT200 attachments
front-end loaderReference
DT200 Serial Numbers
2002L001001Reference
2003M001001Reference
2004N001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 18-speed 4WDMay 7 - 18, 2001Link: OCED Tractor Test 1794 fileReference
PTO performanceReference
Fuel use51.1 l/hourReference
Fuel use49.2 l/hourReference
Fuel use50.7 l/hourReference
Drawbar performanceReference
Gear 11 used for power test.Reference
Max pull11098 kgReference
Gear 4 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
