Tractor · 2009Unverified

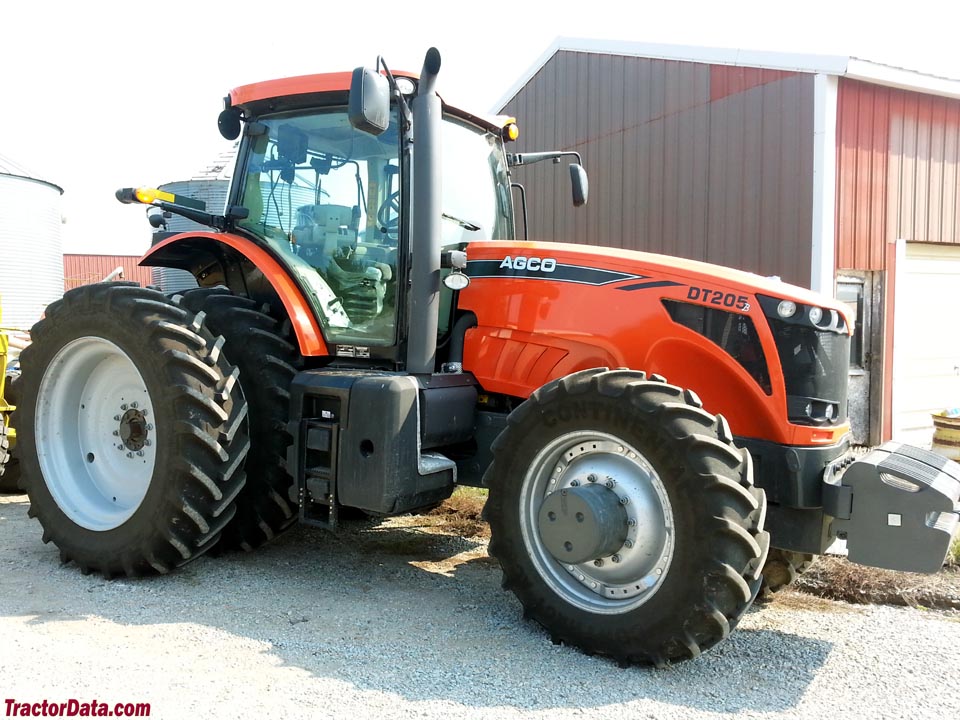

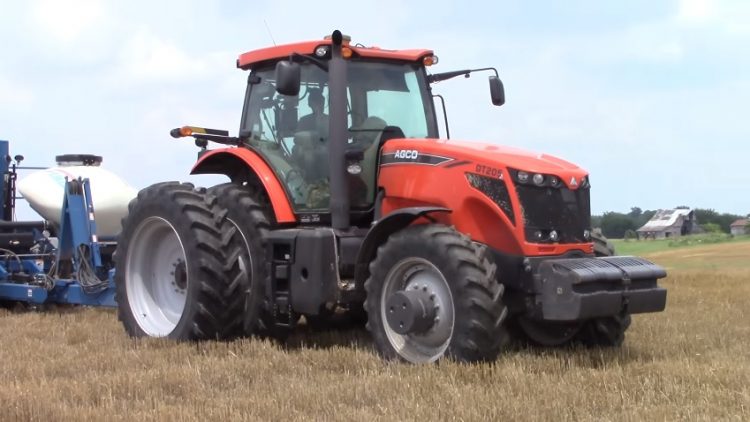

AGCO DT205B
AGCO DT205B — DT-B Series · 213 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
213 hp
Max power
180.7 kW
Weight
10999 kg
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price was $185,670 in 2009Reference
The AGCO DT205B is the same as the Massey Ferguson 8650.Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockfull locking electro-hydraulic front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional heated seat, power adjustable mirrors, and automatic temperature control. ISOBUS 11783 compatible. Auto-Guide optional.Reference
Engine
AGCO SISU POWER 8.4L 6-cyl dieselReference
Fuel tank590.1 LReference
Fuel tank690.0 LReference
Exhaust fluid (DEF)29.9 LReference
Engine179.0 kWReference
Drawbar (tested)134.3 kWReference
AGCO SISU POWER 84CTAReference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
The engine uses AGCO's e3 selective catalytic reduction (SCR) system to reduce nitrogen oxides (NOx). The system uses a diesel exhaust fluid that is injected into the exhaust gas. The engine could optionally be equipped with an exhaust gas recirculation (EGR) system in place of SCR.Reference
Displacement8.4 LReference
Bore/Stroke111 x 145 mmReference
EmissionsTier IIIReference
Emission controlselective catalytic reduction (SCR)Reference
Emission controlexhaust gas recirculation optional (EGR)Reference
Power179.0 kWReference
Maximum Power201.3 kWReference
Fuel systemhigh-pressure common railReference
Pre-heatingthermostartReference
Compression16.7:1Reference
Rated RPM2200Reference
Torque1185.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Max power180.7 kWReference
Power at rated engine speed158.6 kWReference
Max power134.3 kWReference
Max power186.4 kWReference
Power at rated engine speed161.2 kWReference
Max power130.6 kWReference
Transmission
continuously variable transmissionReference
TransmissionPowerMaxx CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)152.9 kWReference
PTO (tested)186.4 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4 to 6Reference
SCV flow99.9 lpmReference
Total flow174.9 lpmReference
Rear Type3Reference
Rear Type4Reference
Rear lift (at ends)12002 kgReference
Rear lift (at 24"/610mm)9678 kgReference
Front Hitch3Reference
Front lift (at ends)4998 kgReference
DrawbarCategory 3Reference
DrawbarCategory 3 Heavy DutyReference
DrawbarCategory 4Reference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type1000E/1000 (1.75)Reference
Engine RPM1000@1970Reference
Engine RPM1000E@1605Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Power at rated PTO speed173.7 kWReference
Power at rated PTO speed178.2 kWReference
Dimensions
Wheelbase310 cmReference
Weight10999 kgReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Optional tires (ag)Front: 420/85R30. Rear: 520/85R42Reference
Optional tires (ag)Front: 420/90R30. Rear: 520/85R42Reference
Optional tires (ag)Front: 380/85R34. Rear: 520/85R42Reference
Optional tires (ag)Front: 380/85R34. Rear: 480/85R46Reference
Optional tires (ag)Front: 420/85R34. Rear: 520/85R46Reference
Optional tires (ag)Front: 480/70R34. Rear: 520/85R46Reference
Optional tires (ag)Front: 420/85R34. Rear: 480/80R50Reference
Optional tires (ag)Front: 480/70R34. Rear: 480/80R50Reference
Optional tires (ag)Front: 320/85R38. Rear: 320/90R54Reference
Length547 cmReference
Height (cab)358 cmReference
Shipping weight10999 kgReference
Max weight17640 kgReference
Front axleSuspension optionalReference
Bar rear axle109 by 2997 mmReference
Bar rear axle109 by 2667 mmReference
Rear tread148 to 303 cmReference
AGCO DT205B attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps240Reference
Battery volts12Reference
Test results
OECD 2496: SCR diesel CVT 4WDReference
OECD 2557: EGR diesel CVT 4WDReference
SCR diesel CVT 4WDOctober 2008 - February 2009, Link: OCED Tractor Test 2496 fileReference
PTO performanceReference
Fuel use45.8 l/hourReference
Fuel use43.9 l/hourReference
Drawbar performanceReference
Pull at 7.6 KPHReference
Max pull12650 kgReference
Pull at 3.9 KPHReference
EGR diesel CVT 4WDOctober 2009 - March 2010, Link: OCED Tractor Test 2557 fileReference
Fuel use53.0 l/hourReference
Fuel use51.1 l/hourReference
Fuel use52.2 l/hourReference
Pull at 7.5 KPHReference
Max pull12306 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
