Tractor · 2005Unverified

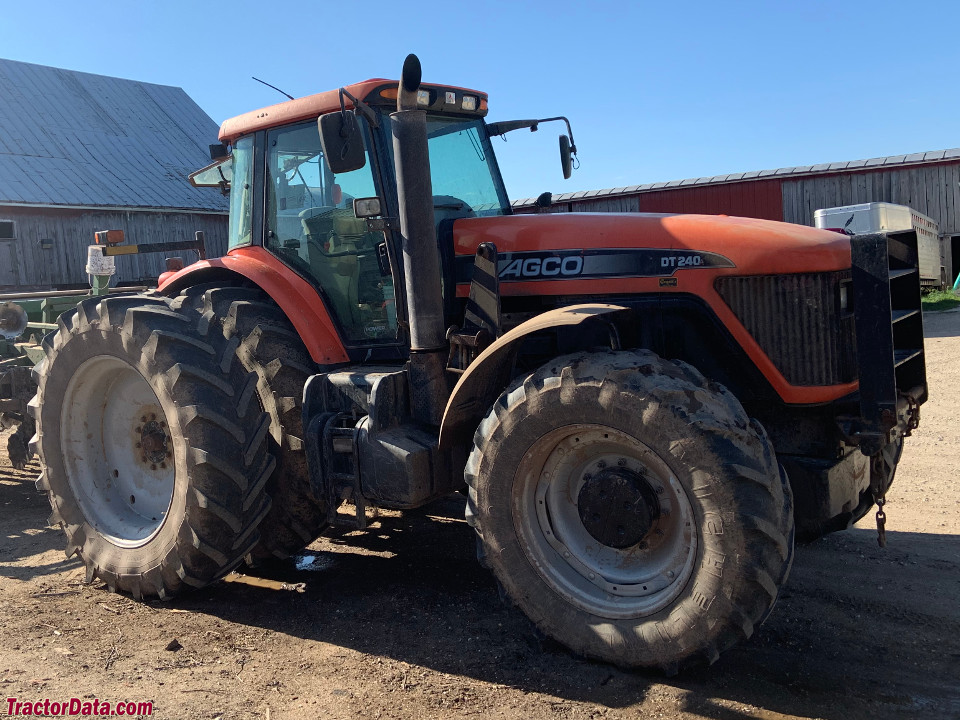

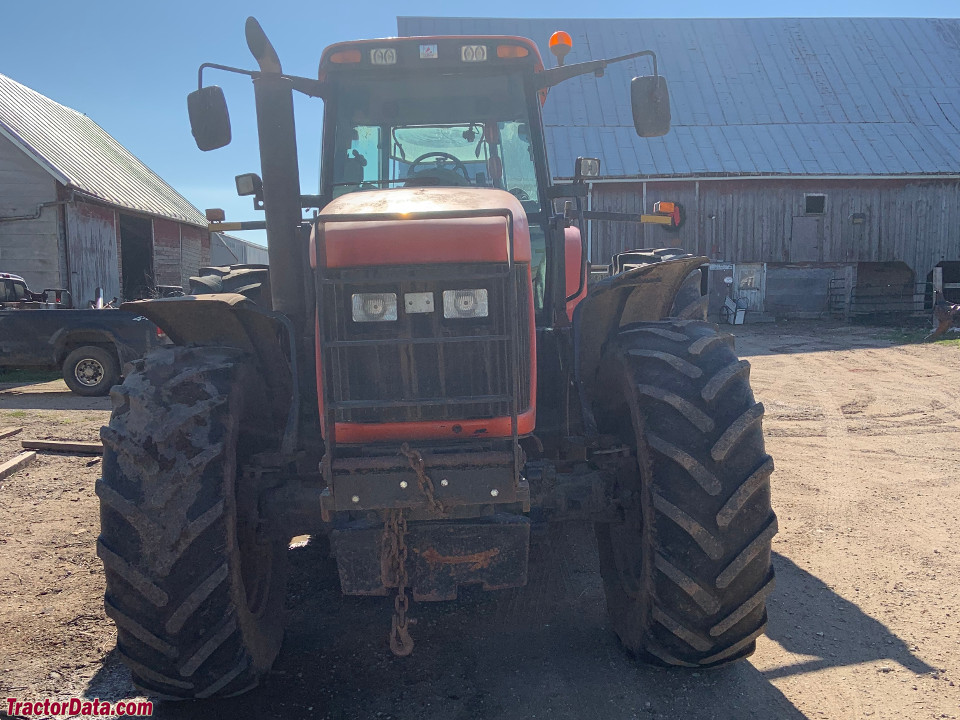

AGCO DT240A

Name: AGCO DT240A
Brand: AGCO

AGCO DT240A — DT-A Series · 246 hp. Reference specifications; pending source verification.

The AGCO DT240A is a tractor with a rated output of 246 hp, categorising it among higher-powered machines in its class. Production of the DT240A spanned the period from 2005 to 2008. It features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine powering four-wheel drive via a continuously variable transmission. The tractor's listed weight is 9049 kg, suitable for tasks covering areas of approximately 1,500 acres and more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

246 hp

Max power

199.6 kW

Weight

9049 kg

Catalogue coverage

Variants represented

Richest spec table

65 rows

Recorded power

246 hp

Recorded weight

9049 kg

Transmissions

PowerMaxx CVT

Production years

2005-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAGCOReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard with optional pneumatic suspension. Datatronics 3, Fieldstar, and Auto-Guide compatible.Reference

Variants

8480similar Massey Ferguson modelReference

Engine

Sisu Diesel 8.4L 6-cyl dieselReference

Fuel tank599.9 LReference

Engine216.3 kWReference

Drawbar (tested)157.3 kWReference

Sisu DieselReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooledReference

Displacement8.4 LReference

Bore/Stroke111 x 145 mmReference

EmissionsTier IIReference

Power216.3 kWReference

Air cleanertwo paper elementsReference

Pre-heatingthermostartReference

Rated RPM2200Reference

Starter volts12Reference

Max power199.6 kWReference

Power at rated engine speed183.7 kWReference

Max power157.3 kWReference

Transmission

continuously variable transmissionReference

TransmissionPowerMaxx CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverse (two-range)Reference

PTO & Hydraulics

PTO (claimed)179.0 kWReference

PTO (tested)199.6 kWReference

Typeclosed center pressure flow compensated (PFC)Reference

Pressure200.0 barReference

Valves4 or 5Reference

Total flow147.6 lpmReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)6531 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Power at rated PTO speed198.0 kWReference

Dimensions

Wheelbase307 cmReference

Weight9049 kgReference

Length523 cmReference

Height309 cmReference

Shipping weight9049 kgReference

Front axleHydraMaxx optionalReference

DT240A Serial Numbers

Location:Rear of tractorReference

2005P001001Reference

2006R001001Reference

2007S001001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Test results

Diesel CVT 4WDMay 2005 - July 2005, Link: OCED Tractor Test 2324 fileReference

PTO performanceReference

Fuel use58.3 l/hourReference

Fuel use57.9 l/hourReference

Fuel use62.5 l/hourReference

Drawbar performanceReference

Fuel use58.7 l/hourReference

Pull at 7.9 KPHReference

Max pull13043 kgReference

Pull at 4.0 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
