Tractor · 2004Unverified

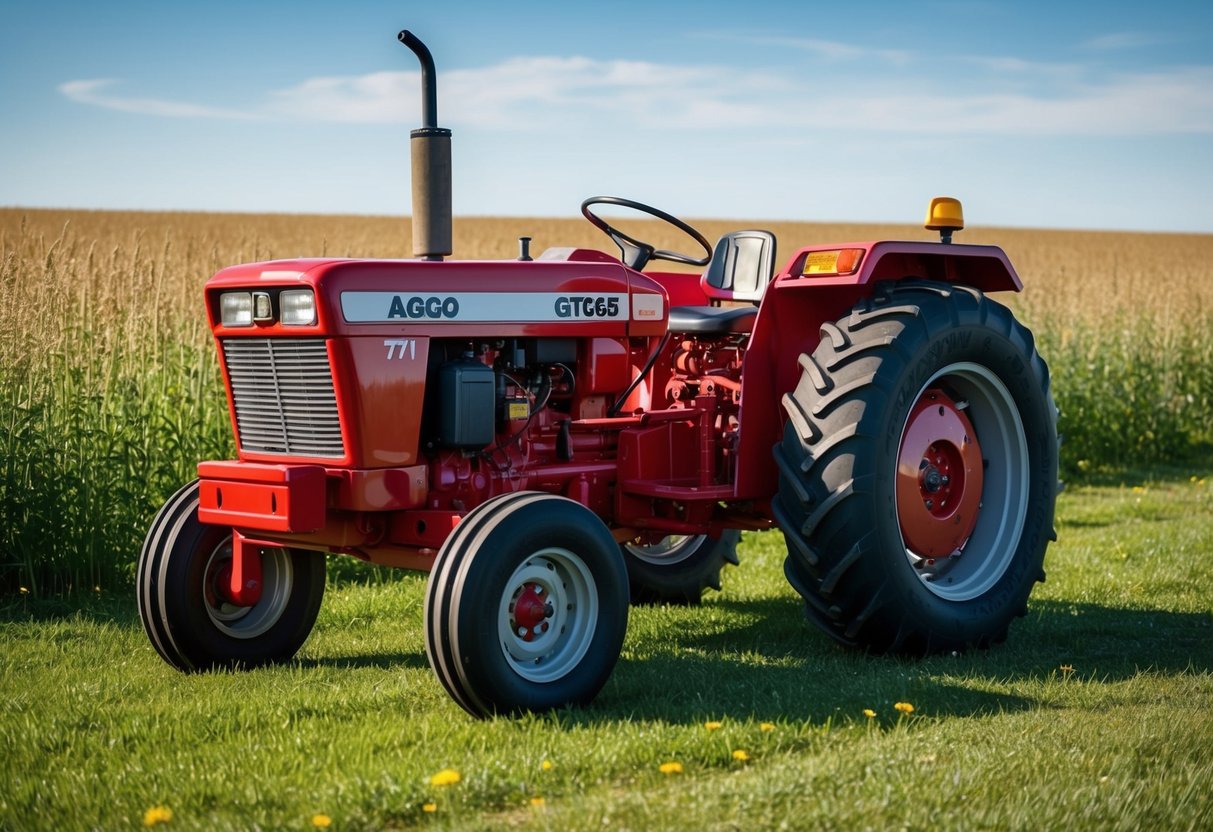

AGCO GT65
AGCO GT65 — GT Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
5335 to 6350 pounds
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
Dorado 76similar SAME modelReference
Engine
SAME Deutz-Fahr 4.0L 4-cyl dieselReference
Fuel tank89.7 LReference
Engine52.9 kWReference
SAME Deutz-FahrReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power52.9 kWReference
Air cleanerdry elementReference
Rated RPM2200Reference
Starter volts12Reference
Transmission
16-speedReference
Transmissionsynchro-shuttleReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
Typeopen centerReference
Pump flow53.0 lpmReference
Total flow85.9 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1596 kgReference
Rear ArmsfixedReference
Rear ArmstelescopicReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1967Reference
Engine RPM1000@2043Reference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase218 cmReference
Weight5335 to 6350 poundsReference
Length385 cmReference
Width194 cmReference
Height269 cmReference
2WD Front tread138 to 168 cmReference
4WD Front tread146 to 175 cmReference
Rear tread139 to 189 cmReference
2WD ROPS2419 kgReference
4WD ROPS2639 kgReference
2WD Cab2659 kgReference
4WD Cab2880 kgReference
AGCO GT65 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
