Tractor · 2004Unverified

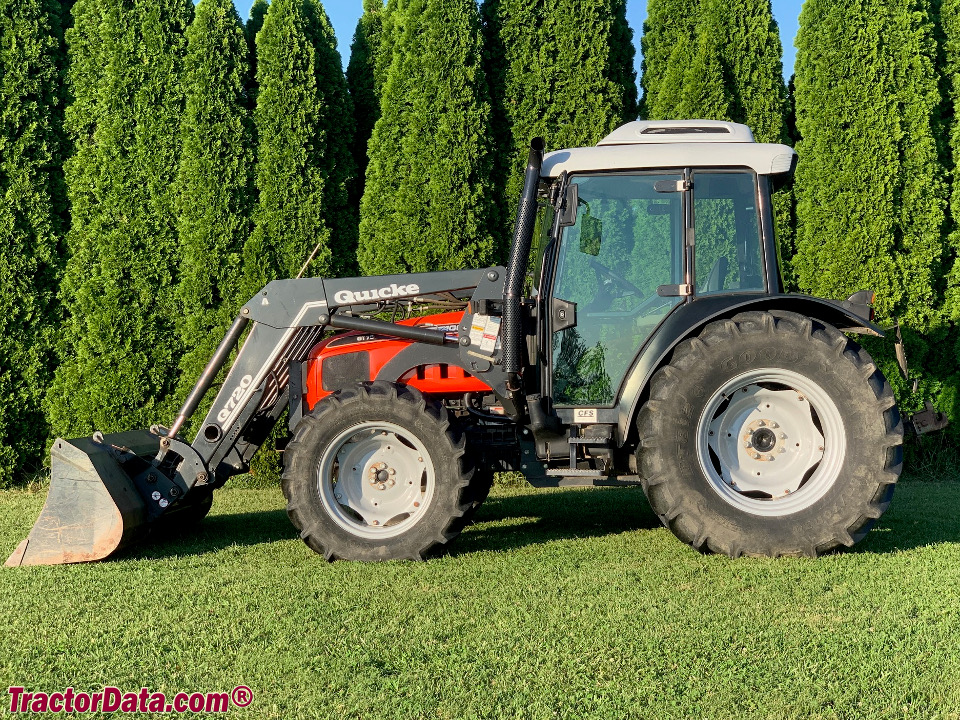

AGCO GT75
AGCO GT75 — GT Series · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
5511 to 6525 pounds
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerSAMEReference
Utility tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Variants
Dorado 86similar SAME modelReference
Engine
SAME Deutz-Fahr 4.0L 4-cyl dieselReference
Fuel tank89.7 LReference
Engine61.9 kWReference
SAME Deutz-FahrReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke105 x 115 mmReference
Power61.9 kWReference
Air cleanerdry elementReference
Compression16.0:1Reference
Rated RPM2200Reference
Torque321.4 NmReference
Torque RPM1299Reference
Starter volts12Reference
Power at rated engine speed56.9 kWReference
Transmission
16-speedReference
Transmissionsynchro-shuttleReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)55.2 kWReference
PTO (tested)56.9 kWReference
Typeopen centerReference
Pump flow53.0 lpmReference
Total flow85.9 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1596 kgReference
Rear ArmsfixedReference
Rear ArmstelescopicReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1967Reference
Engine RPM1000@2043Reference
Power at rated PTO speed57.3 kWReference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase218 cmReference
Weight5511 to 6525 poundsReference
Length385 cmReference
Width194 cmReference
Height269 cmReference
2WD Front tread138 to 168 cmReference
4WD Front tread146 to 175 cmReference
Rear tread139 to 189 cmReference
2WD ROPS2499 kgReference
4WD ROPS2719 kgReference
2WD Cab2739 kgReference
4WD Cab2959 kgReference
AGCO GT75 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 16-speed 4WDMay 20 - 26, 2005Link: Nebraska Tractor Test 1850 fileReference
PTO performanceReference
Fuel use18.5 l/hourReference
Fuel use17.8 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
