Tractor · 2006Unverified

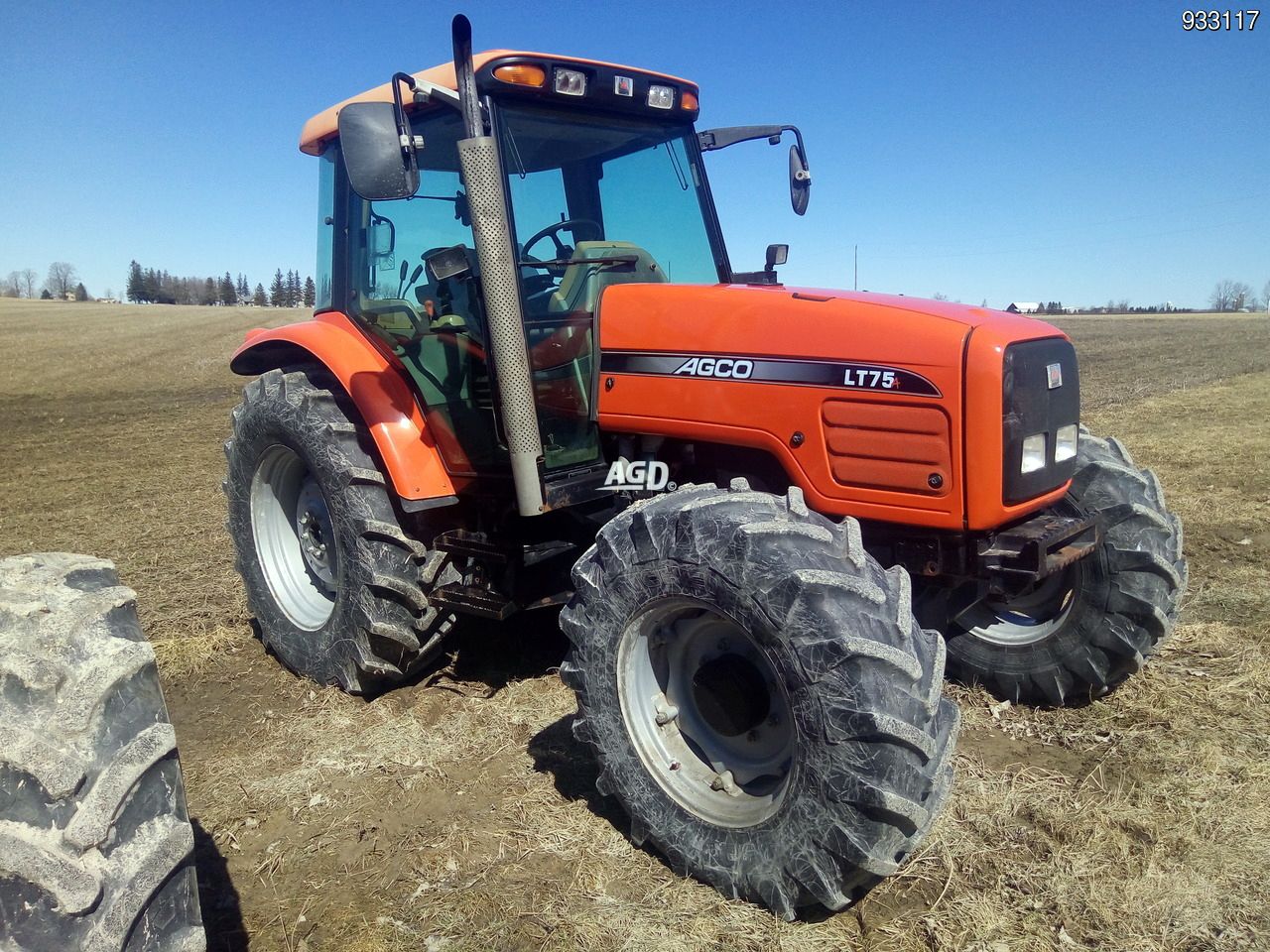

AGCO LT75A
AGCO LT75A — LT-A Series · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Max power
65.0 kW
Weight
8820 to 9940 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Utility tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Sisu 4.4L 4-cyl dieselReference
Fuel tank129.8 LReference
Fuel tank186.6 LReference
Engine74.6 kWReference
SisuReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
Power74.6 kWReference
Air cleanerpaper element with water separatorReference
Compression18.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power65.0 kWReference
Power at rated engine speed58.5 kWReference
Transmission
16-speedReference
TransmissionpowershiftReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
PTO (tested)65.0 kWReference
Typeopen centerReference
Typeclosed optionalReference
Valves2 to 4Reference
Total flow98.4 lpmReference
Total flow109.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)3545 kgReference
Rear lift (at 24"/610mm)4168 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase273 cmReference
Weight8820 to 9940 poundsReference
Front tire14.9R24Reference
Rear tire18.4R34Reference
Ag front14.9R24Reference
Ag rear18.4R34Reference
Length420 cmReference
Height (Folded ROPS)158 cmReference
Height (cab)279 cmReference
Weight4000 kgReference
Weight4508 kgReference
Electrical
GroundnegativeReference
Test results
Diesel September 2006Link: Nebraska Tractor Test 1883 fileReference
PTO performanceReference
Fuel use20.1 l/hourReference
Fuel use19.3 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
