Tractor · 2008Unverified

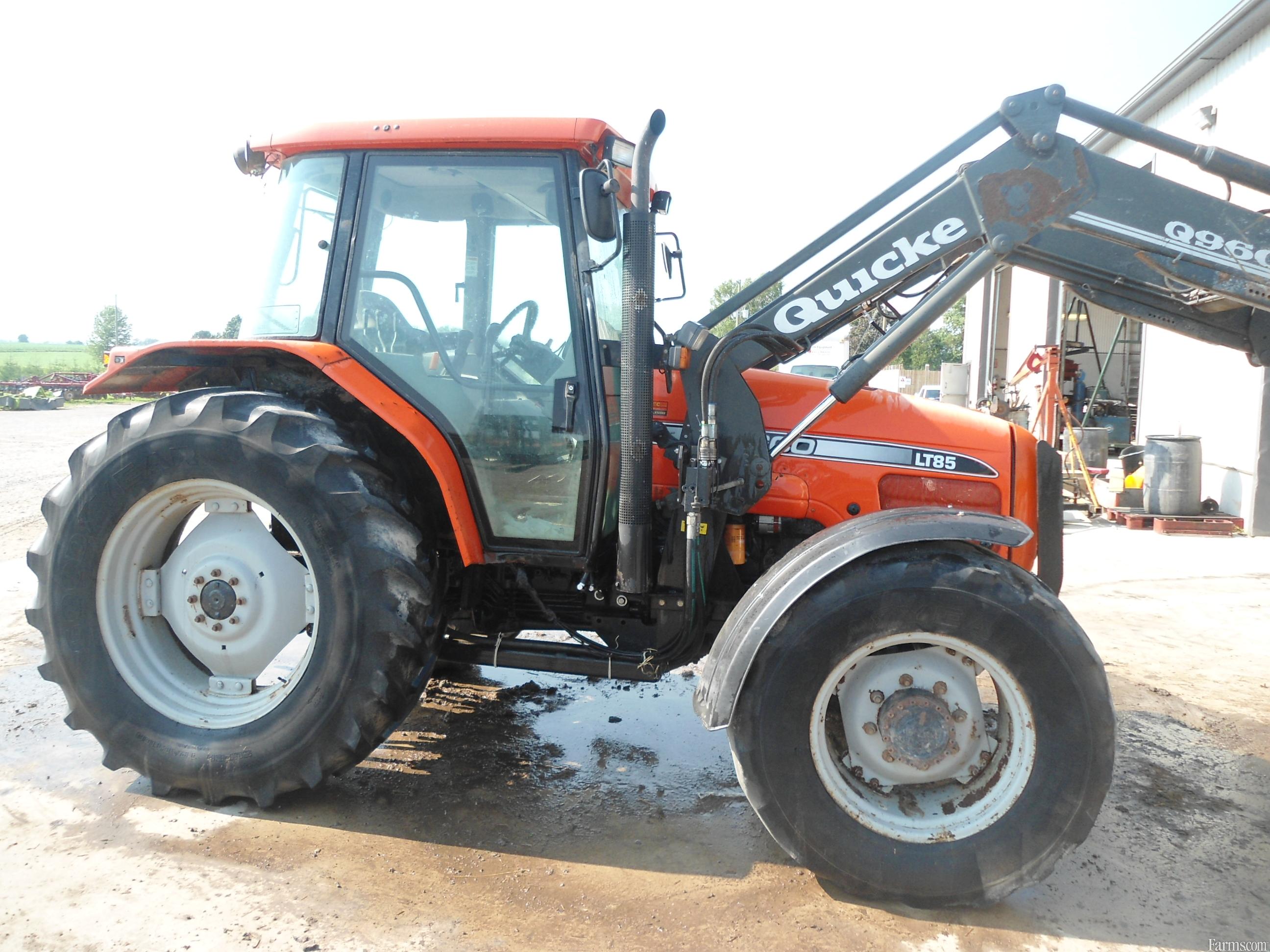

AGCO LT85A
AGCO LT85A — LT-A Series · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Max power
55.2 kW
Weight
8958 to 10115 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Utility tractorReference
Built in Beauvais, FranceReference
Original price$40,865 (2009 ROPS 2WD )Reference
Original price$57,290 (2009 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
AGCO SisuPower 4.4L 4-cyl dieselReference
Fuel tank143.8 LReference
Fuel tank189.2 LReference
Engine (gross)78.3 kWReference
Drawbar (tested)55.2 kWReference
AGCO SisuPower 44CTAReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IIIReference
Power (gross)78.3 kWReference
Fuel systemhigh pressure common railReference
Cooling systemviscous fan driveReference
Air cleanerdryReference
Pre-heatinggrid heaterReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Power at rated engine speed71.7 kWReference
Max power55.2 kWReference
Transmission
16-speed partial power shiftReference
TransmissionAuto-4Reference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Four power shift gears in four ranges with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)71.7 kWReference
Typeopen centerReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow98.4 lpmReference
Pump flow56.8 lpmReference
Pump flow109.8 lpmReference
Rear TypeIIReference
Controlupper link draft sensingReference
Rear lift (at 24"/610mm)3545 kgReference
Rear lift (at 24"/610mm)4167 kgReference
Rear PTOindependentReference
Clutchelectro hydraulicReference
Rear PTO Type540/1000Reference
Power at rated PTO speed82.1 kWReference
Dimensions
Wheelbase266 cmReference
Weight8958 to 10115 poundsReference
Front tire9.5L-15Reference
2WD Rear tire18.4R30Reference
2WD Standard tires (ag)Front: 9.5L-15. Rear: 18.4R30Reference
4WD Standard tires (ag)Front: 13.6R24. Rear: 18.4R30Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4R30Reference
2WD Optional tires (ag)Front: 9.5L-15. Rear: 16.9R34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9R34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4R34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 18.4R34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 16.9R38Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 18.4R38Reference
4WD Optional tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
4WD Optional tires (ag)Front: 14.9R24. Rear: 18.4R34Reference
4WD Optional tires (ag)Front: 13.6R28. Rear: 16.9R38Reference
4WD Optional tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length436 cmReference
Width201 cmReference
Height (ROPS)158 cmReference
Height (cab)276 cmReference
Flange rear axleReference
Front tread154 to 193 cmReference
Front tread154 to 215 cmReference
Rear tread152 to 213 cmReference
2WD ROPS4063 kgReference
4WD ROPS4358 kgReference
2WD Cab4293 kgReference
4WD Cab4588 kgReference
AGCO LT85A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps80Reference
Cab Charging amps120Reference
Battery volts12Reference
Attachment overview
AGCO FL40A loaderReference
AGCO FL45A loaderReference
AGCO FL400A loaderReference
Test results
Diesel 16-speed 4WDFebruary 2009 - March 2009, Link: OCED Tractor Test 2514 fileReference
PTO performanceReference
Fuel use22.7 l/hourReference
Fuel use23.1 l/hourReference
Drawbar performanceReference
Fuel use20.4 l/hourReference
Gear 3A used for power test.Reference
Max pull4740 kgReference
Gear 1A used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
