Tractor · 2008Unverified
AGCO LT95A
AGCO LT95A — LT-A Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Max power
83.8 kW
Weight
10086 to 11243 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Utility tractorReference
Built in Beauvais, FranceReference
Original price$45,415 (2009 ROPS 2WD )Reference
Original price$61,840 (2009 Cab 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Wet disc brakesReference
Trailer brakeshydraulicReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
AGCO SisuPower 4.4L 4-cyl dieselReference
Fuel tank143.8 LReference
Fuel tank189.2 LReference
Engine (gross)85.8 kWReference
AGCO SisuPower 44CTAReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier IIIReference
Power (gross)85.8 kWReference
Fuel systemhigh pressure common railReference
Cooling systemviscous fan driveReference
Pre-heatinggrid heaterReference
Compression18.5:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Max power83.8 kWReference
Power at rated engine speed74.0 kWReference
Transmission
16-speed partial power shiftReference
TransmissionAuto-4Reference
Typepartial power shiftReference
Gears16 forward and reverseReference
Clutchelectro-hydraulic wet discReference
Four power shift gears in four ranges with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)70.8 kWReference
PTO (tested)83.8 kWReference
Typeopen centerReference
Typeclosed centerReference
Pressure200.0 barReference
Valves2 to 4Reference
Pump flow98.4 lpmReference
Pump flow56.8 lpmReference
Pump flow109.8 lpmReference
Rear TypeIIReference
Controlelectronic lower-link draft sensingReference
Rear lift (at 24"/610mm)3545 kgReference
Rear lift (at 24"/610mm)4167 kgReference
Rear PTOindependentReference
Clutchelectro hydraulicReference
Rear PTO Type540/1000Reference
Power at rated PTO speed83.2 kWReference
Dimensions
Wheelbase266 cmReference
Weight10086 to 11243 poundsReference
Front tire9.5L-15Reference
2WD Rear tire18.4R30Reference
2WD Standard tires (ag)Front: 9.5L-15. Rear: 18.4R30Reference
4WD Standard tires (ag)Front: 13.6R24. Rear: 18.4R30Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4R30Reference
2WD Optional tires (ag)Front: 9.5L-15. Rear: 16.9R34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 16.9R34Reference
2WD Optional tires (ag)Front: 10.00-16. Rear: 18.4R34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 18.4R34Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 16.9R38Reference
2WD Optional tires (ag)Front: 11.00-16. Rear: 18.4R38Reference
4WD Optional tires (ag)Front: 13.6R24. Rear: 16.9R34Reference
4WD Optional tires (ag)Front: 14.9R24. Rear: 18.4R34Reference
4WD Optional tires (ag)Front: 13.6R28. Rear: 16.9R38Reference
4WD Optional tires (ag)Front: 14.9R28. Rear: 18.4R38Reference
Length436 cmReference
Width201 cmReference
Height (ROPS)158 cmReference
Height (cab)276 cmReference
Flange rear axleReference
Front tread154 to 193 cmReference
Front tread154 to 215 cmReference
Rear tread152 to 213 cmReference
2WD ROPS4575 kgReference
4WD ROPS4869 kgReference
2WD Cab4804 kgReference
4WD Cab5099 kgReference
AGCO LT95A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps80Reference
Ccab Charging amps120Reference
Battery volts12Reference
Attachment overview

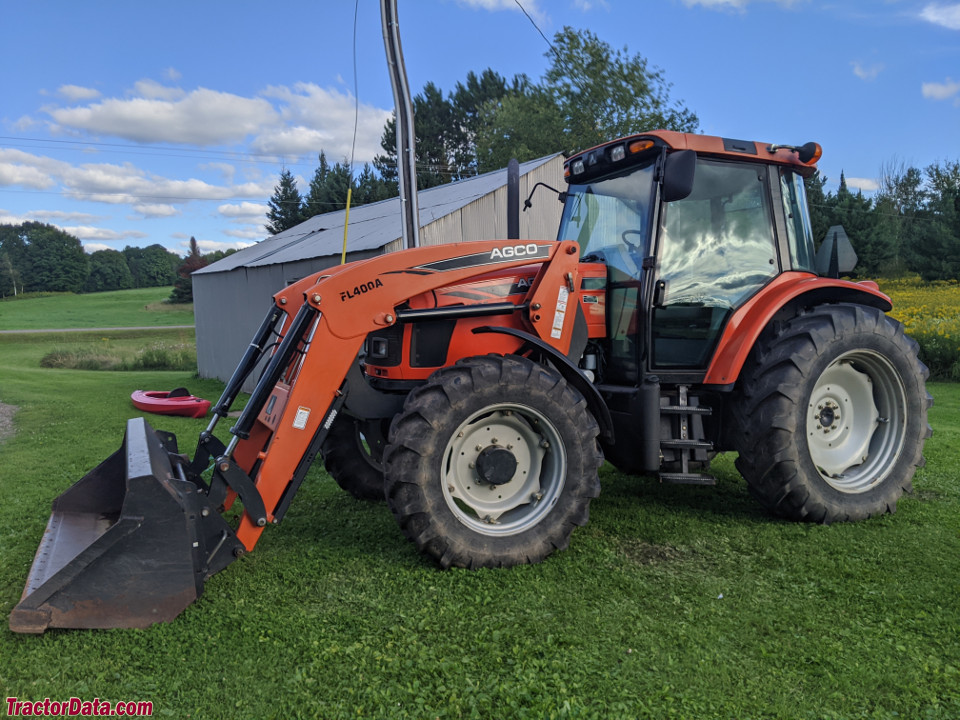

AGCO FL40A loaderReference
AGCO FL45A loaderReference
AGCO FL400A loaderReference
Test results
Diesel 16-speed 4WDJune 11 - 24, 2008Link: Nebraska Tractor Test 1932 fileReference
PTO performanceReference
Fuel use25.4 l/hourReference
Fuel use25.0 l/hourReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
