Tractor · 2006Unverified

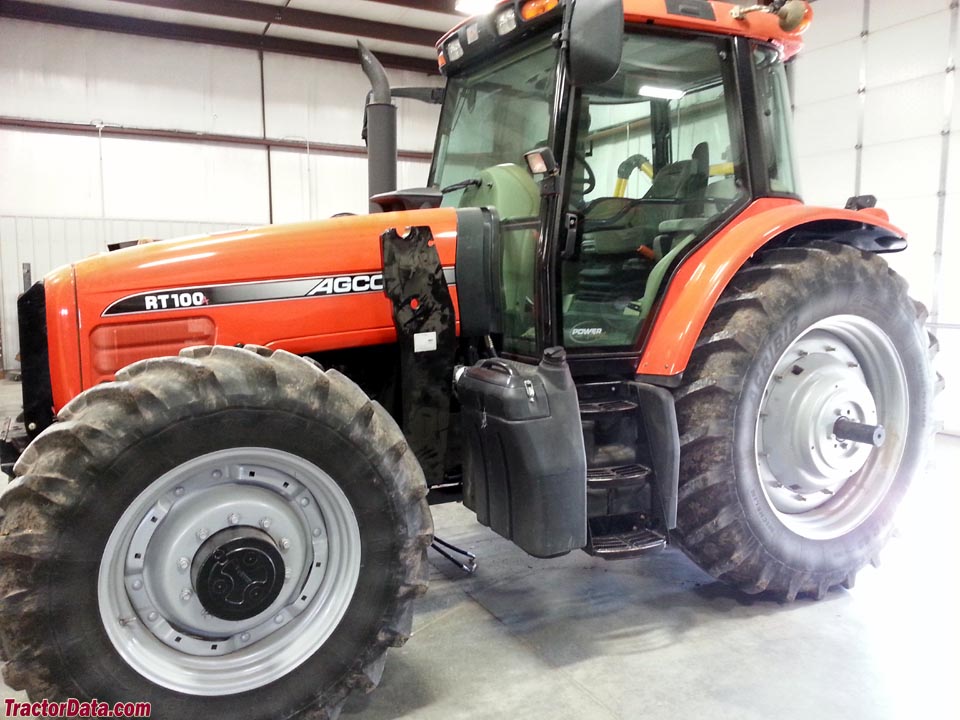

AGCO RT100A
AGCO RT100A — RT-A Series · 108 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
108 hp
Max power
87.8 kW
Weight
6849 kg
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Sisu 6.6L 6-cyl dieselReference
Fuel tank264.9 LReference
Engine95.4 kWReference
Drawbar (tested)66.9 kWReference
SisuReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Power95.4 kWReference
Air cleanerdual paper elementsReference
Compression18.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Max power87.8 kWReference
Power at rated engine speed80.4 kWReference
Max power66.9 kWReference
Transmission
continuously variable transmissionReference
32-speed partial power shiftReference
TransmissionPowerMaxx CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
TransmissionQuadraShiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
PTO (tested)87.8 kWReference
Typeclosed center PFCReference
Valves3 or 4Reference
Pump flow109.8 lpmReference
Rear TypeII, IIINReference
Rear lift3855 kgReference
Rear lift4762 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed86.6 kWReference
Dimensions
Wheelbase278 cmReference
Weight6849 kgReference
Operating weight6849 kgReference
Front tread155 to 226 cmReference
Rear tread161 to 280 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel CVT 4WDMay 30 - June 1, 2007Link: OCED Tractor Test 569 fileReference
PTO performanceReference
Fuel use25.4 l/hourReference
Fuel use26.9 l/hourReference
Fuel use26.1 l/hourReference
Drawbar performanceReference
Pull at 6.71 KPHReference
Max pull6869 kgReference
Pull at 2.91 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
