Tractor · 2007Unverified

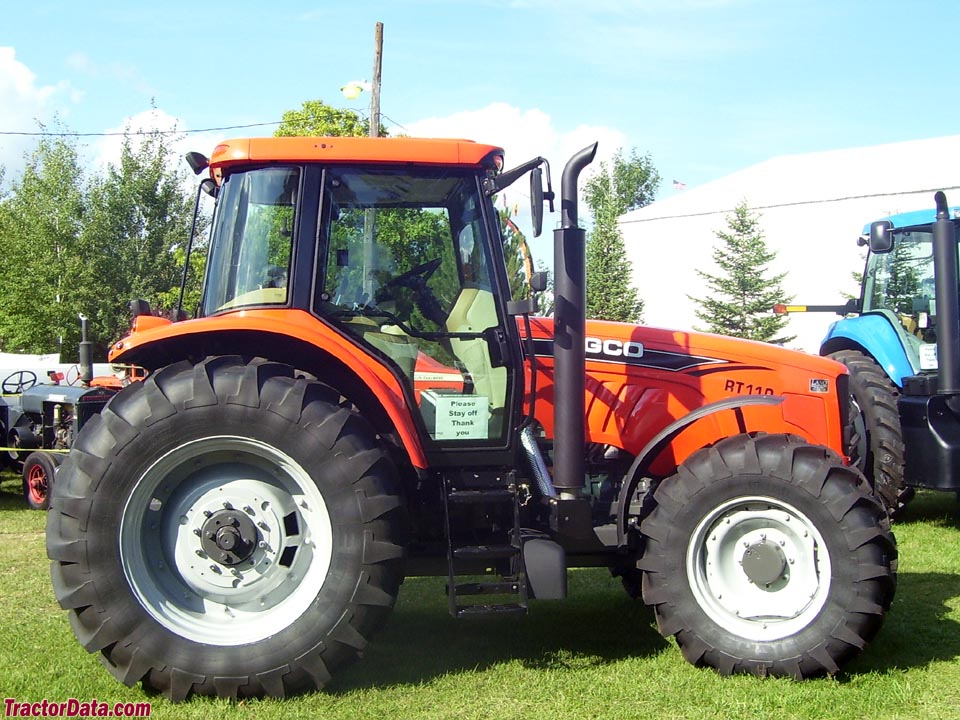

AGCO RT110A
AGCO RT110A — RT-A Series · 117 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
117 hp
Max power
105.4 kW
Weight
12200 to 15100 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$75,354 (2009 Auto-6 2WD )Reference
Original price$84,579 (2009 Auto-6 4WD )Reference
Original price$91,509 ( CVT 4WD )Reference
Two- or four-wheel driveReference
Differential lockfront and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.Reference
Engine
SisuDiesel 6.6L 6-cyl dieselReference
Fuel tank378.5 LReference
Engine100.7 kWReference
Drawbar (tested)66.6 kWReference
SisuDiesel 66CTAReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.6 LReference
EmissionsTier IIIReference
Power100.7 kWReference
Maximum Power119.3 kWReference
Fuel systemelectronic common rail fuel injectionReference
Air cleanerdry cartridgeReference
Pre-heatinggrid heaterReference
Rated RPM2200Reference
Starter volts12Reference
Max power105.4 kWReference
Power at rated engine speed87.2 kWReference
Max power66.6 kWReference
Transmission
24-speed partial power shiftReference
continuously variable transmissionReference
TransmissionAuto-6Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
Clutchwet discReference
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.Reference
TransmissionPowerMaxx CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (two-range)Reference
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH.Reference
PTO & Hydraulics
PTO (claimed)82.0 kWReference
PTO (tested)105.4 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves2 to 4Reference
Total flow109.8 lpmReference
Rear Type2Reference
Controlelectronic position and draft controlReference
Rear lift (at 24"/610mm)4259 kgReference
CVT Rear lift (at 24"/610mm)4762 kgReference
Front HitchoptionalReference
Front lift3991 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000/1000EReference
Front PTOoptionalReference
Front PTO Type1000Reference
Power at rated PTO speed102.5 kWReference
Dimensions
2WD Wheelbase292 cmReference
4WD Wheelbase288 cmReference
Weight12200 to 15100 poundsReference
Front tire10.00x16Reference
Rear tire18.4R42 (2WD)Reference
Standard tires (ag)Front: 10.00x16. Rear: 18.4R42 (2WD)Reference
Standard tires (ag)Front: 14.9R30. Rear: 18.4R42 (4WD)Reference
2WD Length464 cmReference
4WD Length434 cmReference
2WD Width154 cmReference
4WD Width199 cmReference
2WD Height (cab)361 cmReference
4WD Height (cab)290 cmReference
4WD Shipping weight5533 kgReference
CVT Shipping weight6849 kgReference
Flange rear axleReference
Bar rear axle82 by 2227 mmReference
Bar rear axle82 by 2870 mmReference
CVT94 by 2468 mm Bar rear axle3.74 by 97.2 inchesReference
CVT958 by 2999 mm Bar rear axle37.74 by 118.1 inchesReference
2WD Front tread162 to 202 cmReference
4WD Front tread162 to 202 cmReference
Rear tread156 to 204 cmReference
AGCO RT110A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps150Reference
Batteries2Reference
Battery CCA550Reference
Battery volts12Reference
Attachment overview
AGCO FL65 loaderReference
AGCO FL60 loaderReference
Test results
Diesel 24-speed 4WDNovember 2007 - January 2008, Link: OCED Tractor Test 2411 fileReference
PTO performanceReference
Fuel use29.5 l/hourReference
Fuel use28.8 l/hourReference
Fuel use29.9 l/hourReference
Drawbar performanceReference
Fuel use25.7 l/hourReference
Gear 3A used for power test.Reference
Max pull5751 kgReference
Gear 1C used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
