Tractor · 2002Unverified

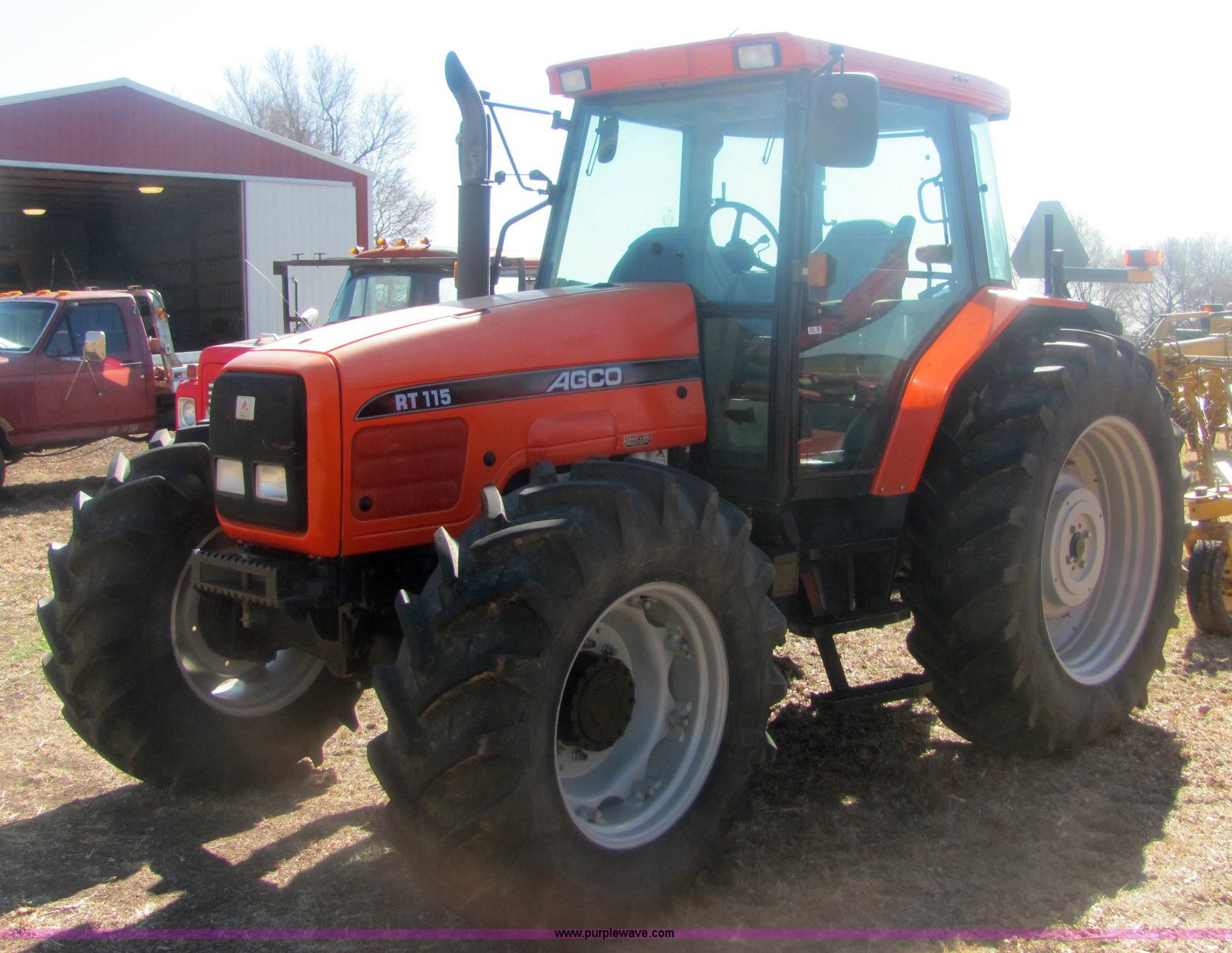

AGCO RT115
AGCO RT115 — RT Series · 116 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
116 hp
Max power
90.5 kW
Weight
8450 to 12900 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Cummins 5.9L 6-cyl dieselReference
Fuel tank159.0 LReference
Fuel tank223.3 LReference
Drawbar (tested)77.6 kWReference
Cummins B5.9TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Compression17.4:1Reference
Rated RPM2200Reference
Torque523.7 NmReference
Torque RPM1547Reference
Starter volts12Reference
Max power90.5 kWReference
Power at rated engine speed86.7 kWReference
Max power77.6 kWReference
Transmission
32-speed partial power shiftReference
TransmissionQuadrashiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
Four power shift gears in eight synchronized ranges.Reference
PTO & Hydraulics
PTO (claimed)85.8 kWReference
PTO (tested)90.5 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Pump flow109.8 lpmReference
SCV flow104.8 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)4082 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed89.8 kWReference
Dimensions
Wheelbase286 cmReference
Weight8450 to 12900 poundsReference
Length439 cmReference
Width223 cmReference
Height (cab)276 cmReference
2WD ROPS Shipping3832 kgReference
4WD ROPS Shipping4195 kgReference
2WD Cab Shipping4717 kgReference
4WD Cab Shipping5116 kgReference
Operating5851 kgReference
RT115 Serial Numbers
Location:Rear of tractor.Reference
2002L001001Reference
2003M001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDApril 2002 - June 2002, Link: OCED Tractor Test 2000 fileReference
PTO performanceReference
Fuel use26.9 l/hourReference
Fuel use27.6 l/hourReference
Fuel use27.3 l/hourReference
Drawbar performanceReference
Gear 2LA used for power test.Reference
Max pull4821 kgReference
Gear 2TD used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
