Tractor · 2004Unverified

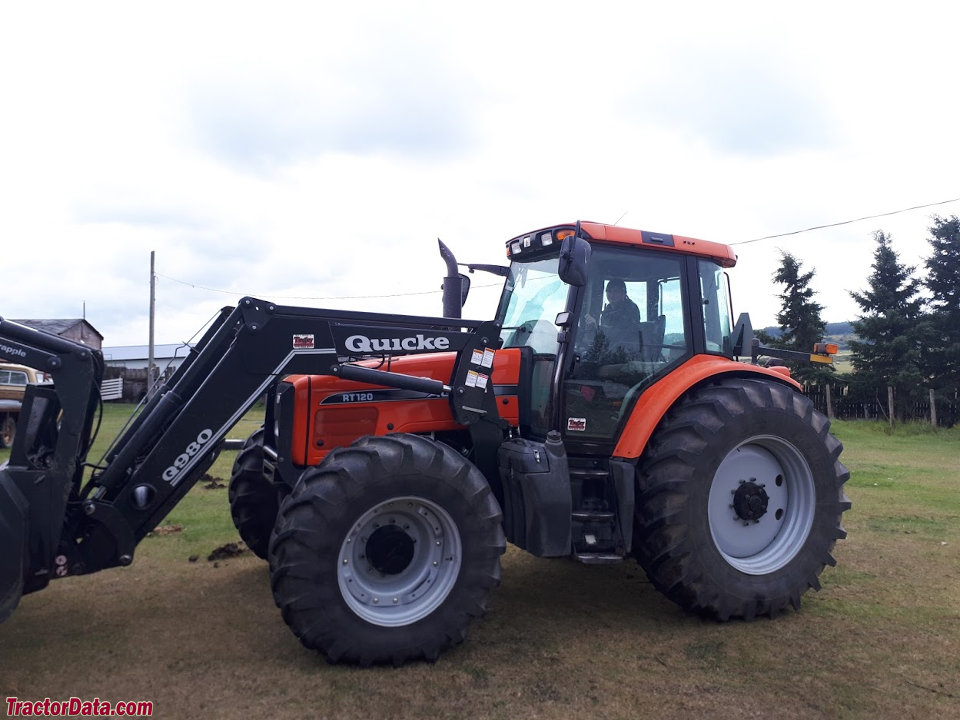

AGCO RT120

Name: AGCO RT120
Brand: AGCO

AGCO RT120 — RT Series · 120 hp. Reference specifications; pending source verification.

The AGCO RT120 is a 120 hp tractor, situated at the higher end of its class in terms of power output. The model was produced over two model years: 2004 and 2005. It features a 6-cylinder turbocharged diesel liquid-cooled engine, paired with four-wheel drive and a continuously variable transmission. Its operating weight ranges from 12059 to 15055 pounds, making it suitable for operations covering 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

120 hp

Max power

91.1 kW

Weight

12059 to 15055 pounds

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

120 hp

Transmissions

32-speed partial power shift

Production years

2004-2005

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAGCOReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic front and rearReference

Steeringhydrostatic powerReference

Hydraulic wet disc brakesReference

Cab standard with optional automatic climate control.Reference

Engine

Cummins 6.7L 6-cyl dieselReference

Fuel tank264.9 LReference

Engine111.9 kWReference

Drawbar (tested)74.8 kWReference

CumminsReference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.7 LReference

Bore/Stroke104 x 132 mmReference

EmissionsTier IIReference

Power111.9 kWReference

Air cleanerdual paper elementsReference

Pre-heatinggrid heaterReference

Compression17.5:1Reference

Rated RPM2200Reference

Starter volts12Reference

Max power91.1 kWReference

Power at rated engine speed89.4 kWReference

Max power74.8 kWReference

Transmission

continuously variable transmissionReference

32-speed partial power shiftReference

TransmissionPowerMaxx CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverse (2-range)Reference

TransmissionQuadraShiftReference

Typepartial power shiftReference

Gears32 forward and reverseReference

Four power shift gears in four ranges.Reference

PTO & Hydraulics

PTO (claimed)89.5 kWReference

PTO (tested)91.1 kWReference

Typeclosed center pressure flow compensating (PFC)Reference

Pressure200.0 barReference

Valves3 or 4Reference

SCV flow109.8 lpmReference

Rear TypeII/IIINReference

Controlelectronic lower-linkReference

Rear lift (at 24"/610mm)4082 kgReference

Rear lift (at 24"/610mm)4762 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOoptionalReference

Power at rated PTO speed89.9 kWReference

Dimensions

Wheelbase278 cmReference

Weight12059 to 15055 poundsReference

Clearance (drawbar)35 cmReference

Front tread161 to 184 cmReference

Rear tread176 to 302 cmReference

Shipping5469 kgReference

Shipping6344 kgReference

Operating6828 kgReference

Ballasted7504 kgReference

AGCO RT120 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps120Reference

Batteries2Reference

Battery volts12Reference

Test results

Diesel CVT 4WDApril 2004 - June 2004, Link: OCED Tractor Test 2235 fileReference

PTO performanceReference

Fuel use30.3 l/hourReference

Fuel use30.7 l/hourReference

Fuel use28.8 l/hourReference

Drawbar performanceReference

Pull at 7.83 KPHReference

Max pull7627 kgReference

Pull at 3.03 KPHReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
