Tractor · 2002Unverified

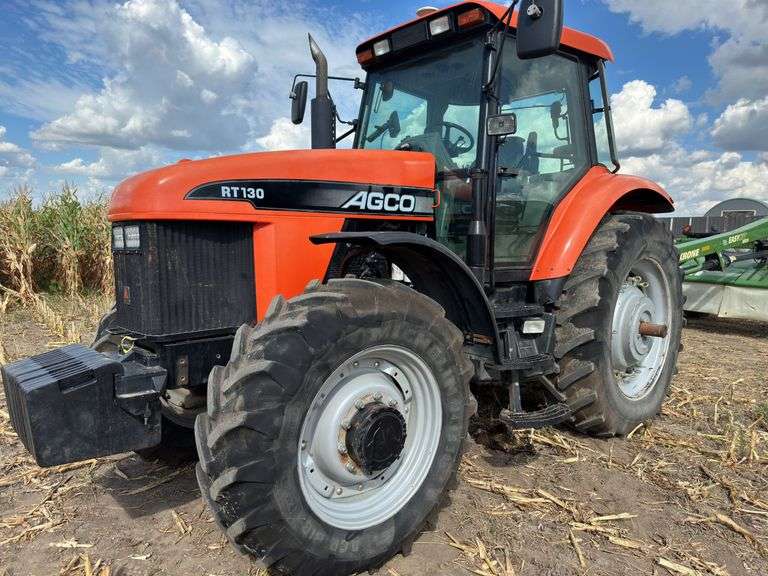

AGCO RT130
AGCO RT130 — RT Series · 133 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
133 hp
Max power
113.2 kW
Weight
14880 to 16894 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard.Reference
Engine
Cummins 5.9L 6-cyl dieselReference
Fuel tank408.8 LReference
Drawbar (tested)81.3 kWReference
Cummins B5.9TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke102 x 120 mmReference
Air cleanertwo paper elementsReference
Compression16.3:1Reference
Rated RPM2200Reference
Torque589.3 NmReference
Torque RPM1498Reference
Starter volts12Reference
Max power113.2 kWReference
Power at rated engine speed99.0 kWReference
Max power81.3 kWReference
Transmission
18-speed full power shiftReference
32-speed partial power shiftReference
Typefull power shiftReference
Gears18 forward and 6 reverseReference
Clutchwet discReference
TransmissionQuadrashiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Four power shift gears in eight synchronized ranges.Reference
PTO & Hydraulics
PTO (claimed)96.9 kWReference
PTO (tested)113.2 kWReference
Typeclosed centerReference
Pressure200.0 barReference
Pump flow109.8 lpmReference
Pump flow147.6 lpmReference
SCV flow104.8 lpmReference
Rear TypeIII/IIINReference
Rear lift (at 24"/610mm)6577 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed105.1 kWReference
Dimensions
Wheelbase282 cmReference
Weight14880 to 16894 poundsReference
Length502 cmReference
Width298 cmReference
Height (cab)304 cmReference
Front tread163 to 205 cmReference
Rear tread154 to 304 cmReference
2WD Shipping6749 kgReference
4WD Shipping7663 kgReference
Operating7271 kgReference
RT130 Serial Numbers
Location:Serial number plate on the rear of the tractor.Reference
2002L001001Reference
2003M001001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Test results
Diesel 32-speed 4WDApril 2002 - June 2002, Link: OCED Tractor Test 2001 fileReference
PTO performanceReference
Fuel use31.4 l/hourReference
Fuel use29.5 l/hourReference
Fuel use30.3 l/hourReference
Drawbar performanceReference
Fuel use28.8 l/hourReference
Gear 1LA used for power test.Reference
Max pull6502 kgReference
Gear 3TA used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
