Tractor · 2006Unverified

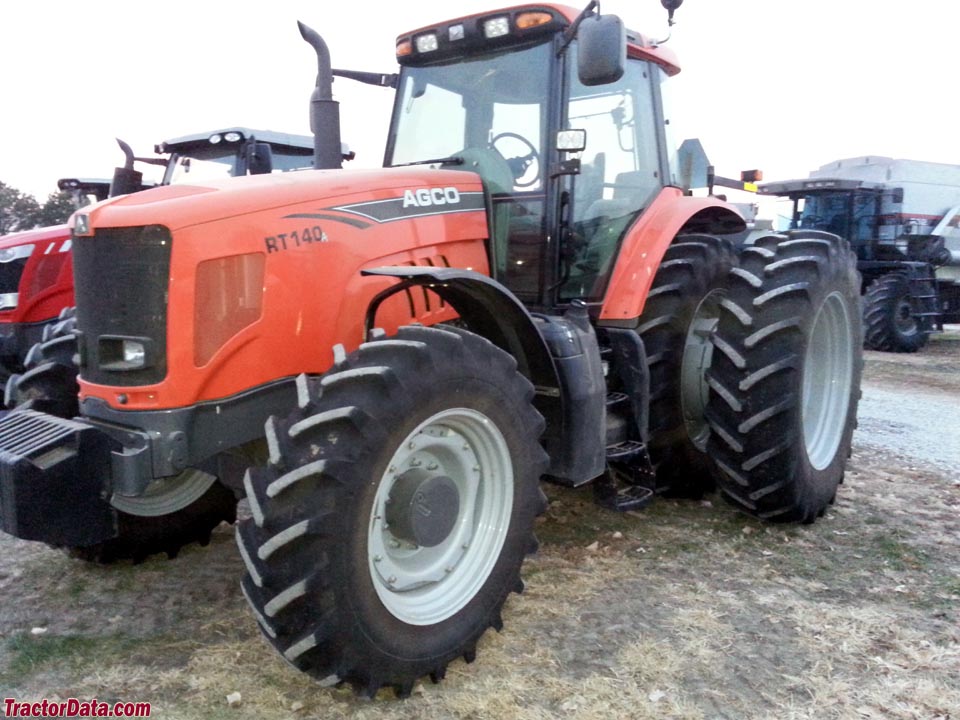

AGCO RT140A
AGCO RT140A — RT-A Series · 141 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
141 hp
Max power
90.6 kW
Weight
14300 to 15100 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price$93,670 (2009 Auto-6 2WD )Reference
Original price$102,895 ( Auto-6 4WD )Reference
Original price$109,893 ( CVT 4WD )Reference
Two- or four-wheel driveReference
Differential lockfront and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.Reference
Engine
SisuDiesel 6.6L 6-cyl dieselReference
Fuel tank378.5 LReference
Engine126.8 kWReference
Drawbar (tested)95.2 kWReference
SisuDiesel 66CTAReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement6.6 LReference
EmissionsTier IIIReference
Power126.8 kWReference
Maximum Power149.1 kWReference
Fuel systemelectronic common rail fuel injectionReference
Air cleanerdry cartridgeReference
Pre-heatinggrid heaterReference
Starter volts12Reference
Power at rated engine speed104.9 kWReference
Max power90.6 kWReference
Max power115.1 kWReference
Power at rated engine speed106.8 kWReference
Max power85.8 kWReference
Power at rated engine speed114.7 kWReference
Max power95.2 kWReference
Max power134.0 kWReference
Max power83.1 kWReference
Transmission
32-speed partial power shiftReference
24-speed partial power shiftReference
continuously variable transmissionReference
TransmissionQuadraShiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Clutchwet discReference
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.Reference
TransmissionAuto-6Reference
Gears24 forward and reverseReference
TransmissionPowerMaxx CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (two-range)Reference
Combination hydrostatic-mechanical CVT transmission. With the suspended front axle a transport speed of 50 KPH is available. Creeper speed available down to 0.03 KPH.Reference
PTO & Hydraulics
PTO (claimed)104.4 kWReference
PTO (tested)134.0 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves3 to 5Reference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Rear Type3/3NReference
Controlelectronic position and lower-link draft controlReference
Rear lift7484 kgReference
CVT Rear lift7321 kgReference
Front HitchoptionalReference
Front lift3991 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Front PTO2/3Reference
Front PTO Type1000Reference
Power at rated PTO speed108.3 kWReference
Power at rated PTO speed114.2 kWReference
Power at rated PTO speed134.5 kWReference
Power at rated PTO speed130.0 kWReference
Dimensions
2WD Wheelbase301 cmReference
4WD Wheelbase299 cmReference
Weight14300 to 15100 poundsReference
Front tire10.00x16Reference
2WD Rear tire18.4R42Reference
2WD Standard tires (ag)Front: 10.00x16. Rear: 18.4R42Reference
4WD Standard tires (ag)Front: 14.9R30. Rear: 18.4R42Reference
4WD Length497 cmReference
4WD CVT Length477 cmReference
Width200 cmReference
Height (cab)302 cmReference
4WD Shipping weight6486 kgReference
CVT Shipping weight6849 kgReference
Bar rear axle94 by 2334 mmReference
Bar rear axle94 by 2976 mmReference
2WD Front tread162 to 202 cmReference
4WD Front tread154 to 223 cmReference
Rear tread171 to 304 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Charging amps150Reference
Batteries2Reference
Battery CCA550Reference
Battery volts12Reference
Test results
OECD 2200: diesel 32-speed 4WDReference
OECD 2197: diesel CVT 4WDReference
OECD 2395: diesel 24-speed 4WDReference
OECD 2420: diesel CVT 4WDReference
Diesel 32-speed 4WDMarch 2004 - June 2004, Link: OCED Tractor Test 2200 fileReference
PTO performanceReference
Fuel use32.9 l/hourReference
Fuel use31.0 l/hourReference
Drawbar performanceReference
Fuel use32.6 l/hourReference
Gear 4TA used for power test.Reference
Max pull7463 kgReference
Gear 1TD used for pull test.Reference
Diesel CVT 4WDDecember 2003 - May 2004, Link: OCED Tractor Test 2197 fileReference
Fuel use33.3 l/hourReference
Fuel use35.6 l/hourReference
Fuel use34.4 l/hourReference
Fuel use35.2 l/hourReference
Pull at 7.70 KPHReference
Max pull7570 kgReference
Pull at 3.85 KPHReference
Diesel 24-speed 4WDAugust 2007 - October 2007, Link: OCED Tractor Test 2395 fileReference
Fuel use36.0 l/hourReference
Fuel use38.2 l/hourReference
Fuel use33.7 l/hourReference
Pull at 10.50 KPHReference
Max pull9035 kgReference
Pull at 2.11 KPHReference
Diesel CVT 4WDJune 2007 - September 2007, Link: OCED Tractor Test 2420 fileReference
Fuel use36.7 l/hourReference
Fuel use34.8 l/hourReference
Fuel use31.8 l/hourReference
Pull at 8.21 KPHReference
Max pull8840 kgReference
Pull at 2.45 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
