Tractor · 2004Unverified

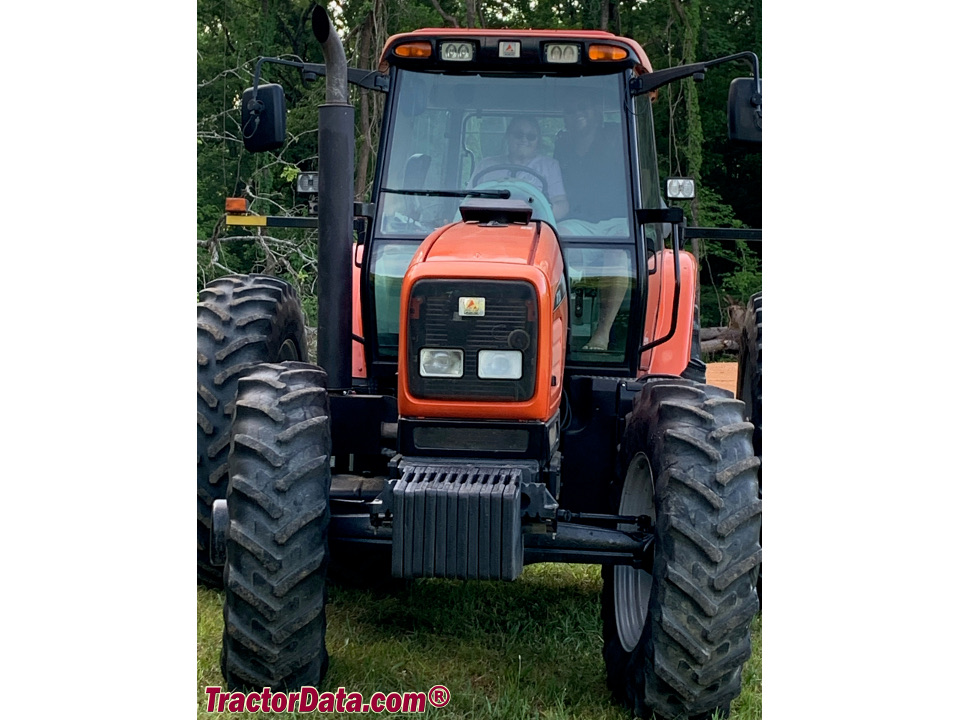

AGCO RT150
AGCO RT150 — RT Series · 153 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
153 hp
Max power
116.5 kW
Weight
14528 to 16415 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with optional automatic climate control.Reference
Engine
Cummins 6.7L 6-cyl dieselReference
Fuel tank378.5 LReference
Drawbar (tested)90.9 kWReference
CumminsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.7 LReference
Bore/Stroke104 x 132 mmReference
EmissionsTier IIReference
Air cleanerdual paper elementsReference
Pre-heatinggrid heaterReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque747.2 NmReference
Torque RPM1200Reference
Starter volts12Reference
Max power116.5 kWReference
Power at rated engine speed113.9 kWReference
Max power90.9 kWReference
Transmission
continuously variable transmissionReference
32-speed partial power shiftReference
TransmissionPowerMaxx CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverse (2-range)Reference
TransmissionQuadraShiftReference
Typepartial power shiftReference
Gears32 forward and reverseReference
Four power shift gears in four ranges.Reference
PTO & Hydraulics
PTO (claimed)111.9 kWReference
PTO (tested)116.5 kWReference
Typeclosed center pressure flow compensating (PFC)Reference
Pressure200.0 barReference
Valves4 or 5Reference
SCV flow109.8 lpmReference
Rear TypeII/IIINReference
Controlelectronic lower-linkReference
Rear lift (at 24"/610mm)6577 kgReference
Rear lift (at 24"/610mm)5670 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Front PTOoptionalReference
Power at rated PTO speed115.7 kWReference
Dimensions
Wheelbase289 cmReference
Weight14528 to 16415 poundsReference
Clearance (drawbar)35 cmReference
Front tread155 to 226 cmReference
Rear tread153 to 304 cmReference
Shipping6589 kgReference
Shipping6829 kgReference
Operating7445 kgReference
Ballasted9017 kgReference
AGCO RT150 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries2Reference
Battery volts12Reference
Test results
Diesel CVT 4WDOctober 11 - 27, 2004Link: OCED Tractor Test 1843 fileReference
PTO performanceReference
Fuel use35.6 l/hourReference
Fuel use37.9 l/hourReference
Fuel use36.3 l/hourReference
Drawbar performanceReference
Fuel use38.2 l/hourReference
Pull at 7.5 KPHReference
Max pull8266 kgReference
Pull at 3.7 KPHReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
