Tractor · 2007Unverified

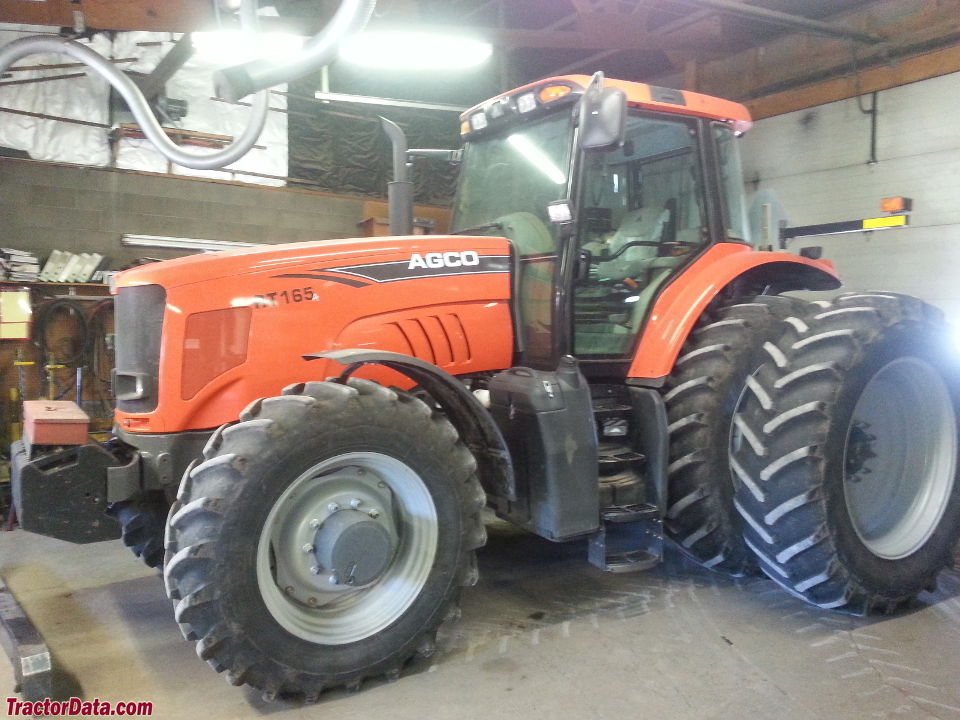

AGCO RT165A

Name: AGCO RT165A
Brand: AGCO

AGCO RT165A — RT-A Series · 182 hp. Reference specifications; pending source verification.

The AGCO RT165A is a tractor with a power rating of approximately 182 hp, positioning it at the higher end of its class. Produced from 2007 to 2011, it features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine and four-wheel drive with a continuously variable transmission. The tractor has an operating weight of 7801 kg, making it suitable for operations covering an area of 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

182 hp

Max power

111.7 kW

Weight

7801 kg

Catalogue coverage

Variants represented

Richest spec table

89 rows

Recorded power

182 hp

Recorded weight

7801 kg

Transmissions

24-speed partial power shift

Production years

2007-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAGCOReference

Row-Crop tractorReference

Built in Beauvais, FranceReference

Original price was $112,716 in 2009 with Auto-6Reference

The AGCO RT165A is the same as the Massey Ferguson 6497.Reference

Four-wheel driveReference

Differential lockelectro-hydraulc front and rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Trailer brakeshydraulic optionalReference

Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.Reference

Engine

SisuDiesel 7.4L 6-cyl dieselReference

Fuel tank378.5 LReference

Engine149.1 kWReference

Drawbar (tested)111.7 kWReference

SisuDiesel 74CTAReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsTier IIIReference

Power149.1 kWReference

Maximum Power171.5 kWReference

Fuel systemelectronic common rail fuel injectionReference

Air cleanerdry cartridgeReference

Pre-heatingair-intake grid heaterReference

Rated RPM2200Reference

Torque928.2 NmReference

Torque RPM1400Reference

Starter volts12Reference

Power at rated engine speed136.0 kWReference

Max power111.7 kWReference

Transmission

24-speed partial power shiftReference

continuously variable transmissionReference

TransmissionAuto-6Reference

Typepartial power shiftReference

Gears24 forward and reverseReference

Clutchwet discReference

Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.Reference

TransmissionPowermaxx CVTReference

Typecontinuously variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

PTO (claimed)123.0 kWReference

PTO (tested)136.0 kWReference

Typeclosed center pressure flow compensated (PFC)Reference

Pressure200.0 barReference

Valves3 to 5Reference

Total flow109.8 lpmReference

Total flow147.6 lpmReference

Rear Type3/3NReference

Controlelectronic position and lower-link draft controlReference

Rear lift (at 24"/610mm)7121 kgReference

Front Hitch2/3 (optional)Reference

Front lift3991 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E/1000Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Power at rated PTO speed155.8 kWReference

Dimensions

2WD Wheelbase294 cmReference

4WD Wheelbase301 cmReference

Weight7801 kgReference

Front tire420/90R30Reference

Rear tire480/80R46 (4WD)Reference

Standard tires (ag)Front: 420/90R30. Rear: 480/80R46 (4WD)Reference

Length533 cmReference

Width200 cmReference

Height (cab)309 cmReference

4WD Shipping weight7801 kgReference

Bar rear axle109 by 2994 mmReference

Bar rear axle109 by 2494 mmReference

4WD Front tread154 to 223 cmReference

Rear tread165 to 212 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps175Reference

Batteries2Reference

Battery CCA550Reference

Battery volts12Reference

Test results

Diesel 24-speed 4WDApril 2007 - May 2007, Link: OCED Tractor Test 2389 fileReference

PTO performanceReference

Fuel use42.8 l/hourReference

Fuel use45.8 l/hourReference

Drawbar performanceReference

Fuel use42.0 l/hourReference

Gear 3C used for power test.Reference

Max pull8935 kgReference

Gear 1E used for pull test.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
