Tractor · 2009Unverified

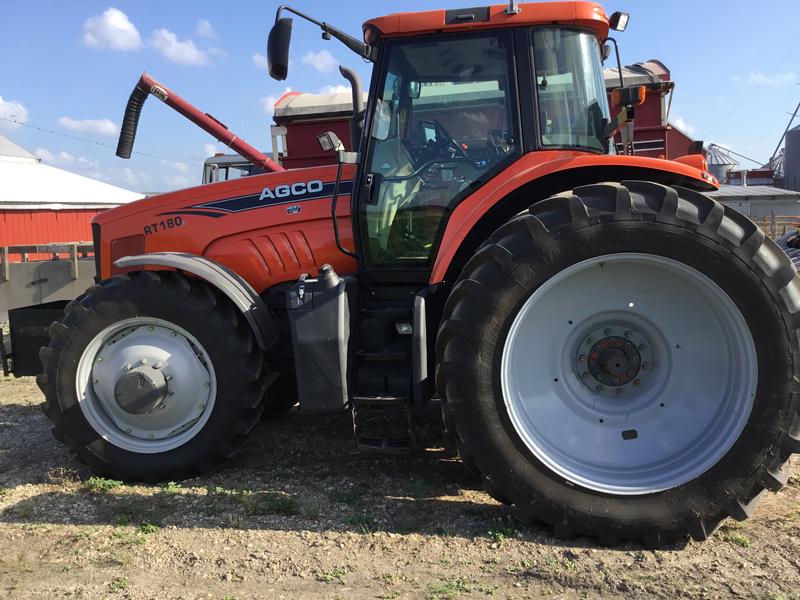

AGCO RT180A
AGCO RT180A — RT-A Series · 190 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Max power
124.5 kW
Weight
17200 to 17460 pounds
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Row-Crop tractorReference
Built in Beauvais, FranceReference
Original price was $143,740 in 2009 with Auto-6Reference
The AGCO RT180A is the same as the Massey-Ferguson 6499.Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulc front and rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Trailer brakeshydraulicReference
Cab standard. Optional Airmaxx pneumatic cab suspension and automatic climate control.Reference
Engine
SisuDiesel 7.4L 6-cyl dieselReference
Fuel tank378.5 LReference
Engine160.3 kWReference
Drawbar (tested)124.5 kWReference
SisuDiesel 74CTAReference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooledReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier IIIReference
Power160.3 kWReference
Maximum Power182.7 kWReference
Fuel systemelectronic common rail fuel injectionReference
Air cleanerdry cartridgeReference
Pre-heatingair-intake grid heaterReference
Compression17.5:1Reference
Rated RPM2200Reference
Torque970.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Power at rated engine speed141.6 kWReference
Max power124.5 kWReference
Transmission
24-speed partial power shiftReference
continuously variable transmissionReference
TransmissionAuto-6Reference
Typepartial power shiftReference
Gears24 forward and reverseReference
Clutchwet discReference
Six power shift gears in four synchromesh ranges. Autodrive provides automatic shifting to match load.Reference
TransmissionPowermaxx CVTReference
Typecontinuously variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)134.2 kWReference
PTO (tested)141.6 kWReference
Typeclosed center pressure flow compensated (PFC)Reference
Pressure200.0 barReference
Valves3 to 5Reference
Total flow109.8 lpmReference
Total flow147.6 lpmReference
Rear Type3/3NReference
Controlelectronic position and lower-link draft controlReference
Rear lift (at 24"/610mm)7121 kgReference
Front Hitch2/3Reference
Front lift3991 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E/1000Reference
Front PTOoptionalReference
Front PTO Type1000Reference
Power at rated PTO speed161.2 kWReference
Dimensions
2WD Wheelbase294 cmReference
4WD Wheelbase301 cmReference
Weight17200 to 17460 poundsReference
Front tire420/90R30Reference
4WD Rear tire480/80R46Reference
4WD Standard tires (ag)Front: 420/90R30. Rear: 480/80R46Reference
Length533 cmReference
Width200 cmReference
Height (cab)309 cmReference
Bar rear axle109 mmReference
4WD Front tread154 to 223 cmReference
Rear tread165 to 212 cmReference
4WD Shipping7801 kgReference
Operating7919 kgReference
Ballasted10850 kgReference
AGCO RT180A attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps175Reference
Batteries2Reference
Battery CCA550Reference
Battery volts12Reference
Test results
Diesel 24-speed 4WDApril 2007 - May 2007, Link: OCED Tractor Test 2390 fileReference
PTO performanceReference
Fuel use44.3 l/hourReference
Fuel use46.9 l/hourReference
Drawbar performanceReference
Fuel use44.7 l/hourReference
Gear 3C used for power test.Reference
Max pull10748 kgReference
Gear 1E used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
