Tractor · 2001Unverified

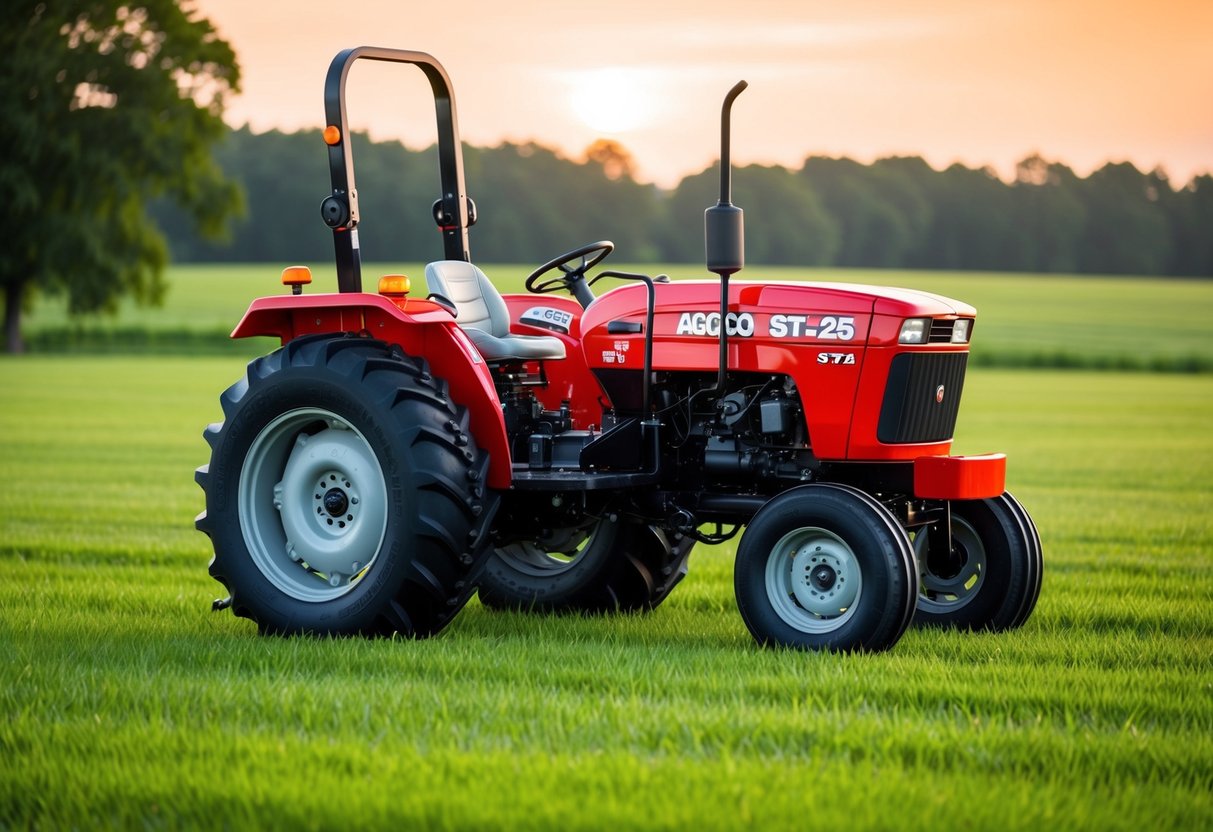

AGCO ST25
AGCO ST25 — ST Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
720 kg
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Dry shoe brakesReference
Two-post ROPS.Reference
Variants
1225similar Massey Ferguson modelReference
Engine
Iseki 1.1L 3-cyl dieselReference
Engine (gross)18.1 kWReference
Engine (net)16.6 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power (net)16.6 kWReference
Power (gross)18.1 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression22.5:1Reference
Rated RPM2800Reference
Idle RPM950-3050Reference
Torque66.7 NmReference
Torque RPM2000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity2.7 LReference
Coolant capacity7.1 LReference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch184mm mechanical dry discReference
Oil capacity14.0 LReference
Three gears (1-3), plus reverse (R), in two ranges. Tractor must be stopped, and clutch used, to shift gears or range.Reference
ManufacturerKayabaReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)14.3 kWReference
Hydro PTO (claimed)13.9 kWReference
Hydraulic system14.0 LReference
Typeopen centerReference
Capacity14.0 LReference
Pressure137.2 barReference
Pump flow20.1 lpmReference
Total flow29.9 lpmReference
Steering flow10.0 lpmReference
Steering press.102.9 barReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)548 kgReference
Rear lift (at 24"/610mm)314 kgReference
Rear Armsfixed link ends with turn-buckle stabilizerReference
Rear PTOtransmission (gear)Reference
Rear PTOindependent (hydro)Reference
Clutchelectro-hydraulic wet disc (hydro)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2681 (hydro)Reference
Engine RPM540@2732 (gear)Reference
Mid PTOtransmission (gear)Reference
Mid PTOindependent (hydro)Reference
Mid PTO TypeSAE 15 1.0Reference
Engine RPM2000@2583 (hydro)Reference
Engine RPM2000@2698 (gear)Reference
Capacities
Fuel23.1 LReference
Dimensions
Wheelbase152 cmReference
Weight720 kgReference
Front tire5.00-12Reference
Rear tire9.5-16Reference
Weight178 kgReference
Standard tires (ag)Front: 5.00-12. Rear: 9.5-16Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf rear315x75D15Reference
Industrial rear12-16.5Reference
Length267 cmReference
Width104 cmReference
Height (steering wheel)130 cmReference
Height (ROPS)191 cmReference
Shipping weight720 kgReference
Max weight1099 kgReference
Ground clearance27 cmReference
Flange rear axleReference
Front tread76/87 cmReference
Rear tread80 to 90 cmReference
AGCO ST25 attachments
60" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
60" Mower deck
Typemid-mount AGCO SM60Reference
Type3-bladeReference
Cutting width152 cmReference
Overall width186 cmReference
Cut height5 to 10 cmReference
Speeds
With 9.5-16 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
