Tractor · 2001Unverified
AGCO ST30x
AGCO ST30x — ST Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
899 kg
Hover a source tag to verify
Overview
ManufacturerAGCOReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
1233similar Massey Ferguson modelReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank22.7 LReference
Engine (gross)21.2 kWReference
Engine (net)20.6 kWReference
Iseki E3CFReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke86 x 84 mmReference
Power (net)20.6 kWReference
Power (gross)21.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21.7:1Reference
Rated RPM2500Reference
Idle RPM930-2750Reference
Torque95.5 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.6 LReference
Coolant capacity7.1 LReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutch225mm dry discReference
Three gears (1-3), plus reverse, in three ranges. Tractor must be stopped, and clutch used, to shift gears or range.Reference
PTO & Hydraulics
PTO (claimed)18.0 kWReference
Typeopen centerReference
Pressure146.9 barReference
Pump flow22.7 lpmReference
Total flow32.2 lpmReference
Steering flow9.5 lpmReference
Steering press.117.7 barReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)899 kgReference
Rear lift (at 24"/610mm)600 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2327Reference
Mid PTOtransmissionReference
Mid PTO TypeSAE 15 1.0Reference
Engine RPM2000@2381Reference
Dimensions
Wheelbase164 cmReference
Weight899 kgReference
Front tire5.00-15Reference
2WD Rear tire9.5-16Reference
Weight341 kgReference
2WD Standard tires (ag)Front: 5.00-15. Rear: 9.5-16Reference
4WD Standard tires (ag)Front: 6.00-14. Rear: 12.4-16Reference
2WD Lawn/turf front24x8.50-12Reference
4WD Lawn/turf front27x8.50-15Reference
2WD Lawn/turf rear315/75D-15Reference
4WD Lawn/turf rear315/80D-16Reference
Length295 cmReference
Width141 cmReference
Height (ROPS)201 cmReference
Shipping weight899 kgReference
Max weight1876 kgReference
Ground clearance30 cmReference
Flange rear axleReference
Front tread96 cmReference
Rear tread109 cmReference
AGCO ST30x attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
bladeReference

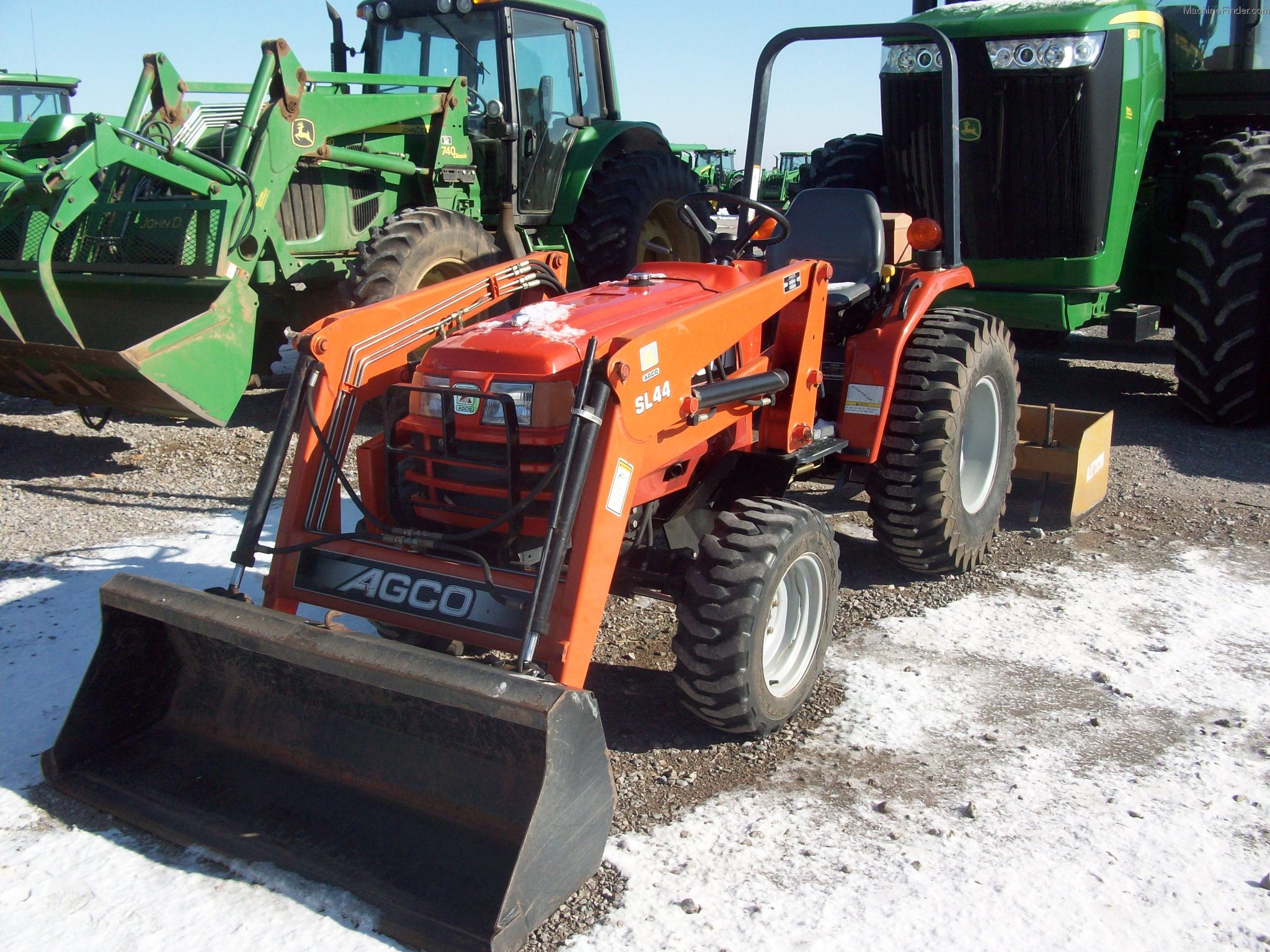

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA582Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
BladeReference
Front-end loaderReference
BackhoeReference
AGCO SH16 Backhoe
Backhoe typeAGCO SH16 BackhoeReference
Transport height162 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
2-Foot flat digging depth200 cmReference
Reach from pivot254 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
