Tractor · 2001Unverified

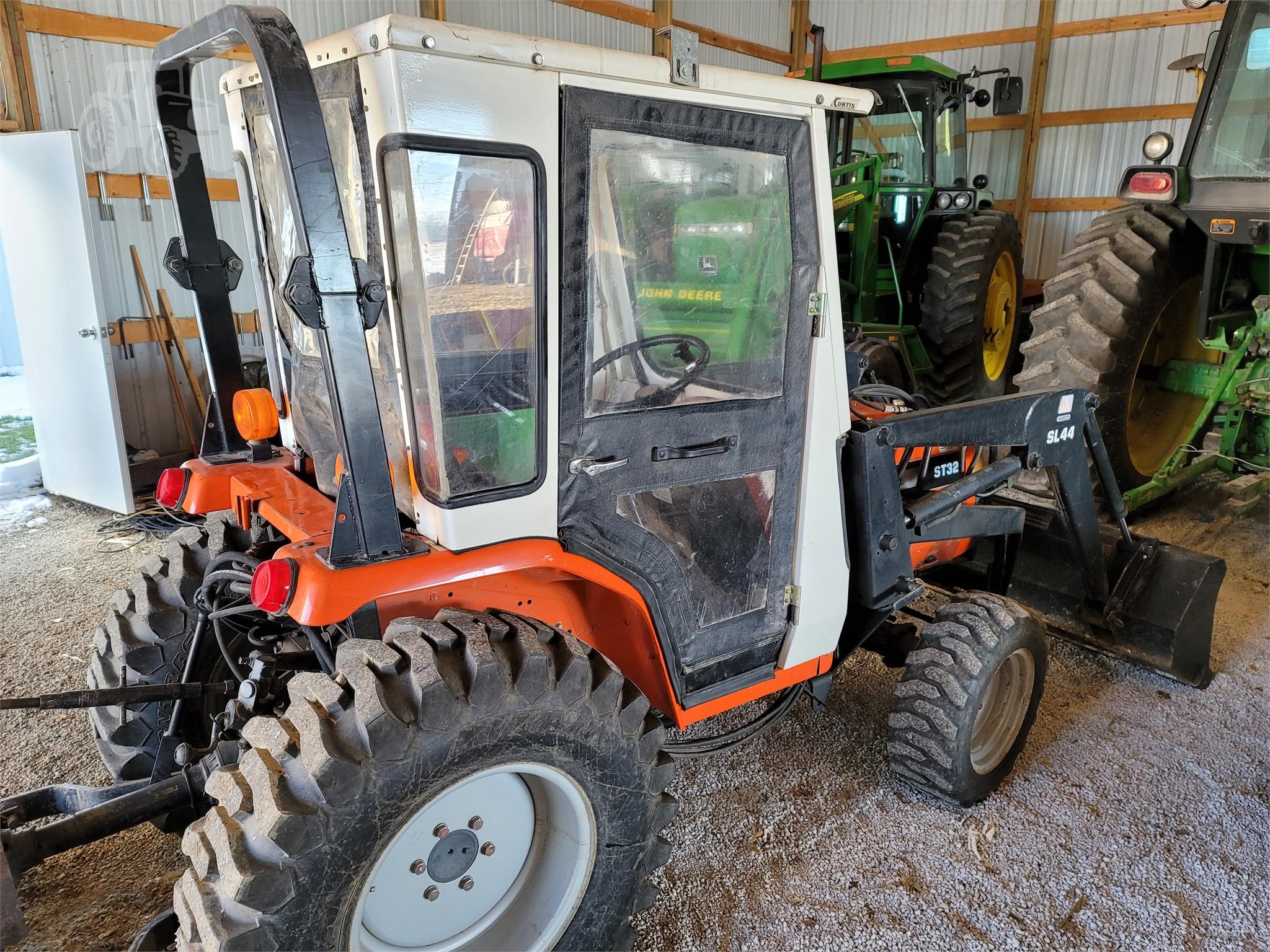

AGCO ST32
AGCO ST32 — ST Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1198 kg
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank23.1 LReference
Engine (gross)24.6 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power (gross)24.6 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)19.3 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow29.1 lpmReference
Total flow39.4 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)1099 kgReference
Rear Armsfixed link ends with telescopic stabilizerReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO TypeSAE 15 1.0Reference
Engine RPM2000@2600Reference
Dimensions
Wheelbase166 cmReference
Weight1198 kgReference
Industrial rear12.5/80-18Reference
Length295 cmReference
Width129 cmReference
Height (ROPS)201 cmReference
Height (Folded ROPS)173 cmReference
Shipping weight1198 kgReference
Front tread107 cmReference
Rear tread96 cmReference
AGCO ST32 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
