Tractor · 2001Unverified

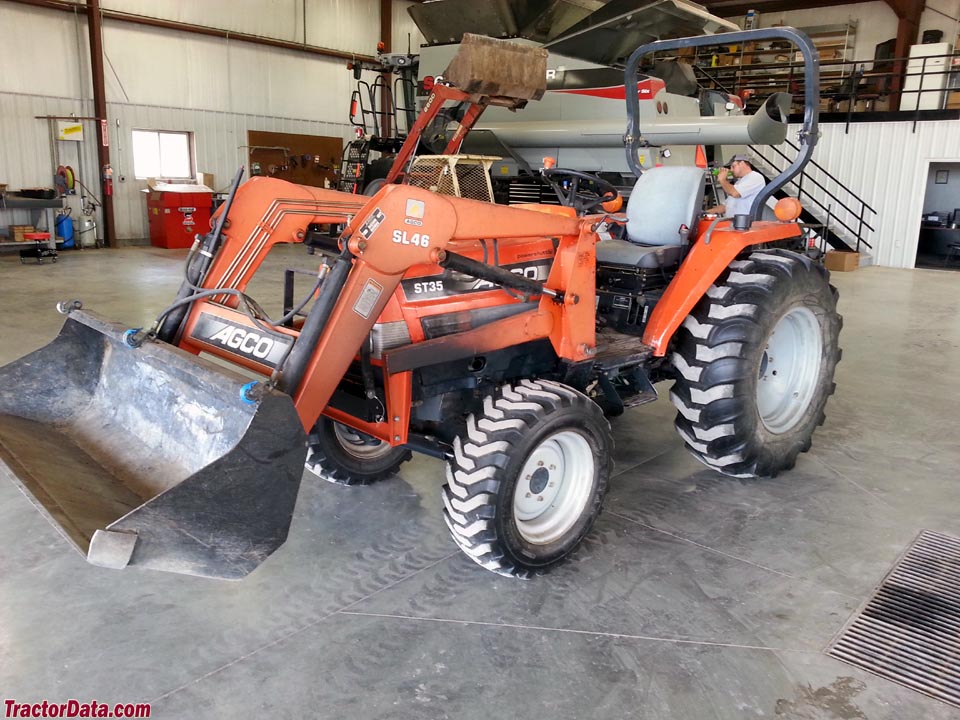

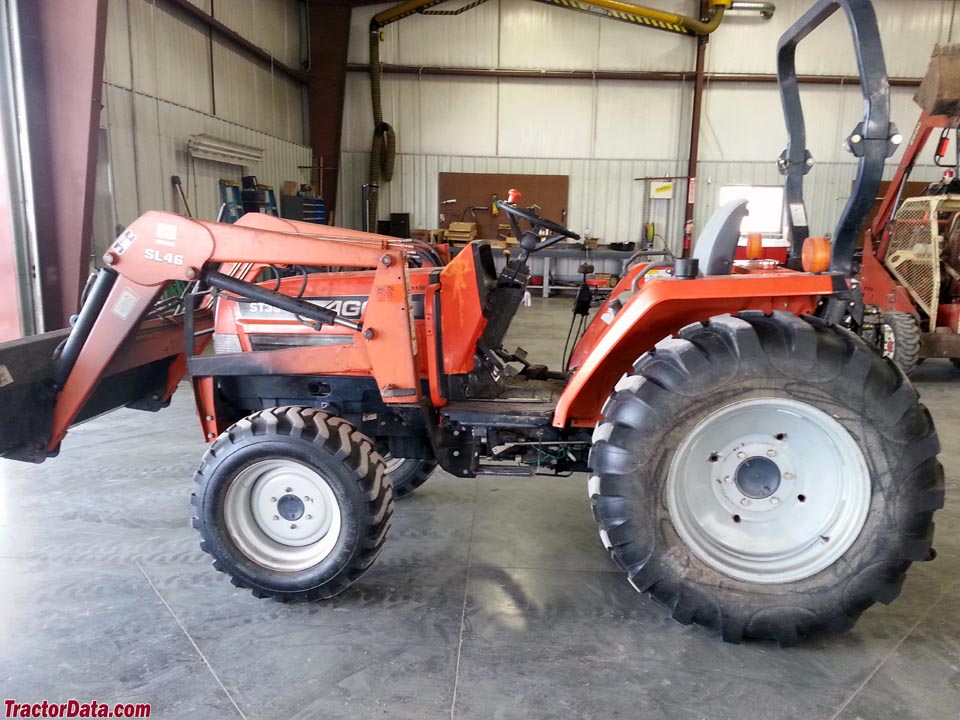

AGCO ST35
AGCO ST35 — ST Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1437 kg
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
1250similar Massey Ferguson modelReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)24.6 kWReference
Engine (net)23.6 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power (net)23.6 kWReference
Power (gross)24.6 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21.8:1Reference
Rated RPM2600Reference
Idle RPM980-2860Reference
Torque99.9 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity6.5 LReference
Transmission
16-speed synchronized shuttleReference
16-speed power shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
Clutch225mm dry discReference
Typepower shuttleReference
Clutchwet discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)20.0 kWReference
Hydro PTO (claimed)19.6 kWReference
Typeopen centerReference
Pressure146.9 barReference
Pump flow23.8 lpmReference
Total flow36.3 lpmReference
Steering flow12.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)1300 kgReference
Rear lift (at 24"/610mm)879 kgReference
Rear Armsfixed link endsReference
Rear Armstelescopic ends (optional)Reference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2389Reference
Mid PTOindependentReference
Mid PTO TypeSAE 15 1.0Reference
Engine RPM2000@2600Reference
Dimensions
Wheelbase173 cmReference
Weight1437 kgReference
Front tire7-16Reference
Rear tire12.4-34Reference
Weight364 kgReference
Standard tires (ag)Front: 7-16. Rear: 12.4-34Reference
Ag rear13.6-24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear355/80D-20Reference
Industrial front8-16Reference
Industrial rear13.6-24Reference
Length308 cmReference
Width143 cmReference
Height (ROPS)237 cmReference
Height (Folded ROPS)178 cmReference
Shipping weight1437 kgReference
Max weight2800 kgReference
Front tread115 cmReference
Rear tread109 to 141 cmReference
AGCO ST35 attachments
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA622Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount AGCO SM72Reference
Type3-bladeReference
Cutting width182 cmReference
Cut height5 to 10 cmReference
AGCO SH17 Backhoe
Backhoe typeAGCO SH17 BackhoeReference
Transport height184 cmReference
Bucket width25 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
Bucket width93 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot284 cmReference
Bucket Rotation165°Reference
Swing Arc180°Reference
Speeds
With 12.4-24 rear tires. Reverse speeds are 5% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
