Tractor · 2001Unverified

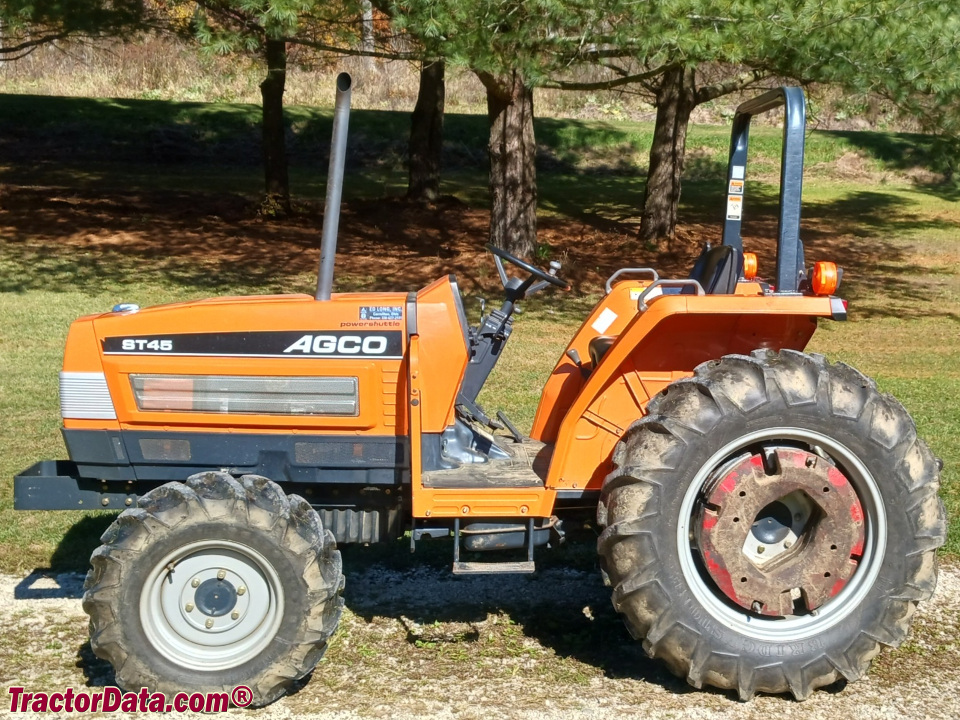

AGCO ST45

Name: AGCO ST45
Brand: AGCO

AGCO ST45 — ST Series · 44 hp. Reference specifications; pending source verification.

The AGCO ST45 is a compact tractor rated at 44 hp, manufactured from 2001 to 2004. It features a 4-cylinder diesel liquid-cooled engine, which powers four-wheel drive through a hydrostatic transmission. The listed weight of the tractor is 2017 kg, and it is suitable for tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Weight

2017 kg

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

44 hp

Recorded weight

2017 kg

Transmissions

16-speed mechanical shuttle

Production years

2001-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorAGCOReference

ManufacturerIsekiReference

Compact Utility tractorReference

Built in Matsuyama, JapanReference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Variants

1165similar Massey Ferguson modelReference

Engine

Iseki 2.2L 4-cyl dieselReference

Fuel tank48.1 LReference

Engine (gross)33.0 kWReference

Engine (net)31.6 kWReference

Iseki E4CGReference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Displacement2.2 LReference

Bore/Stroke87 x 92 mmReference

Power (net)31.6 kWReference

Power (gross)33.0 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Compression21.8:1Reference

Rated RPM2600Reference

Idle RPM975-2700Reference

Torque188.5 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity7.9 LReference

Coolant capacity9.5 LReference

Transmission

16-speed mechanical shuttleReference

16-speed power shuttleReference

hydrostaticReference

Typemechanical shuttleReference

Gears16 forward and reverseReference

Clutch260mm dry discReference

Typepower shuttleReference

Clutchwet discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (four-range)Reference

PTO & Hydraulics

Gear PTO (claimed)27.6 kWReference

Hydro PTO (claimed)26.8 kWReference

Typeopen centerReference

Pressure156.9 barReference

Pump flow28.0 lpmReference

Total flow47.7 lpmReference

Steering flow19.7 lpmReference

Steering press.171.3 barReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1399 kgReference

Rear lift (at 24"/610mm)1179 kgReference

Rear Armstelescopic link endsReference

Rear PTOindependentReference

Clutchelectro-hydraulic wet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2391Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase200 cmReference

Weight2017 kgReference

Front tire9.5-16Reference

Rear tire13.6-28Reference

Weight364 kgReference

Standard tires (ag)Front: 9.5-16. Rear: 13.6-28Reference

Lawn/turf front212/80D-15Reference

Lawn/turf rear475/65D-20Reference

Length347 cmReference

Width175 cmReference

Height (ROPS)226 cmReference

Shipping weight2017 kgReference

Max weight2721 kgReference

Front tread133 cmReference

Rear tread132 to 152 cmReference

AGCO ST45 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA622Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

AGCO SH17 Backhoe

Backhoe typeAGCO SH17 BackhoeReference

Transport height184 cmReference

Bucket width25 cmReference

Bucket width30 cmReference

Bucket width40 cmReference

Bucket width60 cmReference

Bucket width93 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot284 cmReference

Bucket Rotation165°Reference

Swing Arc180°Reference

Speeds

With 13.6-28 rear tires. Reverse speeds are 5% slower than forward.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
