Tractor · 2005Unverified

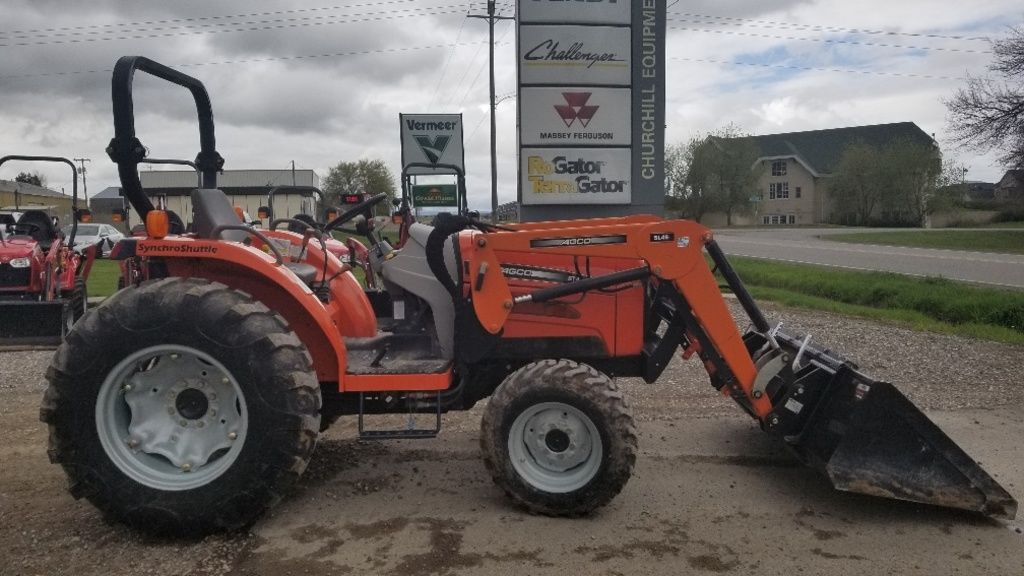

AGCO ST47A
AGCO ST47A — ST-A Series · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
1584 kg
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 2.2L 4-cyl dieselReference
Engine (gross)35.4 kWReference
IsekiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)35.4 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchro shuttleReference
12-speed power shuttleReference
hydrostaticReference
12-speed four-speed power shiftReference
Typesynchro shuttleReference
Gears8 forward and reverseReference
Typepower shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
TransmissionQuadraShiftReference
Typefour-speed power shiftReference
Four-speed push button power shift in three ranges, with power shuttle.Reference
PTO & Hydraulics
Hydro PTO (claimed)27.2 kWReference
Gear PTO (claimed)28.3 kWReference
Typeopen centerReference
Pump flow43.9 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase190 cmReference
Weight1584 kgReference
Length330 cmReference
Width165 cmReference
Height (ROPS)228 cmReference
Shipping weight1584 kgReference
Ground clearance40 cmReference
AGCO ST47A attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
AGCO SH17A Backhoe
Backhoe typeAGCO SH17A BackhoeReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Swing Arc180°Reference
Bucket force1474 kgReference
Dipperstick force861 kgReference
AGCO SH19A Backhoe
Backhoe typeAGCO SH19A BackhoeReference
Digging depth254 cmReference
Reach from pivot322 cmReference
Swing Arc180°Reference
Bucket force1886 kgReference
Dipperstick force1179 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
