Tractor · 2005Unverified

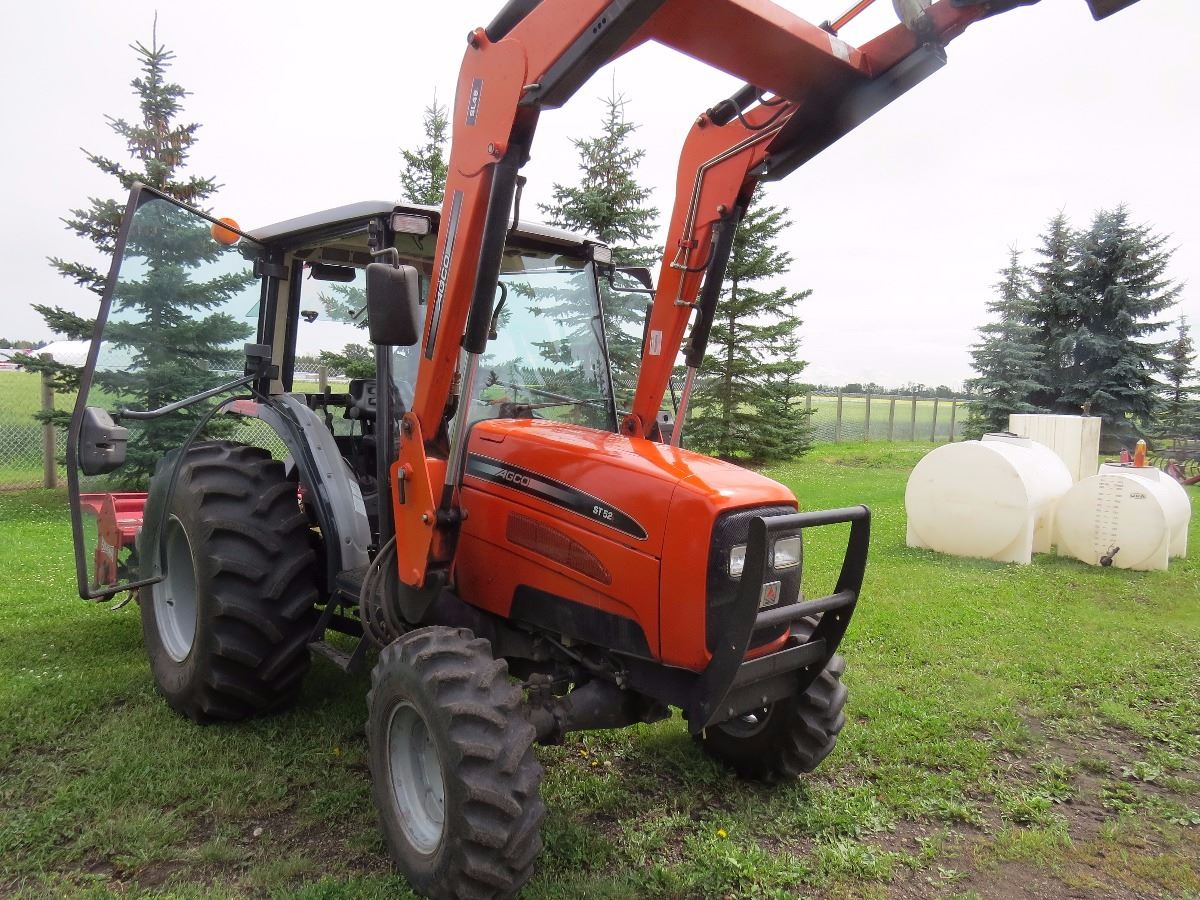

AGCO ST52A
AGCO ST52A — ST-A Series · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
1624 kg
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 3.0L 4-cyl dieselReference
Engine (gross)38.9 kWReference
IsekiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power (gross)38.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchro shuttleReference
12-speed power shuttleReference
12-speed four-speed power shiftReference
Typesynchro shuttleReference
Gears8 forward and reverseReference
Typepower shuttleReference
Gears12 forward and reverseReference
TransmissionQuadraShiftReference
Typefour-speed power shiftReference
Four-speed push button power shift in three ranges, with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)30.6 kWReference
Typeopen centerReference
Pump flow47.3 lpmReference
Rear TypeIReference
Controlposition control with optional draft controlReference
Rear lift (at ends)1579 kgReference
Rear lift (at 24"/610mm)1399 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase190 cmReference
Weight1624 kgReference
Length330 cmReference
Width165 cmReference
Height (ROPS)228 cmReference
Shipping weight1624 kgReference
Ground clearance40 cmReference
AGCO ST52A attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
AGCO SH17A Backhoe
Backhoe typeAGCO SH17A BackhoeReference
Digging depth228 cmReference
Reach from pivot284 cmReference
Swing Arc180°Reference
Bucket force1474 kgReference
Dipperstick force861 kgReference
AGCO SH19A Backhoe
Backhoe typeAGCO SH19A BackhoeReference
Digging depth254 cmReference
Reach from pivot322 cmReference
Swing Arc180°Reference
Bucket force1886 kgReference
Dipperstick force1179 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
