Tractor · 2007Unverified

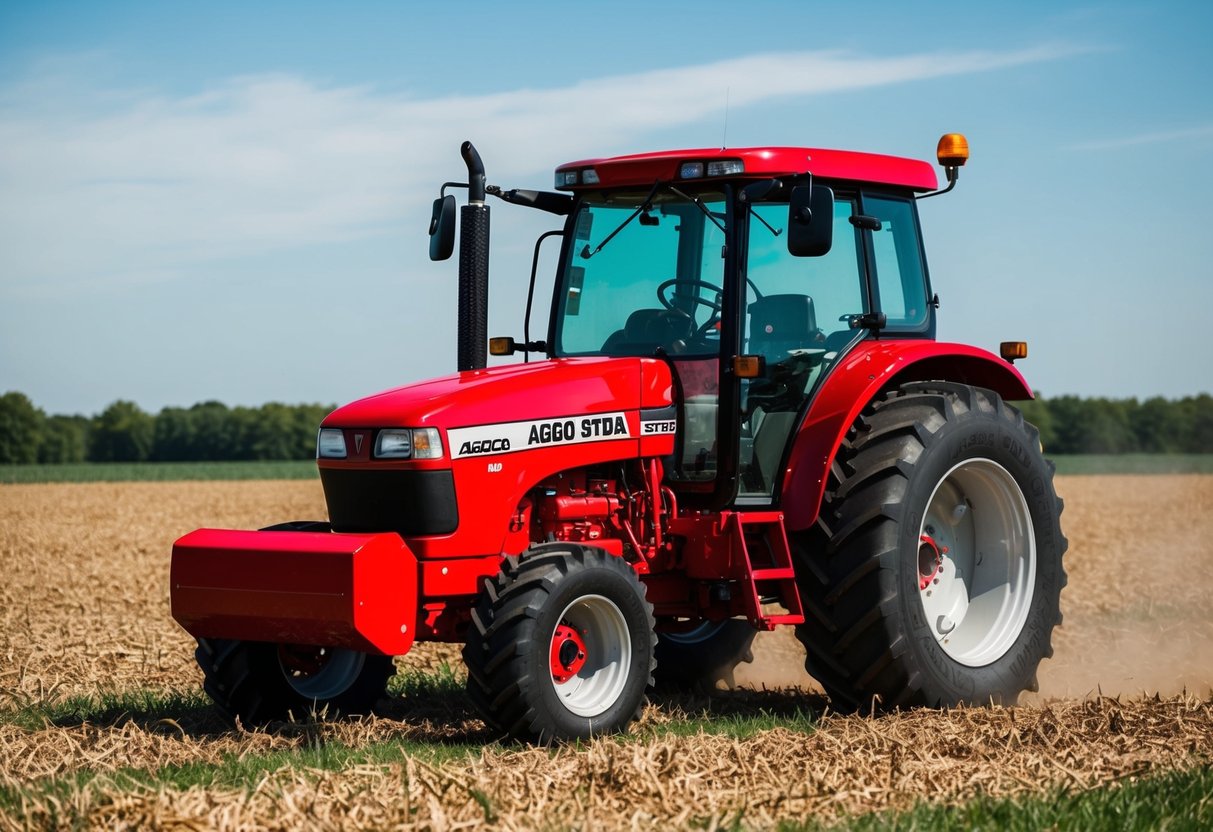

AGCO ST60A
AGCO ST60A — ST-A Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
4078 to 4464 pounds
Hover a source tag to verify
Overview
DistributorAGCOReference
ManufacturerIsekiReference
Compact Utility tractorReference
Built in Matsuyama, JapanReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab standard on QuadraShift, optional with shuttleReference
Engine
Iseki 3.0L 4-cyl dieselReference
Engine34.6 kWReference
IsekiReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Power34.6 kWReference
Rated RPM2600Reference
Transmission
12-speedReference
TransmissionPowershuttleReference
Gears12 forward and reverseReference
Transmission may be changed from forward to reverse without clutching.Reference
TransmissionQuadraShiftReference
Four gears are provided in each of three ranges. Tractor may be shifted within range, forward or backwards, without clutching.Reference
PTO & Hydraulics
PTO (claimed)44.1 kWReference
Pump flow48.4 lpmReference
Rear Type1/2Reference
Rear lift (at ends)1700 kgReference
Rear lift (at 24"/610mm)1500 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase200 cmReference
Weight4078 to 4464 poundsReference
Length341 cmReference
Width174 cmReference
Height (ROPS)232 cmReference
Shipping weight1849 kgReference
Shipping weight2024 kgReference
Ground clearance39 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
