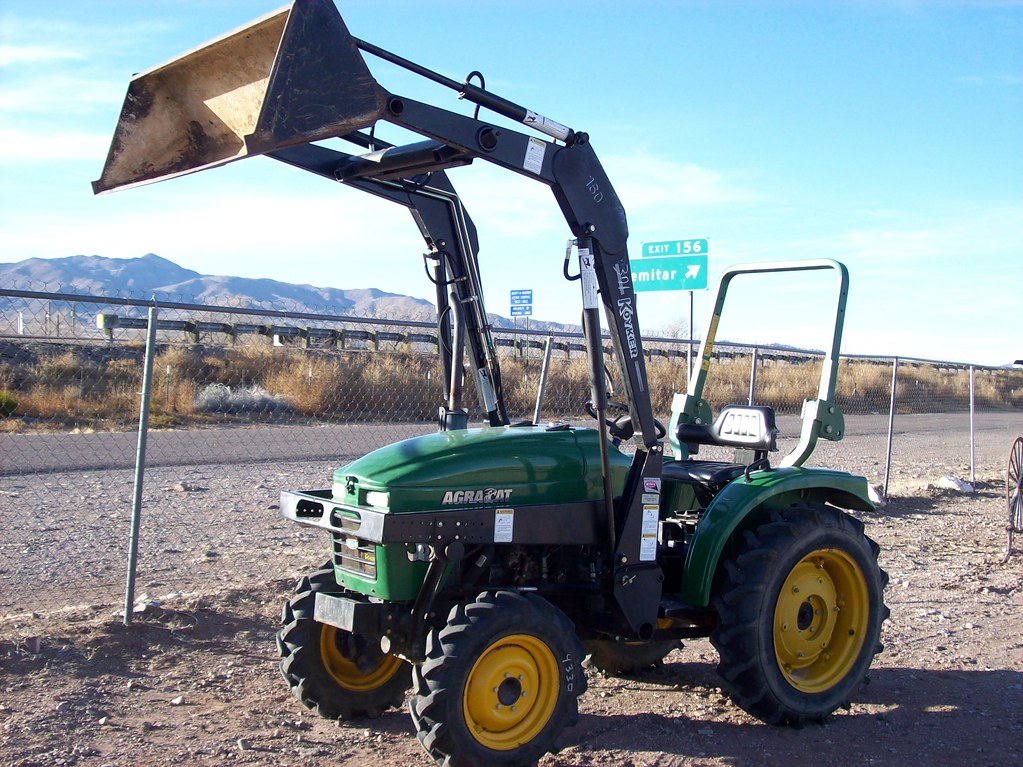

The AgraCat 2710 is a compact tractor with a rated output of 19 hp, positioned within its class. It was manufactured from 2001 to 2004. Equipped with a 3-cylinder diesel liquid-cooled engine, the 2710 features a two-wheel drive system paired with a 6-speed gearbox. Its listed weight is 972 kg, making it suitable for tasks on approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
972 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
19 hp
Recorded weight
972 kg
Transmissions
6-speed
Production years
2001-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorAgraCatReference
ManufacturerJinmaReference
Compact Utility tractorReference
Built in ChinaReference
Two-wheel driveReference
Engine
3-cyl dieselReference
Engine14.9 kWReference
TY290TA2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Power14.9 kWReference
Rated RPM2300Reference
Starter typeelectricReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Pressure220.6 barReference
Total flow36.6 lpmReference
Rear TypeIReference
Rear lift367 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase147 cmReference
Weight972 kgReference
Front tire4.00-16Reference
Rear tire8.3-24Reference
Ag front4.00-16Reference
Ag rear8.3-24Reference
Length254 cmReference
Width124 cmReference
Height (steering wheel)130 cmReference
Shipping weight972 kgReference
Ground clearance33 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
