Tractor · 2001Unverified

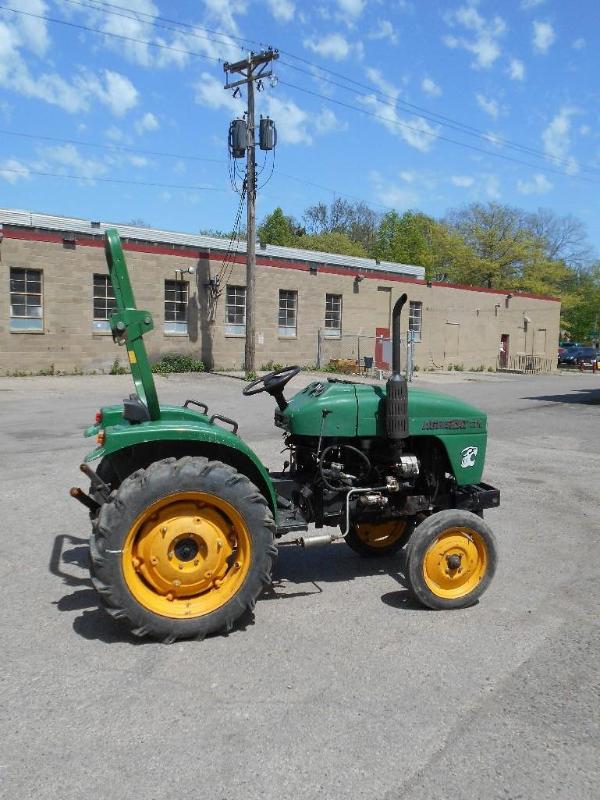

AgraCat 2740
AgraCat 2740 — Compact Utility tractor · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1202 kg
Hover a source tag to verify
Overview
DistributorAgraCatReference
ManufacturerJinmaReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Engine
3-cyl dieselReference
Engine14.9 kWReference
TY290TA2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Power14.9 kWReference
Rated RPM2300Reference
Starter typeelectricReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Pressure220.6 barReference
Total flow36.6 lpmReference
Rear TypeIReference
Rear lift367 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase152 cmReference
Weight1202 kgReference
Front tire6.00-12Reference
Rear tire8.3-24Reference
Ag front6.00-12Reference
Ag rear8.3-24Reference
Length266 cmReference
Width124 cmReference
Height (steering wheel)130 cmReference
Shipping weight1202 kgReference
Ground clearance29 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
