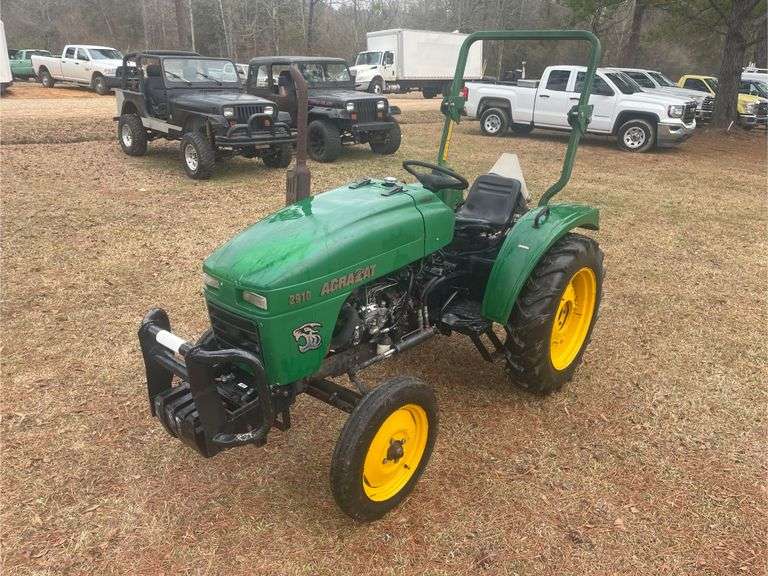

The AgraCat 2910 is a tractor rated at approximately 24 hp, which positions it at the lighter end of its class. Produced from 2001 to 2004, it features a 3-cylinder diesel liquid-cooled engine paired with two-wheel drive and a 6-speed gearbox. The tractor has an operating weight of 1197 kg and is suited to operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1197 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
24 hp
Recorded weight
1197 kg
Transmissions
6-speed
Production years
2001-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorAgraCatReference
ManufacturerJinmaReference
Compact Utility tractorReference
Built in ChinaReference
Two-wheel driveReference
Engine
3-cyl dieselReference
Engine18.6 kWReference
XN2100/385Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Power18.6 kWReference
Rated RPM2350Reference
Starter typeelectricReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)17.7 kWReference
Pressure220.6 barReference
Total flow36.6 lpmReference
Rear TypeIReference
Rear lift397 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase164 cmReference
Weight1197 kgReference
Front tire4.00-16Reference
Rear tire9.5-24Reference
Ag front4.00-16Reference
Ag rear9.5-24Reference
Length299 cmReference
Width129 cmReference
Height (steering wheel)143 cmReference
Shipping weight1197 kgReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
