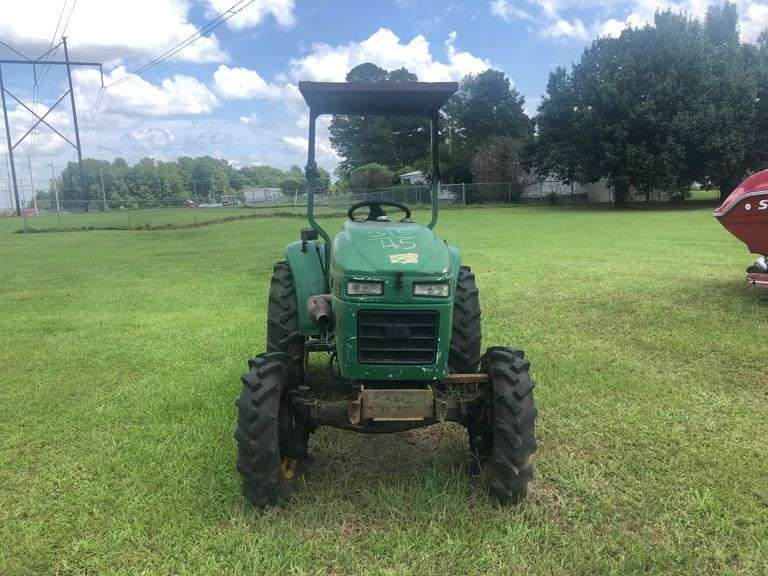

The AgraCat 2920 is a tractor with a rated output of 24 hp — making it one of the more compact options in its class. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 6-speed gearbox. Listed weight is 1242 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1242 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
24 hp
Recorded weight
1242 kg
Transmissions
6-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorAgraCatReference
ManufacturerJinmaReference
Built in ChinaReference
Four-wheel driveReference
Engine
3-cyl dieselReference
Engine18.6 kWReference
XN2100/385Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Power18.6 kWReference
Rated RPM2350Reference
Starter typeelectricReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)17.7 kWReference
Pressure220.6 barReference
Total flow36.6 lpmReference
Rear TypeIReference
Rear lift397 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase164 cmReference
Weight1242 kgReference
Front tire6.00-16Reference
Rear tire9.5-24Reference
Ag front6.00-16Reference
Ag rear9.5-24Reference
Length299 cmReference
Width129 cmReference
Height (steering wheel)144 cmReference
Shipping weight1242 kgReference
Ground clearance29 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
