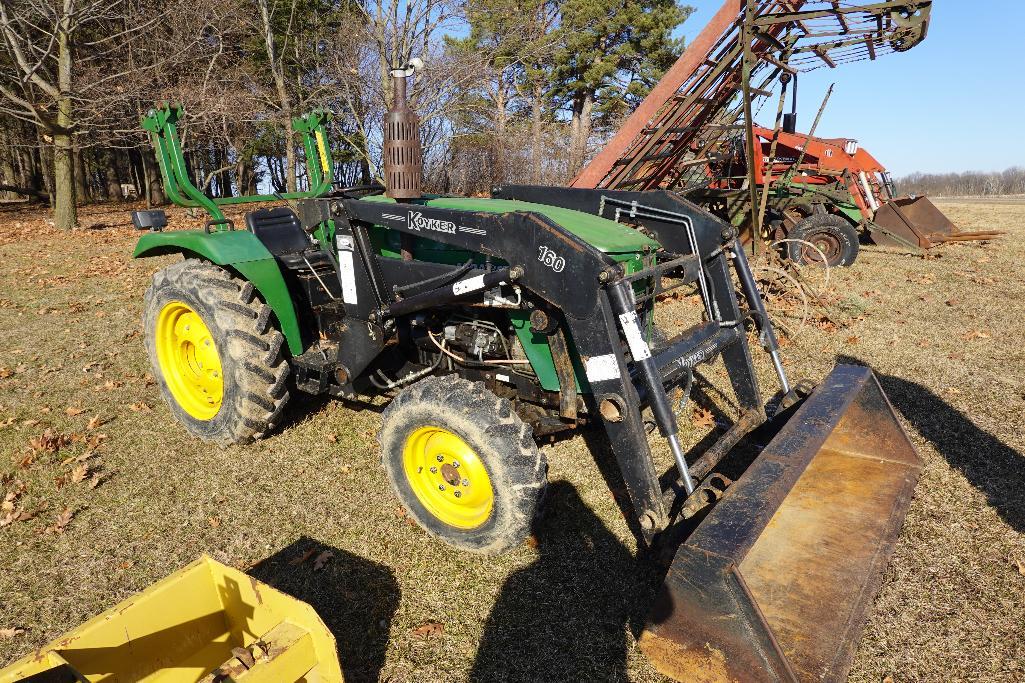

The AgraCat 3720 is a compact tractor with a rated output of 33 hp, produced from 2001 to 2004. It features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, coupled with a 6-speed gearbox. The listed weight of the tractor is 1544 kg, with an intended application for areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1544 kg
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
33 hp
Recorded weight
1544 kg
Transmissions
6-speed gear
Production years
2001-2004
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorAgraCatReference
ManufacturerJinmaReference
Compact Utility tractorReference
Built in ChinaReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
2.2L 3-cyl dieselReference
Engine26.1 kWReference
TY395Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke95 x 105 mmReference
Power26.1 kWReference
Rated RPM2000Reference
Starter typeelectricReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)24.6 kWReference
Pressure220.6 barReference
Total flow36.6 lpmReference
Rear TypeIReference
Rear lift504 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/720Reference
Dimensions
Wheelbase183 cmReference
Weight1544 kgReference
Front tire6.00-16Reference
Rear tire11.2-24Reference
Ag front6.00-16Reference
Ag rear11.2-24Reference
Length314 cmReference
Width145 cmReference
Height205 cmReference
Shipping weight1544 kgReference
Ground clearance29 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
