Tractor · 1964Unverified

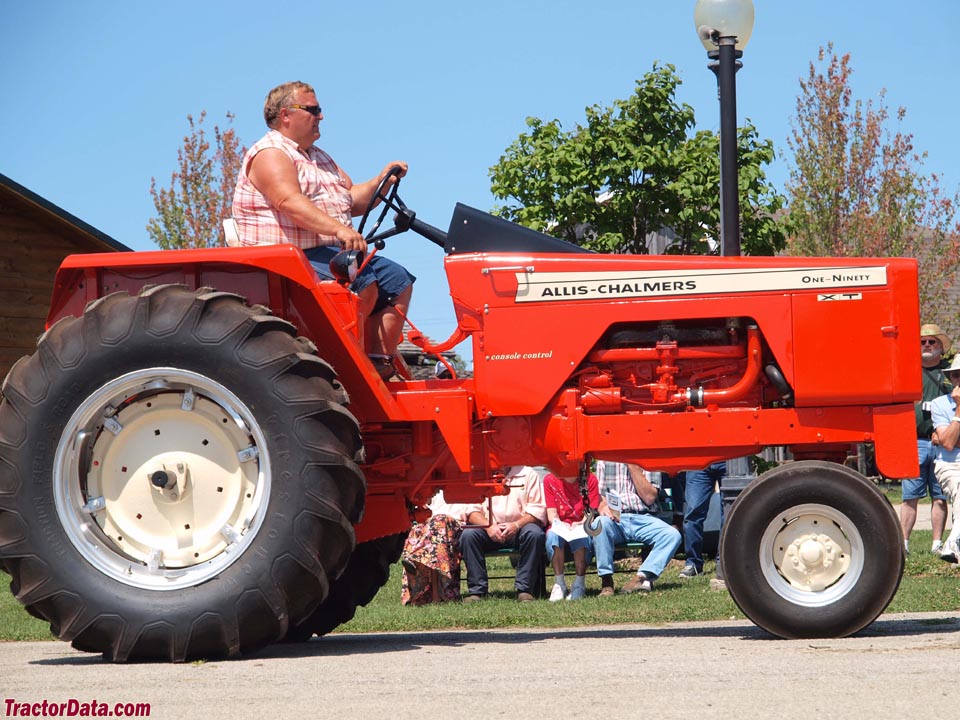

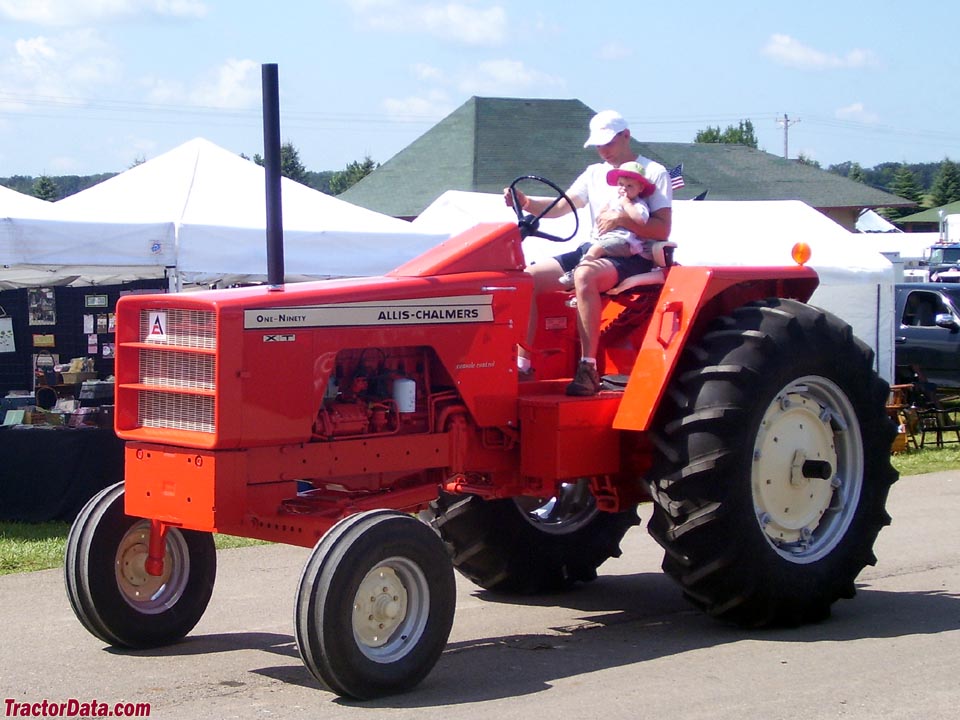

Allis Chalmers 190XT
Allis Chalmers 190XT — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Max power
59.0 kW
Weight
7675 to 7945 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built22419Reference
Original price$8,672Reference
Two-wheel driveReference
Power steeringReference
Band actuated disc brakesReference
Open operator station. Factory cab available starting in 1965 with optional heat and air-conditioning.Reference
Engine
Allis Chalmers 4.9L 6-cyl gasolineReference
Allis-Chalmers 4.9L 6-cyl dieselReference
Allis-Chalmers 4.9L 6-cyl LP gasReference
Drawbar (tested)59.0 kWReference
Allis Chalmers G2800Reference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke98 x 108 mmReference
Air cleanerdryReference
Compression8:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity17.0 LReference
Sparkplug gap0.635 mmReference
Point gap0.406 mmReference
Intake valve clearance0.508 mmReference
Exhaust valve clearance0.635 mmReference
Oil capacity11.4 LReference
Allis-Chalmers 2900Reference
turbocharged dieselReference
Compression16.25:1Reference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.381 mmReference
Allis-Chalmers G2800Reference
LP gasReference
Compression9:1Reference
Sparkplug gap0.508 mmReference
Power at rated engine speed69.8 kWReference
Max power59.0 kWReference
Power at rated engine speed63.6 kWReference
Max power53.7 kWReference
Power at rated engine speed66.8 kWReference
Max power57.2 kWReference
Transmission
8-speed two-speed power shiftReference
TransmissionPower DirectorReference
Typetwo-speed power shiftReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity30.3 LReference
Oil capacity36.0 LReference
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.Reference
PTO & Hydraulics
PTO (tested)69.8 kWReference
Hydraulic system34.1 LReference
Typeopen centerReference
Capacity34.1 LReference
Pressure137.9 barReference
Pump flow45.4 lpmReference
Steering flow45.4 lpmReference
Steering press.103.4 barReference
Rear TypeIIReference
TypeAllis Snap-CouplerReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@1940Reference
Engine RPM1000@2136Reference
Power at rated PTO speed66.9 kWReference
Power at rated PTO speed56.9 kWReference
Power at rated PTO speed61.4 kWReference
Capacities
Fuel181.7 LReference
Fuel196.8 LReference
Diameter22 cmReference
Width16 cmReference
RPM1845Reference
Speed1324.97 meters/minReference
Dimensions
Wheelbase266 cmReference
Weight7675 to 7945 poundsReference
Front tire7.50-16Reference
Rear tire16.4-34Reference
Ag front7.50-16Reference
Ag rear16.4-34Reference
Ag front6.50-16Reference
Ag front9.00-10 (single)Reference
Ag rear23.1-30Reference
Ag rear18-34Reference
Ag rear15.5-38Reference
Length400 cmReference
Width222 cmReference
Clearance (front axle)55 cmReference
Clearance (rear axle)65 cmReference
Rear axle69 mmReference
Rear axle82 mmReference
Front tread152 to 213 cmReference
Rear tread152 to 203 cmReference
Rear tread152 to 223 cmReference
Operating3481 kgReference
Operating3499 kgReference
Operating3603 kgReference
Ballasted5125 kgReference
Steering wheel208 cmReference
190XT Serial Number Location
Serial number on the left side of the tractor, stamped into the flange where the engine and transmission meet.Reference
190XT Serial Numbers
19641001Reference
19652485Reference
19668219Reference
196713273Reference
196719001 (Series II)Reference
196819262Reference
196823001 (Series III)Reference
196923234Reference
197025901Reference
197129136Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Batteries1 (gas)Reference
Batteries2 (diesel)Reference
Battery volts6 (diesel)Reference
Battery volts12 (gas/opt)Reference
Battery AH53 (gas)Reference
Battery AH95 (gas optional)Reference
Battery AH135 (diesel)Reference
Battery AH190 (diesel optional)Reference
Allis Chalmers 190XT Height
Hood160 cmReference
Exhaust270 cmReference
Test results
NTTL 887: diesel 8-speed 2WDReference
NTTL 927: LP gas 8-speed 2WDReference
NTTL 929: gasoline 8-speed 2WDReference
Diesel 8-speed 2WDApril 10 - 16, 1965Link: Nebraska Tractor Test 887 fileReference
PTO performanceReference
Fuel use21.6 l/hourReference
Fuel use20.1 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull4044 kgReference
Gear 3 used for pull test.Reference
LP gas 8-speed 2WDNovember 9 - 17, 1965Link: Nebraska Tractor Test 927 fileReference
Fuel use37.5 l/hourReference
Fuel use32.9 l/hourReference
Fuel use37.9 l/hourReference
Max pull4272 kgReference
Gear 2 used for pull test.Reference
Gasoline 8-speed 2WDNovember 9 - 16, 1965Link: Nebraska Tractor Test 929 fileReference
Fuel use30.3 l/hourReference
Fuel use27.3 l/hourReference
Fuel use32.2 l/hourReference
Max pull4172 kgReference
Speeds
With 15.5-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
