Allis Chalmers 200
Allis Chalmers 200 — Row-Crop tractor · 94 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
94 hp
Max power
59.0 kW
Weight
3322 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Total built10,126Reference
Original price$14,125Reference
Two-wheel driveReference
Power steeringReference
Ball actuated disc brakesReference
Open operator station. QCS cab optional starting in 1972.Reference
Engine
Allis Chalmers 4.9L 6-cyl dieselReference
Drawbar (tested)59.0 kWReference
Allis ChalmersReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke98 x 108 mmReference
Compression16.25:1Reference
Rated RPM2200Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity14.2 LReference
Coolant capacity17.0 LReference
Power at rated engine speed69.8 kWReference
Max power59.0 kWReference
Transmission
8-speed constant mesh-helical gearsReference
Typeconstant mesh-helical gearsReference
Gears8 forward and 2 reverseReference
Oil capacity36.0 LReference
PTO & Hydraulics
PTO (tested)69.8 kWReference
Hydraulic system26.5 LReference
Typeopen centerReference
Capacity26.5 LReference
Pressure158.6 barReference
Valves2Reference
Pump flow65.1 lpmReference
Total flow79.6 lpmReference

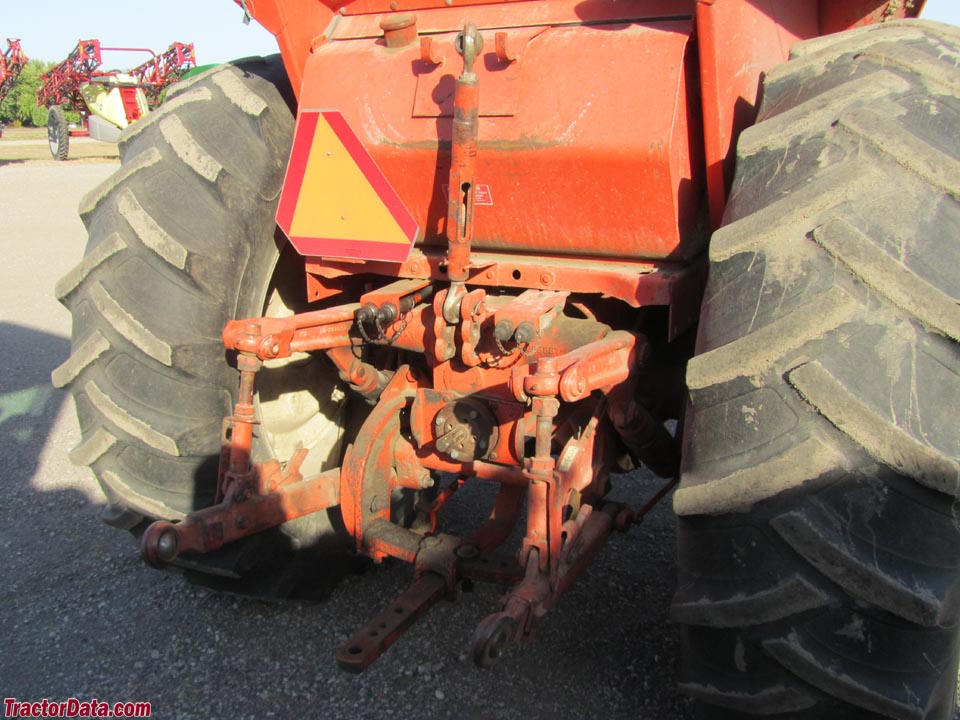

Rear TypeIIReference
Rear lift2086 kgReference
Rear PTOtransmissionReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed66.9 kWReference
Capacities
Fuel181.7 LReference
Dimensions
Wheelbase268 cmReference
Weight3322 kgReference
Front tire7.50-16Reference
Rear tire16.9-34Reference
Ag front7.50-16Reference
Ag rear16.9-34Reference
Ag front10.00-16Reference
Ag front6.50-20Reference
Ag front7.50-20Reference
Ag front9.5L-15Reference
Ag front11L-15Reference
Ag rear23.1-30Reference
Ag rear18.4-34Reference
Ag rear13.6-38Reference
Ag rear15.5-38Reference
Ag rear16.9-38Reference
Ag rear18.4-38Reference
Ag rear12.4-42Reference
Length445 cmReference
Width222 cmReference
Clearance (front axle)64 cmReference
Clearance (rear axle)68 cmReference
Rear axle82 mmReference
Steering wheel227 cmReference
Allis Chalmers 200 attachments
front-end loaderReference
200 Serial Numbers
Location:Torque housing, right sideReference
19721001Reference
19733344Reference
19746294Reference
19759250Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32Reference
Charging amps55Reference
Batteries1Reference
Batteries2Reference
Battery volts12Reference
Allis Chalmers 200 Height
Hood167 cmReference
Exhaust298 cmReference
Test results
Diesel 8-speed 2WDApril 10 - 16, 1965Link: Nebraska Tractor Test 887 fileReference
PTO performanceReference
Fuel use21.6 l/hourReference
Fuel use20.1 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull4044 kgReference
Gear 3 used for pull test.Reference
Speeds
With 18.4-38 rear tires.Reference
