Tractor · 1980Unverified

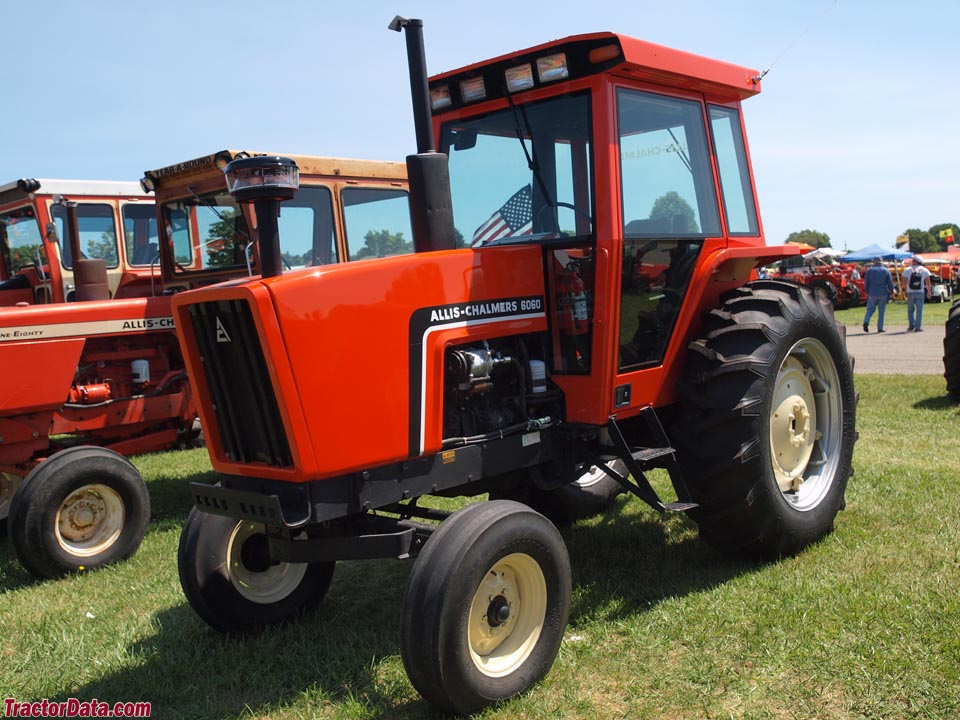

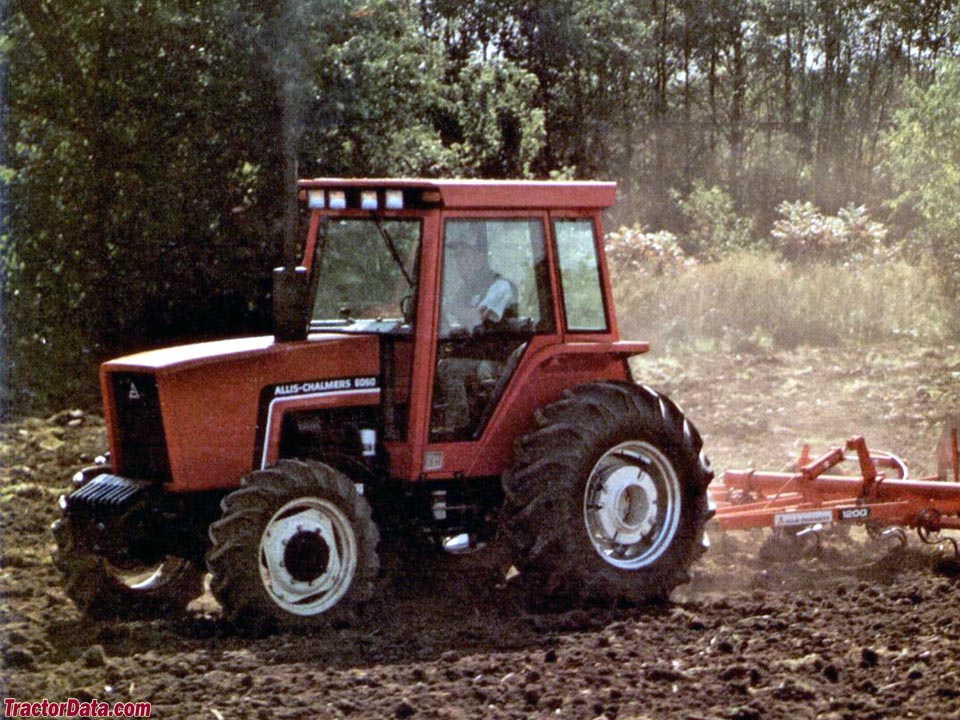

Allis Chalmers 6060
Allis Chalmers 6060 — Row-Crop tractor · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Max power
37.9 kW
Weight
6100 to 6465 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built4,027Reference
Original price$21,460Reference
Two- or four-wheel driveReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Four-post ROPS canopy. Cab and air-conditioning optional.Reference
Engine
Allis Chalmers 3.3L 4-cyl dieselReference
Drawbar (tested)37.9 kWReference
Allis Chalmers 433TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 108 mmReference
Air cleanerpaper element with pre-cleanderReference
Compression14.1:1Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity9.5 LReference
Coolant capacity16.1 LReference
Power at rated engine speed47.6 kWReference
Max power37.9 kWReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Oil capacity11.4 LReference
Two ranges with four gears in each range. Synchronized shifting between top two gears (3-4 and 7-8) in each range.Reference
PTO & Hydraulics
PTO (tested)47.6 kWReference
Typeopen centerReference
Valves2Reference
Pump flow43.1 lpmReference
Total flow71.9 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1587 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed48.4 kWReference
Capacities
Fuel121.1 LReference
Rear diff.35.0 LReference
Dimensions
2WD Wheelbase236 cmReference
4WD Wheelbase233 cmReference
Weight6100 to 6465 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 18.4-28Reference
Length372 cmReference
Width173 cmReference
4WD Clearance (front axle)45 cmReference
2WD Clearance (front axle)51 cmReference
Clearance (rear axle)67 cmReference
Shipping2766 kgReference
Operating2932 kgReference
Ballasted4057 kgReference
Allis Chalmers 6060 attachments
front-end loaderReference
6060 Serial Numbers
Location:Right side of engine adapter flangeReference
19801001Reference
19811297Reference
19822463Reference
19833894Reference
19844572Reference
Final5027Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps72Reference
Batteries1Reference
Batteries2Reference
Battery volts12Reference
Allis Chalmers 6060 Height
Hood176 cmReference
ROPS273 cmReference
Cab262 cmReference
Exhaust279 cmReference
Test results
Diesel 8-speed 2WDJune 9 - 22, 1981Link: Nebraska Tractor Test 1397 fileReference
PTO performanceReference
Fuel use15.1 l/hourReference
Drawbar performanceReference
Fuel use14.4 l/hourReference
Gear 1-H used for power test.Reference
Max pull3105 kgReference
Gear 2-L used for pull test.Reference
Speeds
With 15.5-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
