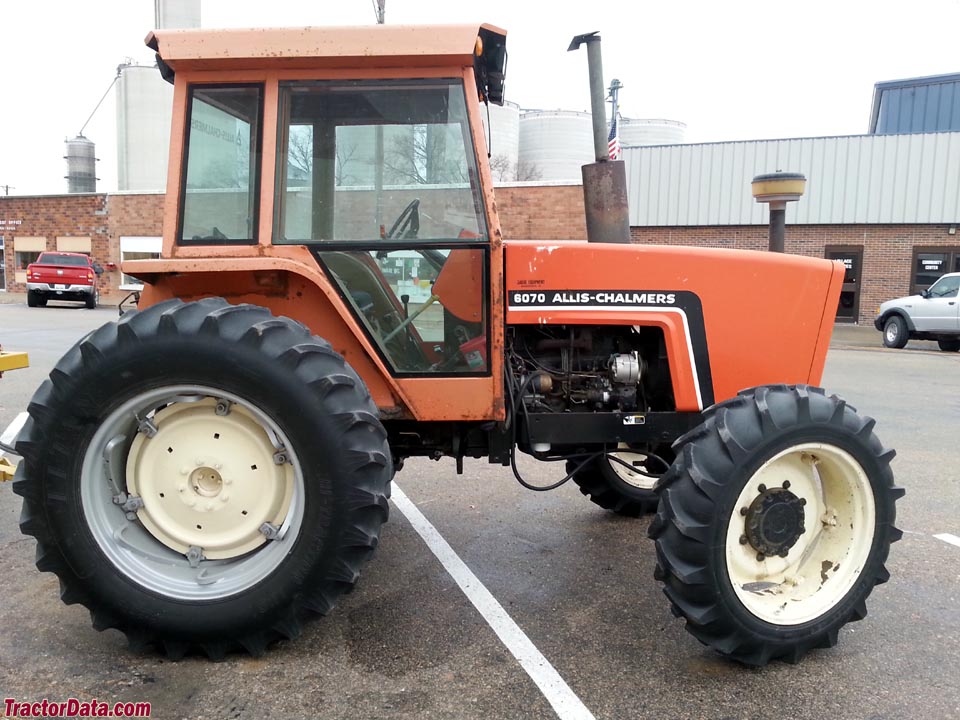

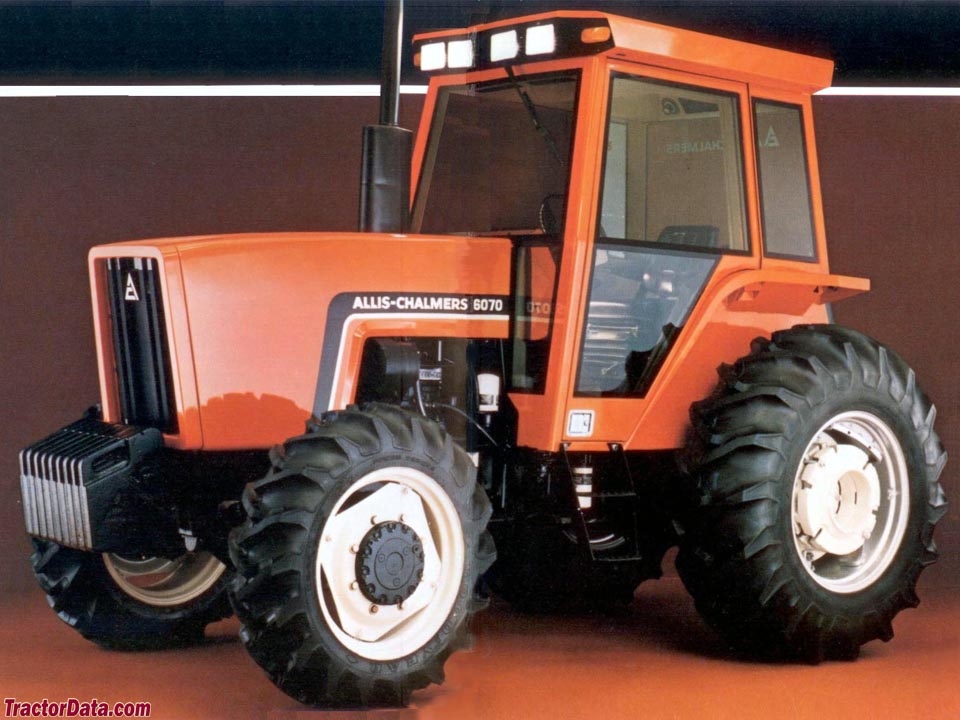

Allis Chalmers 6070
Allis Chalmers 6070 — Row-Crop tractor · 71 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
71 hp
Max power
43.5 kW
Weight
6100 to 7285 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built972Reference
Original price$24,225Reference
On December 6, 1985, a model 6070 tractor (serial #1972) was the final tractor to be built on the Allis-Chalmers assembly line in West Allis.Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Four-post ROPS canopy. Optional cab and air-conditioning.Reference
Engine
Allis Chalmers 3.3L 4-cyl dieselReference
Drawbar (tested)43.5 kWReference
Allis Chalmers 433TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.3 LReference
Bore/Stroke98 x 108 mmReference
Air cleanerpaper element with pre-cleanerReference
Compression15.1:1Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity9.5 LReference
Coolant capacity16.1 LReference
Power at rated engine speed52.8 kWReference
Max power43.5 kWReference
Transmission
12-speed synchronizedReference
TypesynchronizedReference
Gears12 forward and 3 reverseReference
Oil capacity11.4 LReference
Four gears, plus reverse, in three ranges. Synchronized shifting with clutch.Reference
PTO & Hydraulics
PTO (tested)52.8 kWReference
Typeopen centerReference
Valves1Reference
Pump flow43.1 lpmReference
Total flow71.9 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1587 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed53.0 kWReference
Capacities
Fuel121.1 LReference
Rear diff.35.0 LReference
Dimensions
Wheelbase236 cmReference
Wheelbase233 cmReference
Weight6100 to 7285 poundsReference
Front tire7.50-16Reference
Rear tire16.9-28Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-28 (2WD)Reference
Ag rear18.4-28 (4WD)Reference
Length372 cmReference
Width173 cmReference
Clearance (front axle)45 cmReference
Clearance (front axle)51 cmReference
Clearance (rear axle)67 cmReference
Front tread142 to 200 cmReference
Rear tread152 to 218 cmReference
Shipping2766 kgReference
Operating3304 kgReference
Ballasted4769 kgReference
6070 Serial Numbers
Location:Right side of engine adapter flangeReference
19841001Reference
19851609Reference
Final1972Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps72Reference
Battery volts12Reference
Allis Chalmers 6070 Height
Hood176 cmReference
ROPS273 cmReference
Cab262 cmReference
Exhaust279 cmReference
Test results
Diesel 12-speed 2WDOctober 19 - 26, 1984Link: Nebraska Tractor Test 1545 fileReference
PTO performanceReference
Fuel use16.7 l/hourReference
Fuel use16.3 l/hourReference
Drawbar performanceReference
Gear 3I used for power test.Reference
Max pull3627 kgReference
Gear 1I used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
