Tractor · 1982Unverified

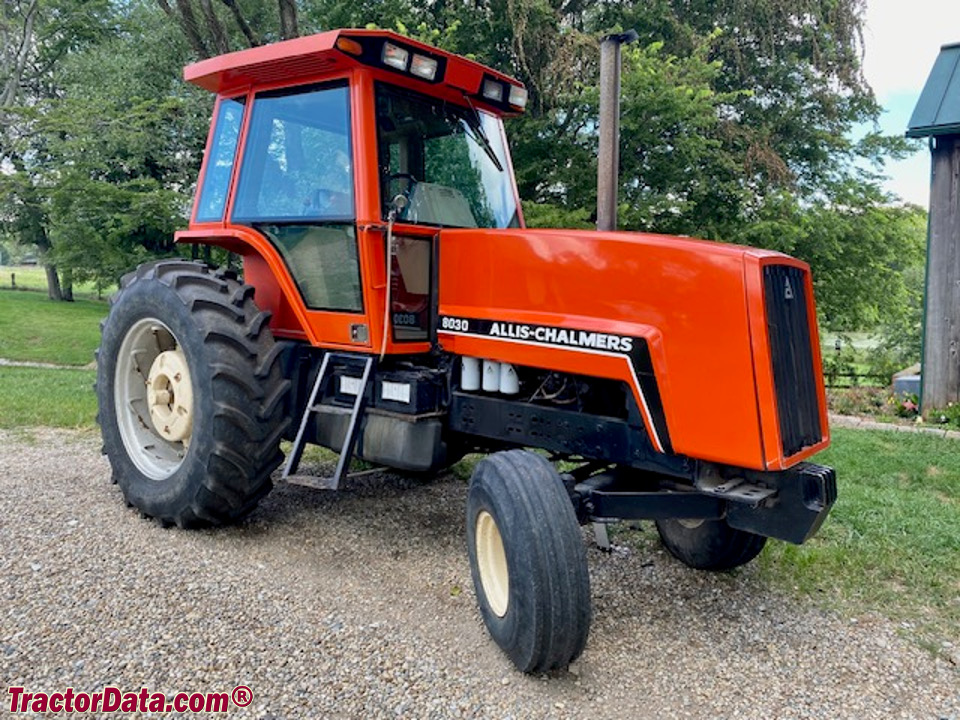

Allis Chalmers 8030

Allis Chalmers 8030 — Row-Crop tractor · 134 hp. Reference specifications; pending source verification.

The Allis Chalmers 8030 tractor features a rated output of 134 hp, positioning it within the higher-powered machines in its class. Manufactured between 1982 and 1985, it is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, driving through four-wheel drive and a hydrostatic transmission. Listed weights for the tractor range from 14200 to 15015 pounds. It is designed for use on areas of approximately 200-800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
134 hp
Max power
85.9 kW
Weight
14200 to 15015 pounds

Catalogue coverage

Variants represented
2
Richest spec table
105 rows
Recorded power
134 hp
Transmissions
16-speed partial power shift
Production years
1982-1985
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built2,328Reference
Original price$52,398Reference
Two- or four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Steeringhydrostatic powerReference
Differential hydraulic wet discs brakesReference
Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.Reference

Variants

8030row-cropReference
8030HChigh-cropReference

Engine

Allis Chalmers 7.0L 6-cyl dieselReference
Drawbar (tested)85.9 kWReference
Allis Chalmers 670TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Air cleanerdryReference
Compression15.5:1Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity18.0 LReference
Coolant capacity29.3 LReference
Power at rated engine speed99.7 kWReference
Max power85.9 kWReference

Transmission

16-speed partial power shiftReference
20-speed partial power shiftReference
12-speed Allis-ChalmersReference
TransmissionAllis-Chalmers Power DirectorReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
Oil capacity28.0 LReference
Four gears (1-4) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.Reference
Gears20 forward and 4 reverseReference
Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.Reference
TransmissionPower ShiftReference
TypeAllis-ChalmersReference
Gears12 forward and 2 reverseReference
Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.Reference

PTO & Hydraulics

PTO (tested)99.7 kWReference
Typeclosed-center load-sensitiveReference
Valves2 or 3Reference
Pump flow83.3 lpmReference
Pump flow51.1 lpmReference
Total flow170.3 lpmReference
Steering flow36.0 lpmReference
Rear TypeIII/IIReference
Rear lift (at 24"/610mm)3030 kgReference
Rear lift (at 24"/610mm)3719 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Power at rated PTO speed100.2 kWReference

Capacities

Fuel227.1 LReference
Fuel94.6 LReference
Rear diff.63.2 LReference

Dimensions

2WD Wheelbase269 cmReference
4WD Wheelbase243 cmReference
Weight14200 to 15015 poundsReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
2WD Ag front10.00-16Reference
4WD Ag front13.6-28Reference
Ag rear18.4-38Reference
2WD Ag front11.00-16Reference
2WD Ag front14L-16Reference
2WD Ag front18.4-16Reference
4WD Ag front14.9-28Reference
4WD Ag front14.9-24Reference
Ag rear20.8-38Reference
Ag rear18.4-42Reference
Ag rear16.9-38Reference
Length474 cmReference
Width237 cmReference
Ground clearance44 cmReference
Ground clearance53 cmReference
Ground clearance71 cmReference
4WD Shipping6441 kgReference
Operating6810 kgReference
Ballasted7756 kgReference

8030 Serial Number Location

Serial number decal on the left side of the tractor's frame, just ahead of the fuel tank. Serial number also stamped into the casting at the rear of the tractor, above and to the left of the PTO shaft.Reference

8030 Serial Numbers

19811001Reference
19821009Reference
19832093Reference
19842701Reference
19853146Reference
Final3328Reference
FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference
Charging amps100Reference
Battery volts12Reference

Allis Chalmers 8030 Height

Hood175 cmReference
Cab292 cmReference
Exhaust287 cmReference

Test results

Diesel 12-speed 2WDAugust 31 - September 13, 1982Link: Nebraska Tractor Test 1447 fileReference
PTO performanceReference
Fuel use33.7 l/hourReference
Fuel use33.3 l/hourReference
Drawbar performanceReference
Gear 2F used for power test.Reference
Max pull6054 kgReference
Gear 3S used for pull test.Reference

Speeds

With 18.4x38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
