Tractor · 1982Unverified

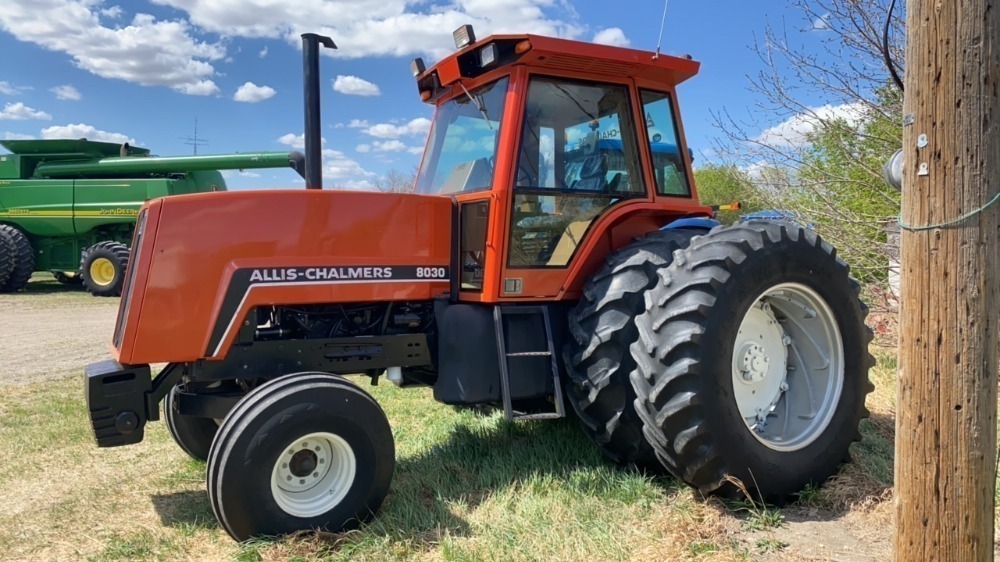

Allis Chalmers 8030 High-Clearance
Allis Chalmers 8030 High-Clearance — High-Clearance tractor · 134 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
134 hp
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
High-Clearance tractorReference
Built in West Allis, Wisconsin, USAReference
Two-wheel driveReference
Variants
8030row-cropReference
8030HChigh-cropReference
Engine
Allis Chalmers 7.0L 6-cyl dieselReference
Drawbar (claimed)87.0 kWReference
Allis Chalmers 570TReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Rated RPM2300Reference
Operating RPM750-2580Reference
StarterelectricReference
Starter volts12Reference
Oil capacity18.0 LReference
Coolant capacity34.1 LReference
Transmission
12-speed six-speed power shiftReference
TransmissionPower ShiftReference
Typesix-speed power shiftReference
Gears12 forward and 2 reverseReference
Oil capacity30.3 LReference
Six power shift gears in two ranges. Clutch must be used to shift range.Reference
PTO & Hydraulics
PTO (claimed)99.8 kWReference
Hydraulic system140.0 LReference
Typeload sensingReference
Capacity140.0 LReference
Rear TypeIII/IIReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel227.1 LReference
Dimensions
Wheelbase269 cmReference
Front tire9.50x20Reference
Rear tire18.4x38Reference
Ag front9.50x20Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Length474 cmReference
Width229 cmReference
Height (cab)327 cmReference
Height (exhaust)325 cmReference
Clearance (front axle)92 cmReference
Clearance (drawbar)77 cmReference
Front tread177 to 198 cmReference
Rear tread177 to 218 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
