Search/Tractor/Allis Chalmers/8050

Tractor · 1982Unverified

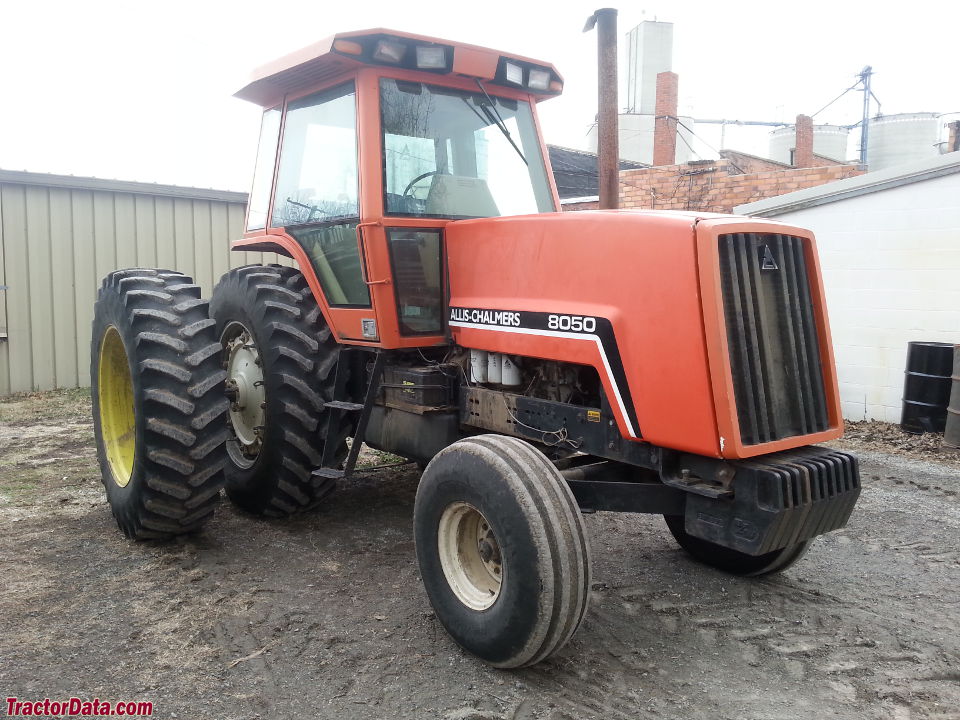

Allis Chalmers 8050

Name: Allis Chalmers 8050
Brand: Allis Chalmers

Allis Chalmers 8050 — Row-Crop tractor · 152 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

152 hp

Max power

98.0 kW

Weight

15305 to 16300 pounds

Hover a source tag to verify

Overview

ManufacturerAllis ChalmersReference

Row-Crop tractorReference

Built in West Allis, Wisconsin, USAReference

Total built2,336Reference

Original price$58,411Reference

Two- or four-wheel driveReference

Differential lockelectro-hydraulic rearReference

Steeringhydrostatic powerReference

Differential hydraulic wet discs brakesReference

Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.Reference

Variants

8050row-cropReference

8050HChigh-cropReference

Engine

Allis Chalmers 7.0L 6-cyl dieselReference

Drawbar (tested)98.0 kWReference

Allis Chalmers 670IReference

turbocharged intercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement7.0 LReference

Bore/Stroke108 x 127 mmReference

Air cleanerdryReference

Compression15.5:1Reference

Rated RPM2300Reference

Starter volts12Reference

Oil capacity18.0 LReference

Oil capacity19.9 LReference

Coolant capacity30.3 LReference

Power at rated engine speed113.6 kWReference

Max power98.0 kWReference

Transmission

20-speed partial power shiftReference

12-speed Allis-ChalmersReference

TransmissionAllis-Chalmers Power DirectorReference

Typepartial power shiftReference

Gears20 forward and 4 reverseReference

Oil capacity28.0 LReference

Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.Reference

TransmissionPower ShiftReference

TypeAllis-ChalmersReference

Gears12 forward and 2 reverseReference

Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.Reference

PTO & Hydraulics

PTO (tested)113.6 kWReference

Typeclosed-center load-sensitiveReference

Valves2 or 3Reference

Pump flow83.3 lpmReference

Pump flow51.1 lpmReference

Total flow170.3 lpmReference

Steering flow36.0 lpmReference

Rear TypeIII/IIReference

Rear lift (at 24"/610mm)3030 kgReference

Rear lift (at 24"/610mm)3719 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Rear PTO Type1000Reference

Power at rated PTO speed115.7 kWReference

Capacities

Fuel227.1 LReference

Fuel94.6 LReference

Rear diff.63.2 LReference

Dimensions

2WD Wheelbase269 cmReference

4WD Wheelbase243 cmReference

Weight15305 to 16300 poundsReference

Front tire10.00-16Reference

Rear tire18.4-38Reference

2WD Ag front10.00-16Reference

4WD Ag front13.6-28Reference

Ag rear18.4-38Reference

2WD Ag front11.00-16Reference

2WD Ag front14L-16Reference

2WD Ag front18.4-16Reference

4WD Ag front14.9-28Reference

4WD Ag front14.9-24Reference

Ag rear20.8-38Reference

Ag rear18.4-42Reference

Ag rear16.9-38Reference

Length474 cmReference

Width242 cmReference

Width303 cmReference

4WD Clearance (front axle)44 cmReference

2WD Clearance (front axle)55 cmReference

Clearance (rear axle)71 cmReference

2WD6942 kgReference

4WD7393 kgReference

Ballasted8790 kgReference

8050 Serial Number Location

Serial number decal on the left side of the tractor's frame, just ahead of the fuel tank. Serial number also stamped into the casting at the rear of the tractor, above and to the left of the PTO shaft.Reference

8050 Serial Numbers

19811001Reference

19821016Reference

19831924Reference

19842496Reference

19853187Reference

Final3336Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps100Reference

Battery volts12Reference
