Tractor · 1960Unverified

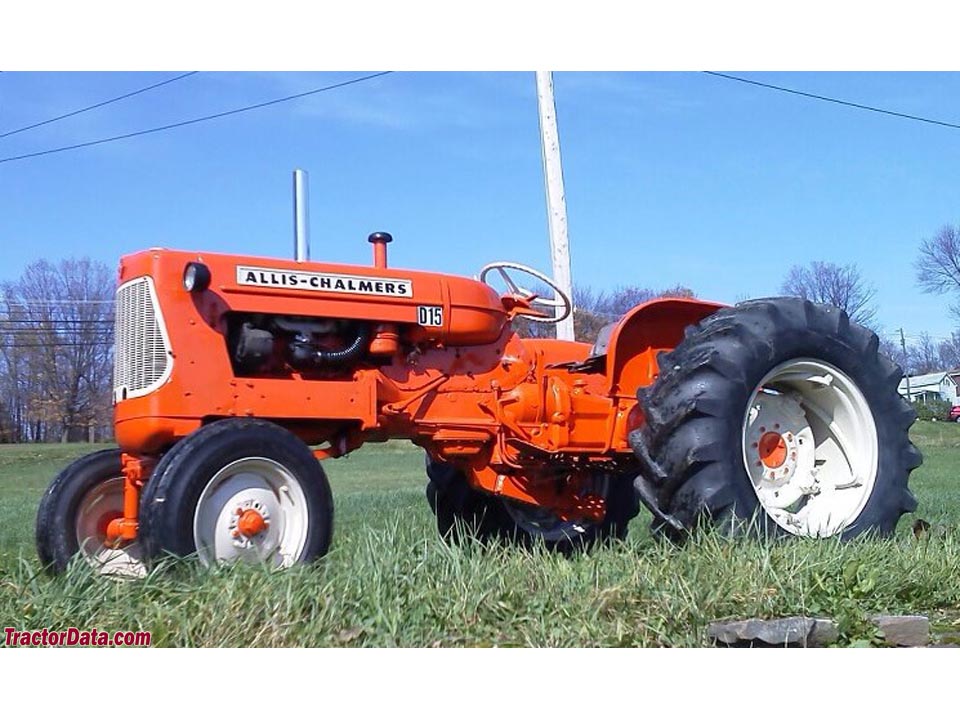

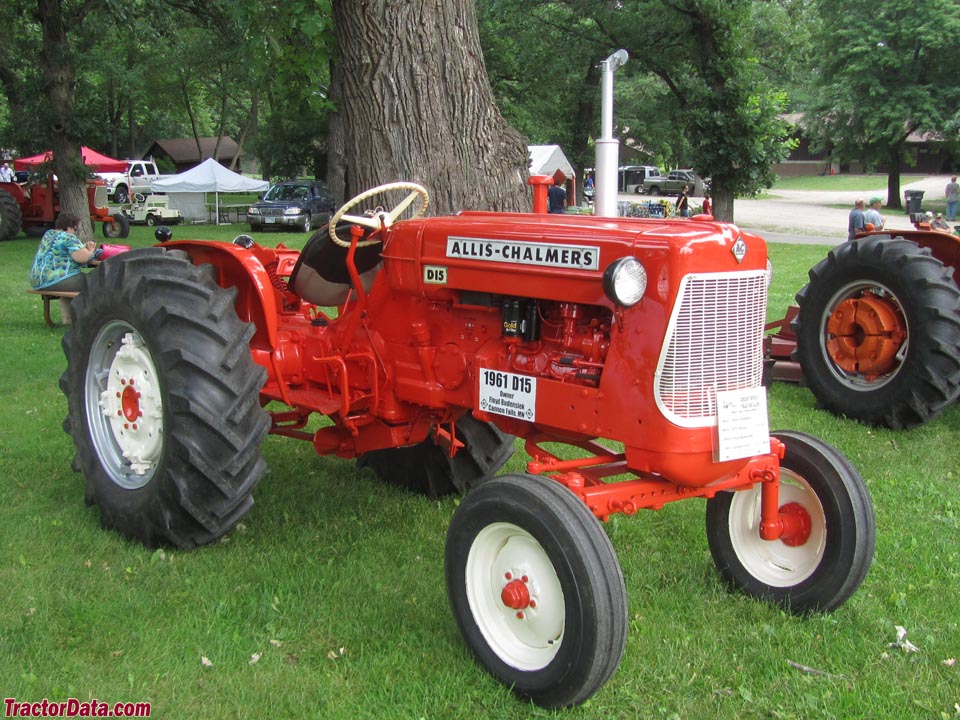

Allis Chalmers D15
Allis Chalmers D15 — Model year 1960-19631963-1968 · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Max power
26.3 kW
Weight
3985 to 4220 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built7,169 (total)Reference
Total built6,212 (gas/LP)Reference
Total built957 (diesel)Reference
The Allis-Chalmers D15 was an improved version of the D14, which it replaced in 1960. Higher power for the gas and LPG engines came from increased compression and RPMs. A diesel engine was also made available.Reference
Two-wheel driveReference
SteeringmanualReference
Steeringpower optionalReference
Expanding shoe brakesReference
Open operator station.Reference
Engine
Allis Chalmers 2.4L 4-cyl gasolineReference
Allis Chalmers 2.4L 4-cyl LP gasReference
Allis Chalmers 2.9L 4-cyl dieselReference
Drawbar (claimed)26.3 kWReference
Plows3Reference
Drawbar (tested)26.3 kWReference
Allis ChalmersReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke89 x 98 mmReference
Fuel use12.8 l/hourReference
Air cleaneroil bathReference
Compression7.75:1Reference
Rated RPM2000Reference
Firing order1-2-4-3Reference
Starter volts12Reference
Sparkplug gap0.635 mmReference
Point gap0.559 mmReference
Intake valve clearance0.229 mmReference
Exhaust valve clearance0.381 mmReference
LP gasReference
Fuel use15.1 l/hourReference
Compression8.9:1Reference
Allis Chalmers D-175Reference
dieselReference
Displacement2.9 LReference
Bore/Stroke90 x 111 mmReference
Fuel use10.9 l/hourReference
Compression15.35:1Reference
Firing order1-3-4-2Reference
Coolant capacity10.4 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.483 mmReference
Oil capacity4.7 LReference
Power at rated engine speed29.8 kWReference
Max power26.3 kWReference
Power at rated engine speed27.2 kWReference
Max power24.8 kWReference
Power at rated engine speed27.9 kWReference
Max power24.8 kWReference
Transmission
8-speed partial power shiftReference
4-speedReference
TransmissionPower DirectorReference
Typepartial power shiftReference
Gears8 forward and 2 reverseReference
Oil capacity14.0 LReference
Oil typeSAE80EPReference
The transmission is controlled by means of the gear shift lever and the Power Director lever. The tractor must be stopped, and clutch used, to select one of four forward gears, or reverse. The Power Director lever has high, low, and neutral positions. The Power Director can be shifted on the move without clutching. Placing the Power Director into neutral causes the tractor to stop while keeping the PTO engaged.Reference
TransmissionshuttleReference
Gears4 forward and reverseReference
The shuttle transmission is controlled using the gear shift lever and the shuttle control lever. The tractor must be stopped, and clutch used, to select one of four speeds with the gear shift. The shuttle control lever enables a shift between forward, reverse, or neutral without clutching. A PTO could be ordered on the industrial D15 with the shuttle, but it ran at 875 RPMs.Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
PTO (tested)29.8 kWReference
Hydraulic system9.5 LReference
Capacity9.5 LReference
Pressure158.6 barReference
Rear TypeII/IReference
TypeSnap-CouplerReference
Rear PTOliveReference
Rear PTO Type540Reference
Power at rated PTO speed25.2 kWReference
Power at rated PTO speed25.6 kWReference
Power at rated PTO speed23.0 kWReference
Capacities
Fuel60.6 LReference
Fuel59.6 LReference
Diameter22 cmReference
Width16 cmReference
RPM1678Reference
Speed1205.79 meters/minReference
Dimensions
Wheelbase223 cmReference
Weight3985 to 4220 poundsReference
Front tire5.50-16Reference
Rear tire12.4-26Reference
Ag front5.50-16Reference
Ag rear12.4-26Reference
Ag front6.00-16Reference
Ag front7.50-16Reference
Ag rear13.6-26Reference
Ag rear14.9-26Reference
Length331 cmReference
Width170 cmReference
Height (hood)145 cmReference
Height (exhaust)203 cmReference
Clearance (front axle)53 cmReference
Clearance (rear axle)61 cmReference
Front tread129 to 198 cmReference
Rear tread137 to 203 cmReference
Rear tread137 to 223 cmReference
Operating1807 kgReference
Operating1830 kgReference
Operating1914 kgReference
Ballasted3436 kgReference
D15 Serial Numbers
Location:Torque housingReference
19601001Reference
19611900Reference
19626470Reference
Final8169Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Batteries1 (gas/LP)Reference
Batteries2 (diesel)Reference
Battery volts12Reference
Battery AH70Reference
Test results
NTTL 795: gasoline 8-speed 2WDReference
NTTL 796: diesel 8-speed 2WDReference
NTTL 797: LP gas 8-speed 2WDReference
Gasoline 8-speed 2WDMay 12 - 23, 1961Link: Nebraska Tractor Test 795 fileReference
PTO performanceReference
Fuel use12.9 l/hourReference
Fuel use10.6 l/hourReference
Drawbar performanceReference
Gear 3-Low used for power test.Reference
Max pull2542 kgReference
Gear 1-Low used for pull test.Reference
Diesel 8-speed 2WDMay 12 - 26, 1961Link: Nebraska Tractor Test 796 fileReference
Fuel use11.0 l/hourReference
Fuel use9.5 l/hourReference
Fuel use11.4 l/hourReference
Max pull2602 kgReference
LP gas 8-speed 2WDMay 12 - 26, 1961Link: Nebraska Tractor Test 797 fileReference
Fuel use15.1 l/hourReference
Fuel use12.5 l/hourReference
Max pull2571 kgReference
Speeds
With 12.4-26 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
