Tractor · 1954Unverified

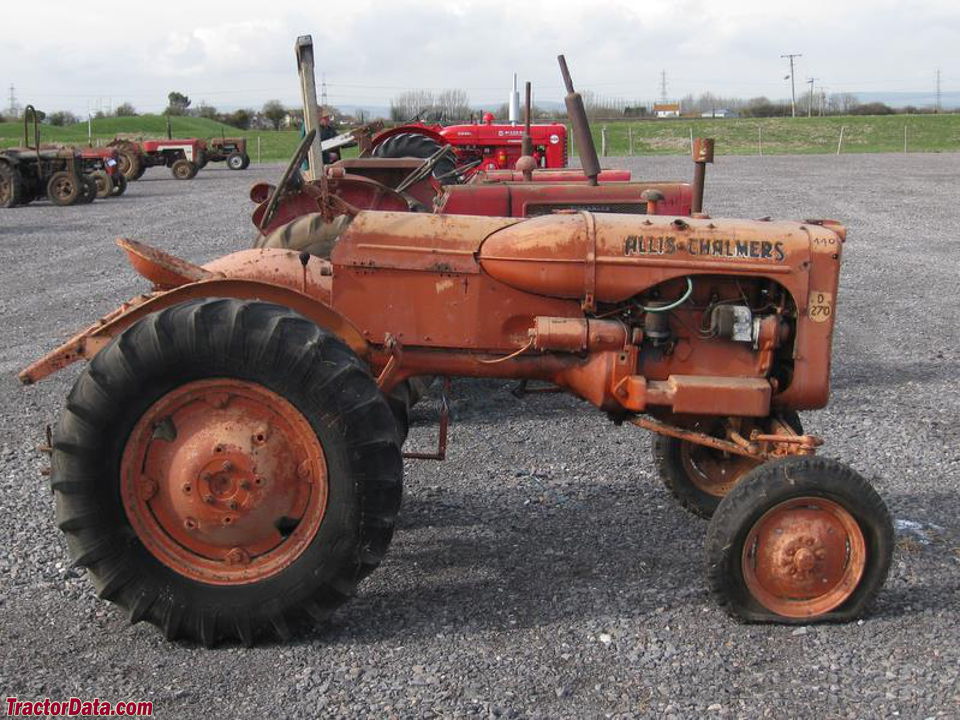

Allis Chalmers D270
Allis Chalmers D270 · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2500 to 2700 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Built in Essendine, Lincolnshire, EnglandReference
Two-wheel driveReference
Open operator station.Reference
Engine
Allis-Chalmers 2.1L 4-cyl gasolineReference
Perkins 2.4L 3-cyl dieselReference
Allis Chalmers 2.1L 4-cyl keroseneReference
Fuel tank37.9 LReference
Engine20.5 kWReference
Plows2 (16-inch)Reference
Allis-ChalmersReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke86 x 89 mmReference
Power20.1 kWReference
Compression5.75:1Reference
Rated RPM1650Reference
Firing order1-2-4-3Reference
Starter volts12Reference
Oil capacity3.3 LReference
Coolant capacity7.6 LReference
Perkins P-3Reference
dieselReference
3-cylinderReference
Displacement2.4 LReference
Bore/Stroke89 x 127 mmReference
Power20.5 kWReference
Rated RPM1600Reference
Coolant capacity5.7 LReference
Allis ChalmersReference
keroseneReference
Power16.4 kWReference
Transmission
4-speed sliding gearReference
Typesliding gearReference
Gears4 forward and 1 reverseReference
Clutchsingle drive plate discReference
Oil capacity4.7 LReference
PTO & Hydraulics
TypeAllis Snap CouplerReference
Rear PTOliveReference
Rear PTO Type540 (1-3/8)Reference
Dimensions
Wheelbase189 cmReference
Weight2500 to 2700 poundsReference
Front tire5.00-15Reference
Rear tire9-24Reference
Ag front5.00-15Reference
Ag rear9-24Reference
Ag rear10-24Reference
Length304 cmReference
Width212 cmReference
Height198 cmReference
Weight1134 kgReference
Weight1224 kgReference
Clearance (drawbar)34 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
