Tractor · Unverified

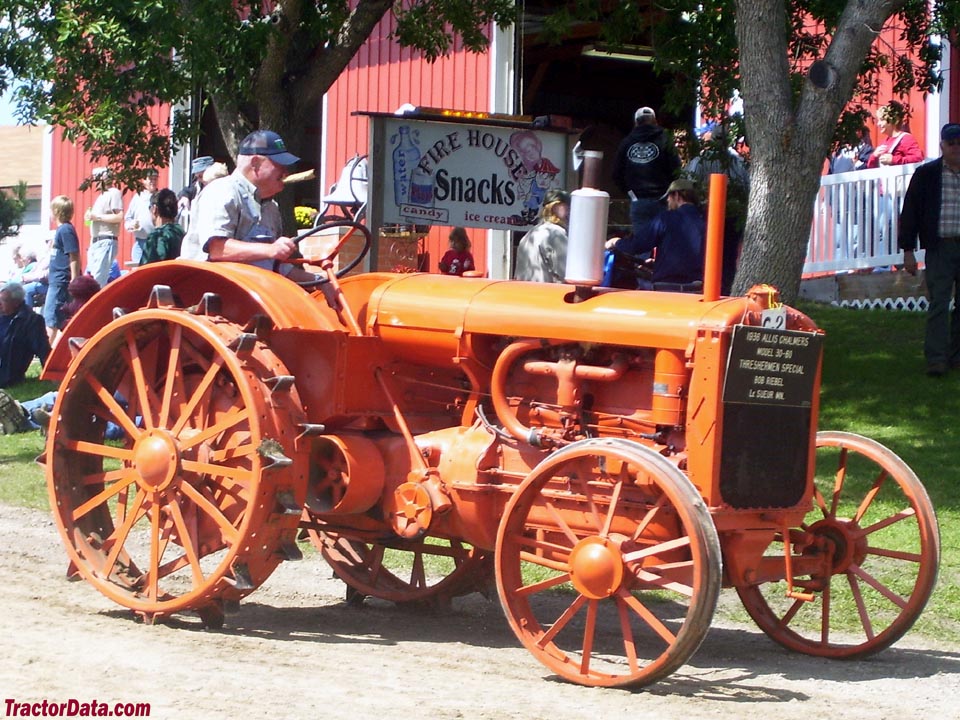

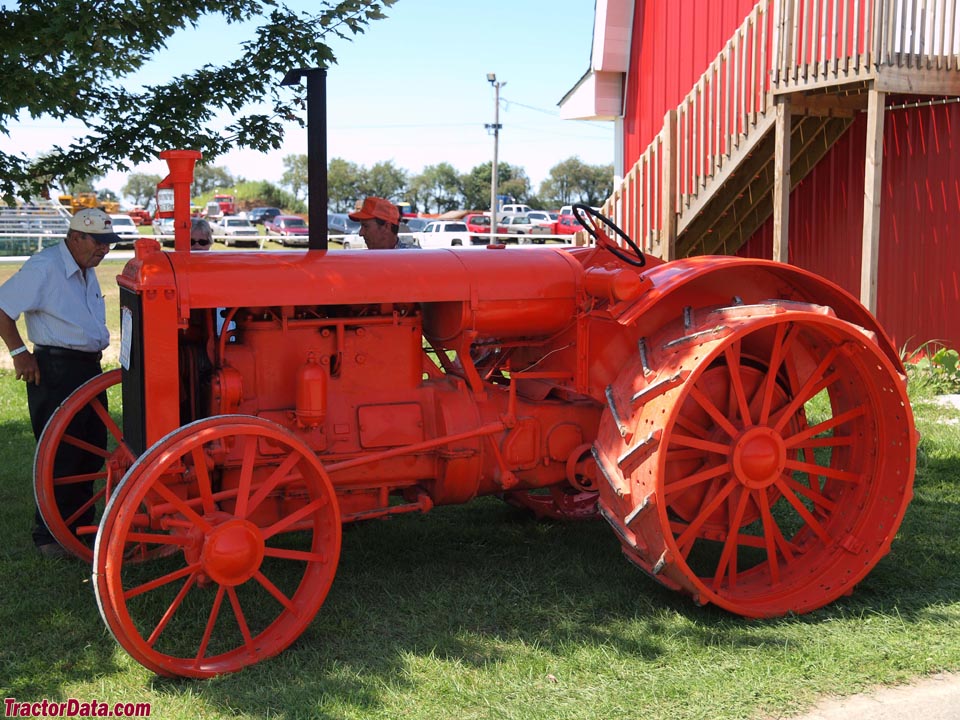

Allis Chalmers E 30-60 Threshermans Special
Allis Chalmers E 30-60 Threshermans Special — Standard-tread tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2848 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Standard-tread tractorReference
Total built70 (estimated)Reference
Original price$1,025 (1934)Reference
Similar to the basic E 25-40, the Allis-Chalmers model E Thresherman's Special was rated at 60 belt horsepower due to larger bore pistons. The tractor was intended for stationary belt work, and plowing was not covered by the warranty.Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
Allis Chalmers gasolineReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)44.7 kWReference
Allis ChalmersReference
gasolineReference
liquid-cooledReference
Bore/Stroke133 x 165 mmReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2848 kgReference
Shipping weight2848 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
