Tractor · 1929Unverified

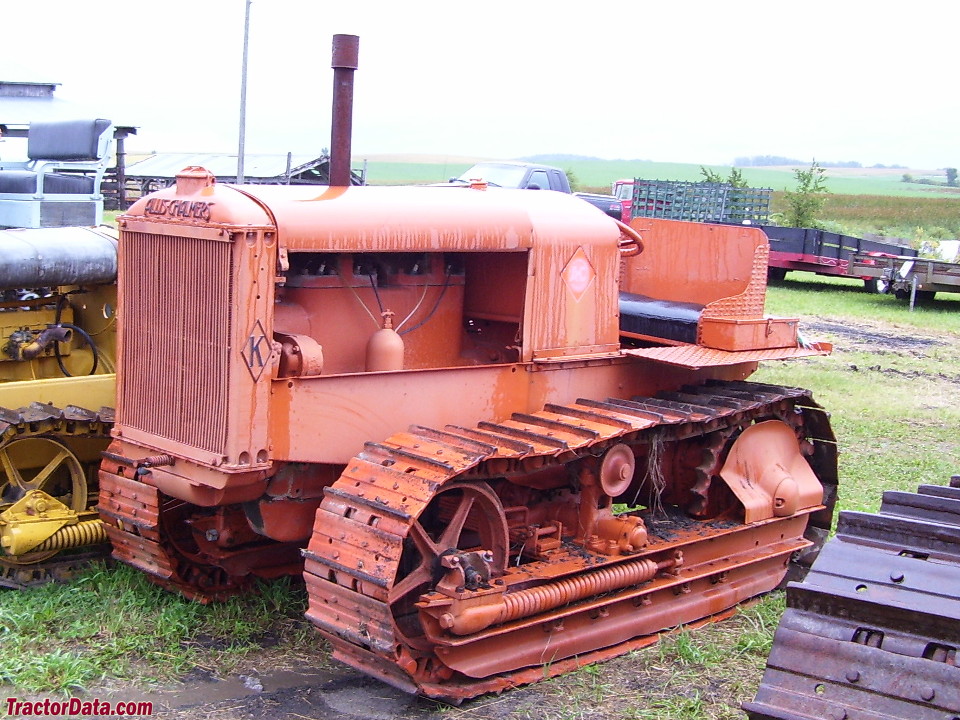

Allis Chalmers K

Allis Chalmers K — Agricultural Crawler tractor · 36 hp. Reference specifications; pending source verification.

The Allis Chalmers K is a compact tractor rated at 36 hp, manufactured from 1929 to 1943. It features a 4-cylinder diesel liquid-cooled engine, driving through a tracked undercarriage with a 3-speed gearbox. The listed weight of the Allis Chalmers K is 5216 kg, suitable for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
36 hp
Max power
35.7 kW
Weight
5216 kg

Catalogue coverage

Variants represented
2
Richest spec table
70 rows
Recorded power
36 hp
Recorded weight
5216 kg
Transmissions
3-speed gear
Production years
1929-1943
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAllis ChalmersReference
Agricultural Crawler tractorReference
Built in Springfield, Illinois, USAReference
Total built9,468Reference
DrivecrawlerReference
Open operator station.Reference

Variants

KgasolineReference
WKwide gasReference
KOdieselReference
WKOwide dieselReference

Engine

Allis Chalmers 8.4L 4-cyl gasolineReference
Fuel tank147.6 LReference
Drawbar (claimed)26.5 kWReference
Belt (claimed)36.8 kWReference
Drawbar (tested)40.0 kWReference
Belt (tested)46.4 kWReference
Allis ChalmersReference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement8.4 LReference
Bore/Stroke127 x 165 mmReference
Air cleaneroil bathReference
Compression5.2:1Reference
Rated RPM1050Reference
Coolant capacity41.6 LReference
Belt power (max)41.2 kWReference
Max power35.7 kWReference
Belt power (max)46.4 kWReference
Max power40.0 kWReference

Transmission

3-speed gearReference
4-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
The three-speed transmission was used on early models.Reference
Gears4 forward and 1 reverseReference
Oil capacity20.8 LReference
The four-speed transmission was introduced in 1935 at tractor serial number 4451.Reference

Dimensions

Weight5216 kgReference
15-inch tracksReference
Length314 cmReference
K Width167 cmReference
Height (hood)162 cmReference
K Gauge121 cmReference
WK Gauge160 cmReference

K Serial Numbers

Location:Serial number on the transmission case or instrument panelReference
19291Reference
193049Reference
19311373Reference
19322334Reference
19332654Reference
19343046Reference
19353594Reference
19364793Reference
FAQ: How to read a serial number table.Reference

Allis Chalmers K Tracks

Width38 cmReference
Length on ground170 cmReference
Area on ground1.3 m²Reference
Ground pressure0.4 barReference

Test results

NTTL 215: gasoline 3-speed crawlerReference
NTTL 336: gasoline 4-speed crawlerReference
Gasoline 3-speed crawlerSeptember 21 - October 4, 1933Link: Nebraska Tractor Test 215 fileReference
Belt fuel use (max)22.3 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull4021 kgReference
Gear 1 used for pull test.Reference
Gasoline 4-speed crawlerNovember 21 - 27, 1939Link: Nebraska Tractor Test 336 fileReference
Belt fuel use (max)23.5 l/hourReference
Max pull5345 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
