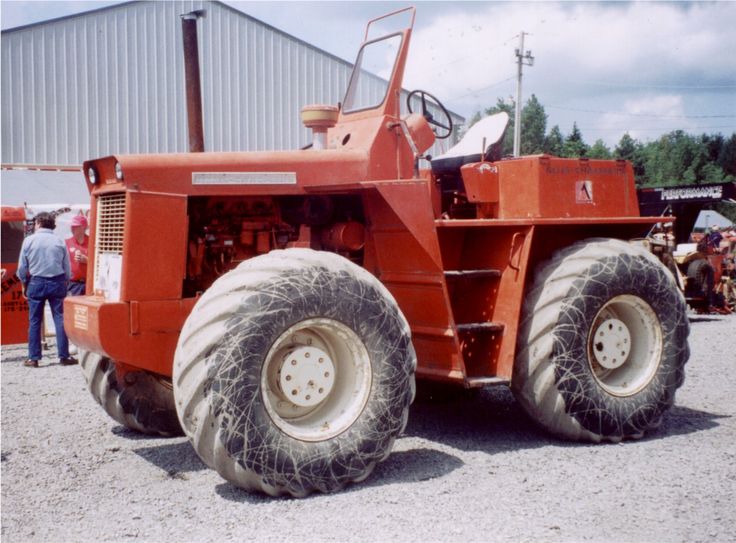

Allis Chalmers T16
Allis Chalmers T16 — Four-wheel Drive (4WD) tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
7393 kg
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Four-wheel Drive (4WD) tractorReference
Built in Deerfield, Illinois, USAReference
Total built15Reference
The Allis-Chalmers T16 was based on the TL16 industrial loader. In field work, the tractor suffered from problems with the engine and transmission. Yellow versions of the tractor were sold through the Allis industrial division as the "Sugar Babe" for use in cane fields as a haulage tractor.Reference
Drive4x4 4WDReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic brakesReference
Open operator station.Reference
Engine
Allis Chalmers 5.6L 4-cyl dieselReference
Allis Chalmers 7.0L 6-cyl dieselReference
Fuel tank283.9 LReference
Engine100.7 kWReference
Allis Chalmers 7000Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement5.6 LReference
Bore/Stroke113 x 141 mmReference
Power100.7 kWReference
Air cleanerdryReference
Rated RPM2200Reference
Torque488.2 NmReference
Torque RPM1650Reference
StarterelectricReference
Starter volts24Reference
Allis ChalmersReference
6-cylinderReference
The four-cylinder 7.0L engine was introduced at serial number 1910 due to problems with the original four-cylinder engine.Reference
Displacement7.0 LReference
Bore/Stroke108 x 127 mmReference
Starter typeelectricReference
Transmission
4-speed power shift with torque converterReference
TransmissionAllison Torq-maticReference
Typepower shift with torque converterReference
Gears4 forward and 2 reverseReference
Dimensions
Wheelbase243 cmReference
Weight7393 kgReference
Front tire20.5-25Reference
Rear tire20.5-25Reference
Standard tires (ag)Front: 20.5-25. Rear: 20.5-25Reference
Optional tires (ag)Front: 23.5-25. Rear: 23.5-25Reference
Length435 cmReference
Width233 cmReference
Height220 cmReference
Shipping weight7393 kgReference
Ground clearance43 cmReference
Front tread188 cmReference
Rear tread188 cmReference
Electrical
Charging systemgeneratorReference
Batteries2Reference
Battery volts12Reference
Speeds
With 20.5-25 tires.Reference
