Tractor · 1953Unverified

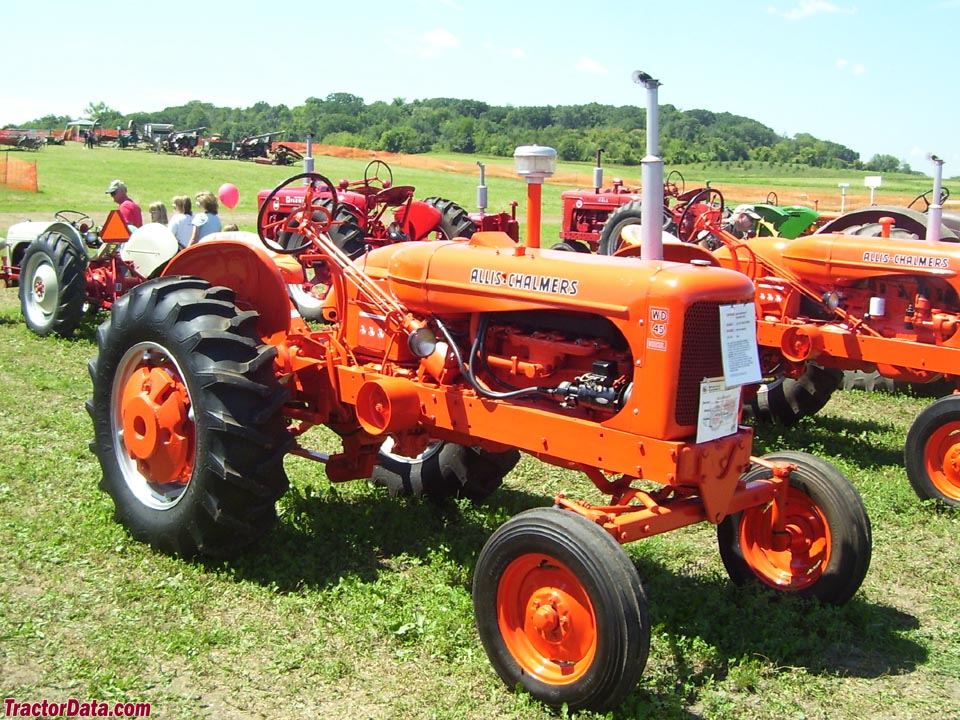

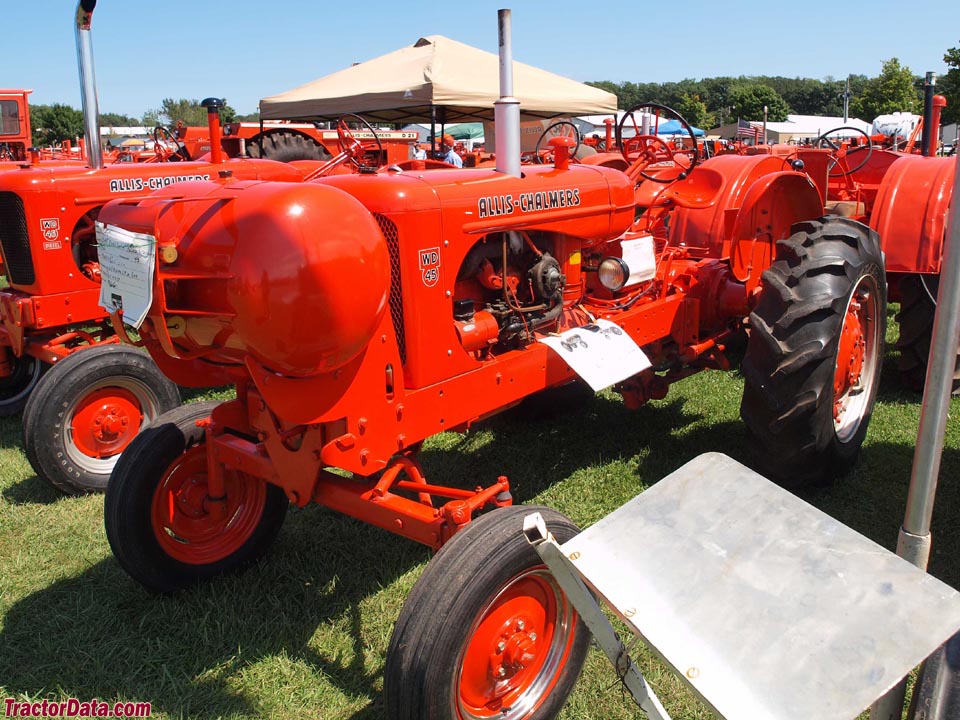

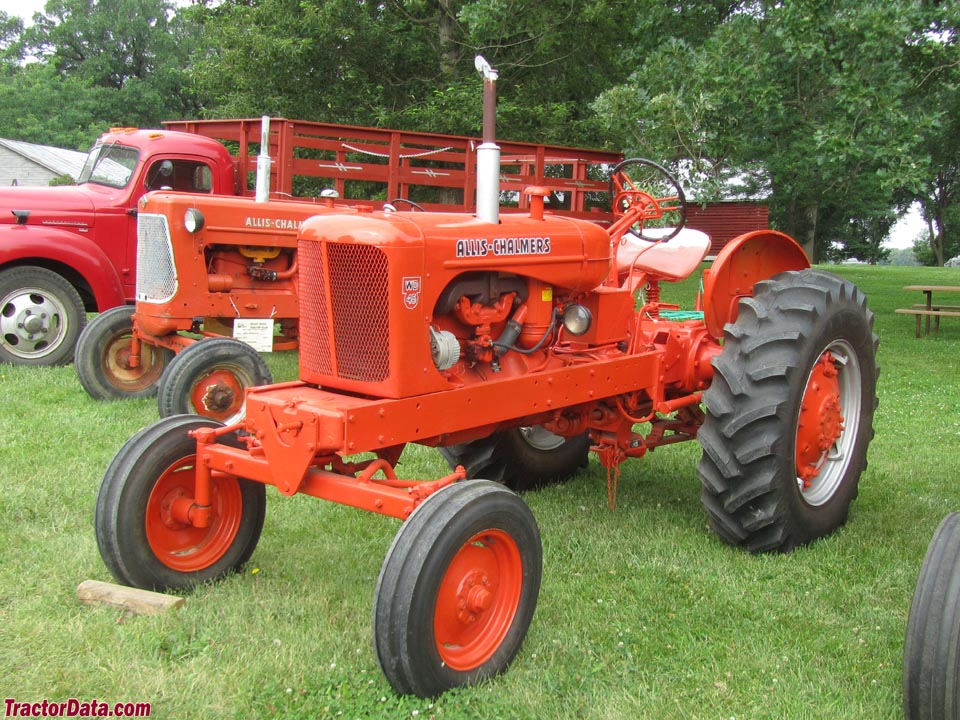

Allis Chalmers WD45
Allis Chalmers WD45 — Row-Crop tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Max power
28.2 kW
Weight
3995 to 4285 pounds
Hover a source tag to verify
Overview
ManufacturerAllis ChalmersReference
Row-Crop tractorReference
Built in West Allis, Wisconsin, USAReference
Total built90,382 (total)Reference
Total built83,536 (gasoline)Reference
Total built6,509 (diesel)Reference
Original price was $2,400 in 1956Reference
The WD45 was the first Allis-Chalmers tractor available with power steering. The diesel engine became available after Allis-Chalmers acquired Buda, and put the 6BD-230 engine in the tractor. The WD45 is considered by many to be one of the most important tractors built by Allis-Chalmers. At the time, it was the most powerful tractor for its size.Reference
Two-wheel driveReference
SteeringmechanicalReference
SteeringpowerReference
Mechanical band brakesReference
Open operator station. Optional Allis-Chalmers Half Cab with windshield and vinyl sides.Reference
Engine
Allis-Chalmers 3.7L 4-cyl gasolineReference
Allis-Chalmers 3.7L 4-cyl tractor fuelReference
Allis-Chalmers 3.7L 4-cyl LP gasReference
Allis-Chalmers 3.8L 6-cyl dieselReference
Plows4Reference
Drawbar (tested)29.5 kWReference
Belt (tested)32.9 kWReference
Allis-ChalmersReference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement3.7 LReference
Bore/Stroke102 x 114 mmReference
Compression6.45:1Reference
Rated RPM1400Reference
Torque390.5 NmReference
Torque RPM867Reference
Firing order1-2-4-3Reference
Starter volts6Reference
Sparkplug gap0.762 mmReference
Point gap0.508 mmReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
tractor fuelReference
Compression4.75:1Reference
LP gasReference
Compression7.2:1Reference
Torque374.3 NmReference
Torque RPM1250Reference
dieselReference
6-cylinderReference
Available after October of 1954Reference
Displacement3.8 LReference
Bore/Stroke87 x 105 mmReference
Air cleaneroil bathReference
Compression15.5:1Reference
Rated RPM1625Reference
Torque351.2 NmReference
Torque RPM1169Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Coolant capacity16.1 LReference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.483 mmReference
Oil capacity6.6 LReference
Belt power (max)32.2 kWReference
Max power28.2 kWReference
Belt power (max)24.6 kWReference
Max power22.0 kWReference
Belt power (max)32.9 kWReference
Max power28.7 kWReference
Belt power (max)32.3 kWReference
Max power29.5 kWReference
Transmission
4-speed sliding gearReference
Typesliding gearReference
Gears4 forward and 1 reverseReference
Clutch178mm wet discReference
Oil capacity16.1 LReference
Oil typeSAE 80EPReference
Capacities
Fuel56.8 LReference
Diameter22 cmReference
Width16 cmReference
RPM1458Reference
PTO & Hydraulics
Hydraulic system5.7 LReference
Capacity5.7 LReference
Oil type[7oC]Reference
45oF [7oC]↑: SAE20WReference
45oF [7oC]↓: SAE10WReference
TypeSnap-CouplerReference
Rear PTOliveReference
Clutch254mm dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM548@1400Reference
Dimensions
Wheelbase223 cmReference
Weight3995 to 4285 poundsReference
Front tire5.50-16Reference
Rear tire12-28Reference
Ag front5.50-16Reference
Ag rear12-28Reference
Ag rear13-28Reference
Length325 cmReference
Height (steering wheel)172 cmReference
Height (exhaust)207 cmReference
Gas Weight1812 kgReference
Diesel Weight1943 kgReference
Ground clearance73 cmReference
Rear tread141 to 228 cmReference
WD45 Serial Numbers
Location:left brake housingReference
1953146607Reference
1954160386Reference
1955190993Reference
1956217992Reference
1957230295Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Gas Batteries1Reference
Diesel Batteries2Reference
Battery volts6Reference
Battery AH115Reference
Test results
NTTL 499: gasoline 4-speed 2WDReference
NTTL 511: distillate 4-speed 2WDReference
NTTL 512: LP gas 4-speed 2WDReference
NTTL 563: diesel 4-speed 2WDReference
Gasoline 4-speed 2WDJuly 29 - August 10, 1953Link: Nebraska Tractor Test 499 fileReference
Belt fuel use (max)14.4 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull2468 kgReference
Gear 1 used for pull test.Reference
Distillate 4-speed 2WDOctober 26 - 31, 1953Link: Nebraska Tractor Test 511 fileReference
Belt fuel use (max)12.5 l/hourReference
Max pull2101 kgReference
LP gas 4-speed 2WDOctober 26 - November 4, 1953Link: Nebraska Tractor Test 512 fileReference
Belt fuel use (max)18.9 l/hourReference
Max pull2458 kgReference
Diesel 4-speed 2WDOctober 4 - 11, 1955Link: Nebraska Tractor Test 563 fileReference
Belt fuel use (max)11.7 l/hourReference
Max pull2679 kgReference
Speeds
with 12x28 rear tires.Reference
