Tractor · Unverified

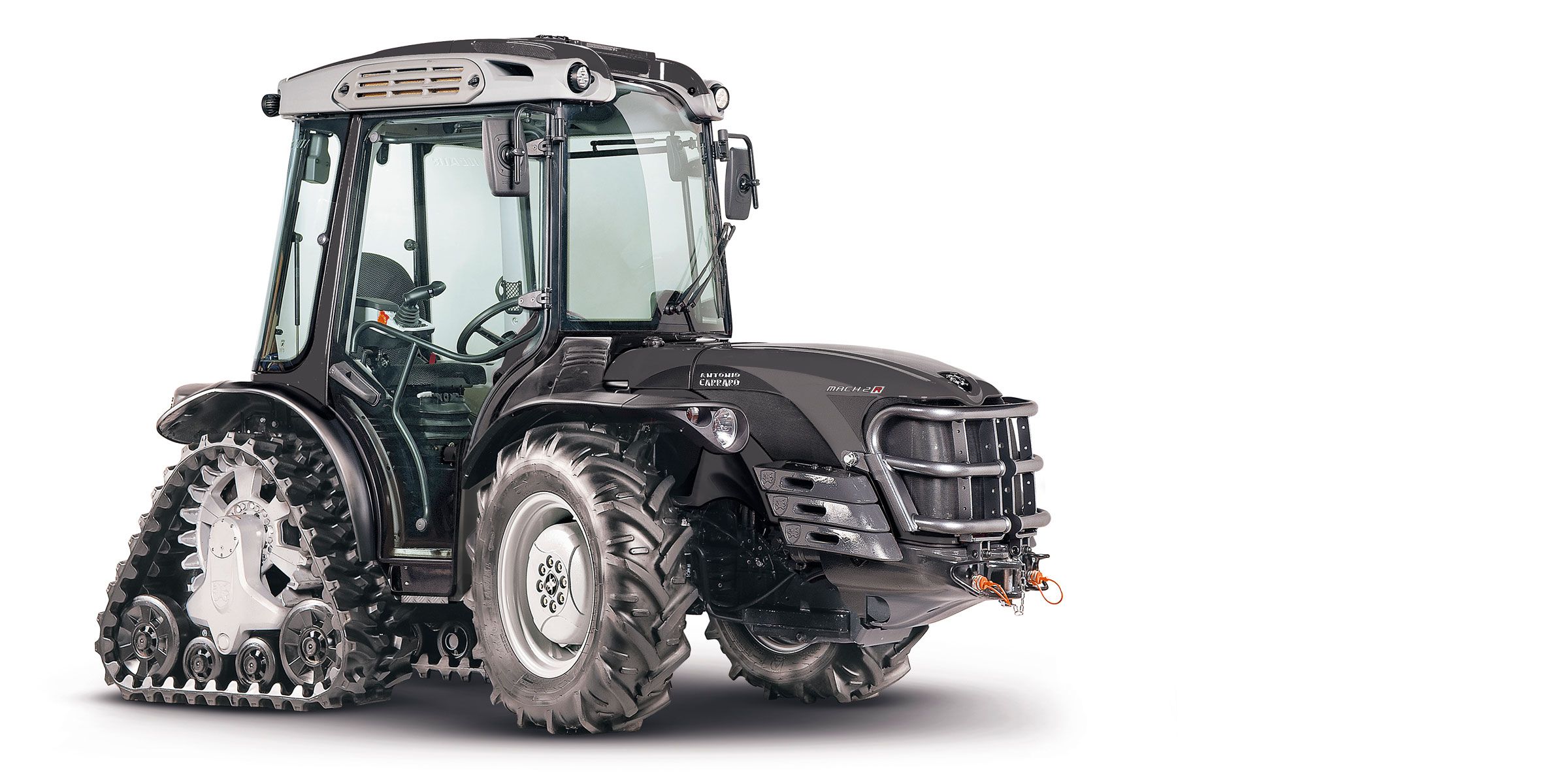

Antonio Carraro Mach 2
Antonio Carraro Mach 2 — Half-track Crawler tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
6504 to 6834 pounds
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Half-track Crawler tractorReference
Built in ItalyReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Differential lockelectro-hydraulic front optionalReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Optional StarLight cab with air-conditioning.Reference
Variants
Mach 2articulated half-trackReference
Mach 4articulated crawlerReference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Fuel tank50.0 LReference
Engine (gross)64.9 kWReference
YanmarReference
turbocharged intercooled dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
EmissionsStage 3AReference
Rated Power (gross)64.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque286.8 NmReference
Torque RPM1850Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2300 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Front PTOindependent (optional)Reference
Front PTO Type1000Reference
Dimensions
Wheelbase146 cmReference
Weight6504 to 6834 poundsReference
Front tire11.2R20Reference
Rear tiretracksReference
Ag front11.2R20Reference
Ag reartracksReference
Length355 cmReference
Width147 cmReference
Height (ROPS)242 cmReference
Height (cab)219 cmReference
Weight2950 kgReference
Weight3099 kgReference
Ground clearance33 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
