Tractor · Unverified

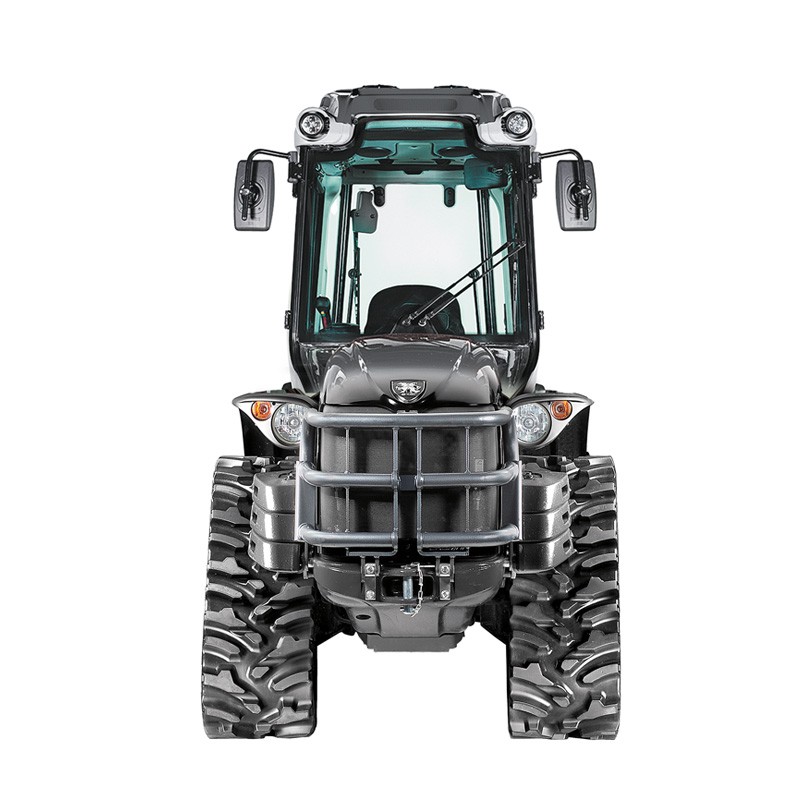

Antonio Carraro Mach 4
Antonio Carraro Mach 4 — Articulated Crawler tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
6725 to 7055 pounds
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Articulated Crawler tractorReference
Built in ItalyReference
Drivearticulated crawlerReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Optional StarLight cab with air-conditioning.Reference
Variants
Mach 2articulated half-trackReference
Mach 4articulated crawlerReference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine (gross)64.9 kWReference
YanmarReference
dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
EmissionsStage 3AReference
Rated Power (gross)64.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque286.8 NmReference
Torque RPM1850Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift2399 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Front PTOindependent (optional)Reference
Front PTO Type1000Reference
Dimensions
Wheelbase150 cmReference
Weight6725 to 7055 poundsReference
TracksReference
Length352 cmReference
Width130 cmReference
Height (ROPS)236 cmReference
Height (cab)218 cmReference
Weight3050 kgReference
Weight3200 kgReference
Ground clearance32 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
