Tractor · Unverified

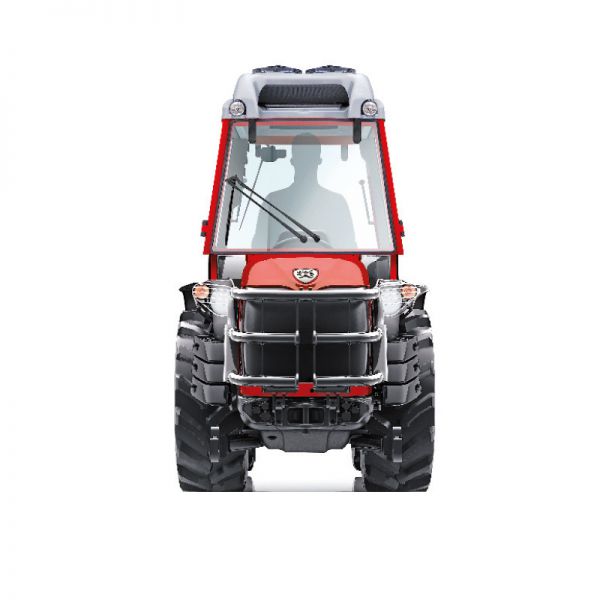

Antonio Carraro SX 7800S

Name: Antonio Carraro SX 7800S
Brand: Antonio Carraro

Antonio Carraro SX 7800S — Utility tractor · 71 hp. Reference specifications; pending source verification.

The Antonio Carraro SX 7800S is a tractor with a rated power output of approximately 71 hp, a mid-range figure for its class. It features a 4-cylinder diesel liquid-cooled engine and a four-wheel drive system with a 16-speed gearbox. The tractor has an operating weight listed as 4773 to 4971 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Weight

4773 to 4971 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

71 hp

Recorded weight

2165 kg

Transmissions

16-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAntonio CarraroReference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Steeringhydraulic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional StarLight cab with air-conditioning.Reference

Engine

Yanmar 3.3L 4-cyl dieselReference

Fuel tank50.0 LReference

Engine (gross)52.9 kWReference

YanmarReference

dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

EmissionsStage 3AReference

Rated Power (gross)52.9 kWReference

Fuel systemdirect injectionReference

Rated RPM2500Reference

Torque236.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and reverseReference

PTO & Hydraulics

Rear TypeII/IReference

Rear lift2419 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E (1.375)Reference

Dimensions

Wheelbase156 cmReference

Weight4773 to 4971 poundsReference

Front tire9.5R20Reference

Rear tire9.5R20Reference

Ag front9.5R20Reference

Ag front300/70R20Reference

Ag front280/85R20Reference

Ag front320/70R20Reference

Ag front340/65R18Reference

Ag rear9.5R20Reference

Ag rear300/70R20Reference

Ag rear280/85R20Reference

Ag rear320/70R20Reference

Ag rear340/65R18Reference

Length346 cmReference

Width105 cmReference

Height (ROPS)236 cmReference

Height (cab)229 cmReference

Weight2165 kgReference

Weight2254 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
