Tractor · Unverified

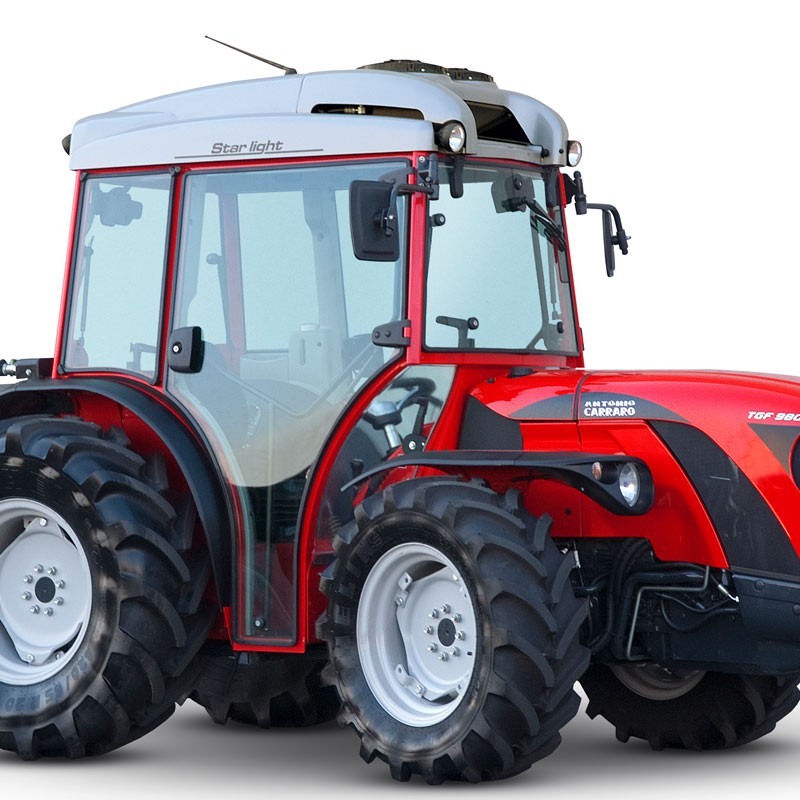

Antonio Carraro TGF 7800S

Name: Antonio Carraro TGF 7800S
Brand: Antonio Carraro

Antonio Carraro TGF 7800S — Utility tractor · 71 hp. Reference specifications; pending source verification.

The Antonio Carraro TGF 7800S is a tractor with a rated power output of 71 hp, positioning it within the middle of its class. It is equipped with a 4-cylinder diesel liquid-cooled engine, which powers four-wheel drive through a 16-speed gearbox. The tractor's weight ranges from 5093 to 5335 pounds. This model is suitable for farming tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

71 hp

Weight

5093 to 5335 pounds

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

71 hp

Recorded weight

2310 kg

Transmissions

16-speed

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerAntonio CarraroReference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Steeringhydraulic powerReference

Hydraulic wet disc brakesReference

Two-post foldable ROPS. Optional StarLight cab with air-conditioning. Optional low-profile Protector S cab.Reference

Engine

Yanmar 3.3L 4-cyl dieselReference

Fuel tank60.2 LReference

Engine (gross)52.9 kWReference

YanmarReference

dieselReference

4-cylinder 16-valveReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

EmissionsStage 3AReference

Rated Power (gross)52.9 kWReference

Fuel systemdirect injectionReference

Rated RPM2500Reference

Torque236.1 NmReference

Torque RPM1600Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and reverseReference

PTO & Hydraulics

Rear TypeII/IReference

Rear lift2300 kgReference

Rear PTOindependentReference

Rear PTO Type540/540E (1.375)Reference

Dimensions

Wheelbase146 cmReference

Wheelbase152 cmReference

Weight5093 to 5335 poundsReference

Front tire8.25-16Reference

Rear tire11.2R20Reference

Standard tires (ag)Front: 8.25-16. Rear: 11.2R20Reference

Standard tires (ag)Front: 250/80-16. Rear: 320/70R20Reference

Standard tires (ag)Front: 300/80-15.3. Rear:Reference

Standard tires (ag)Front: 360/70R20. Rear:Reference

Standard tires (ag)Front: 280/70-18. Rear: 360/70R20Reference

Standard tires (ag)Front: 320/70R20. Rear: 360/70R24Reference

Length344 cmReference

Length352 cmReference

Width133 cmReference

Weight2310 kgReference

Weight2419 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Antonio Carraro TGF 7800S Height

ROPS229 cmReference

Cab219 cmReference

Cab180 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
