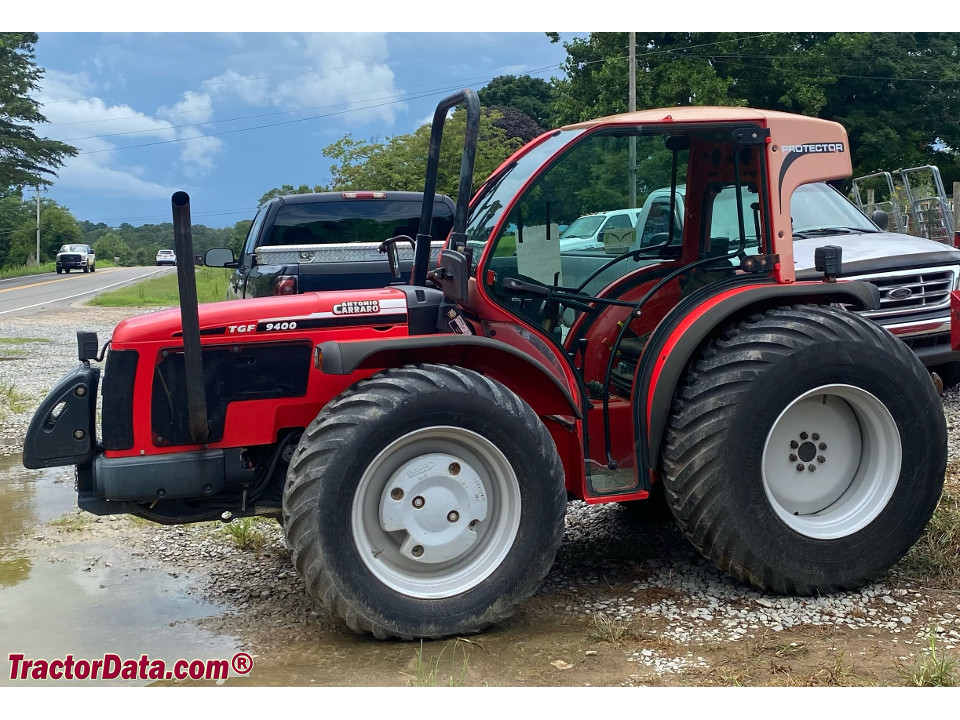

Antonio Carraro TGF 9400S
Antonio Carraro TGF 9400S — Utility tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5027 to 5269 pounds
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Optional StarLight cab with air-conditioning. Optional low-profile Protector S cab.Reference
Engine
VM Motori 3.0L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)64.9 kWReference
VM Motori D754Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke94 x 107 mmReference
EmissionsStage 3AReference
Rated Power (gross)64.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2600Reference
Torque380.1 NmReference
Torque RPM1000Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear lift2300 kgReference
Rear PTOindependentReference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase146 cmReference
Wheelbase152 cmReference
Weight5027 to 5269 poundsReference
Front tire8.25-16Reference
Rear tire11.2R20Reference
Standard tires (ag)Front: 8.25-16. Rear: 11.2R20Reference
Standard tires (ag)Front: 250/80-16. Rear: 320/70R20Reference
Standard tires (ag)Front: 300/80-15.3. Rear:Reference
Standard tires (ag)Front: 360/70R20. Rear:Reference
Standard tires (ag)Front: 280/70-18. Rear: 360/70R20Reference
Standard tires (ag)Front: 320/70R20. Rear: 360/70R24Reference
Length344 cmReference
Length352 cmReference
Width133 cmReference
Weight2280 kgReference
Weight2390 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Antonio Carraro TGF 9400S Height
ROPS229 cmReference
Cab219 cmReference
Cab180 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
