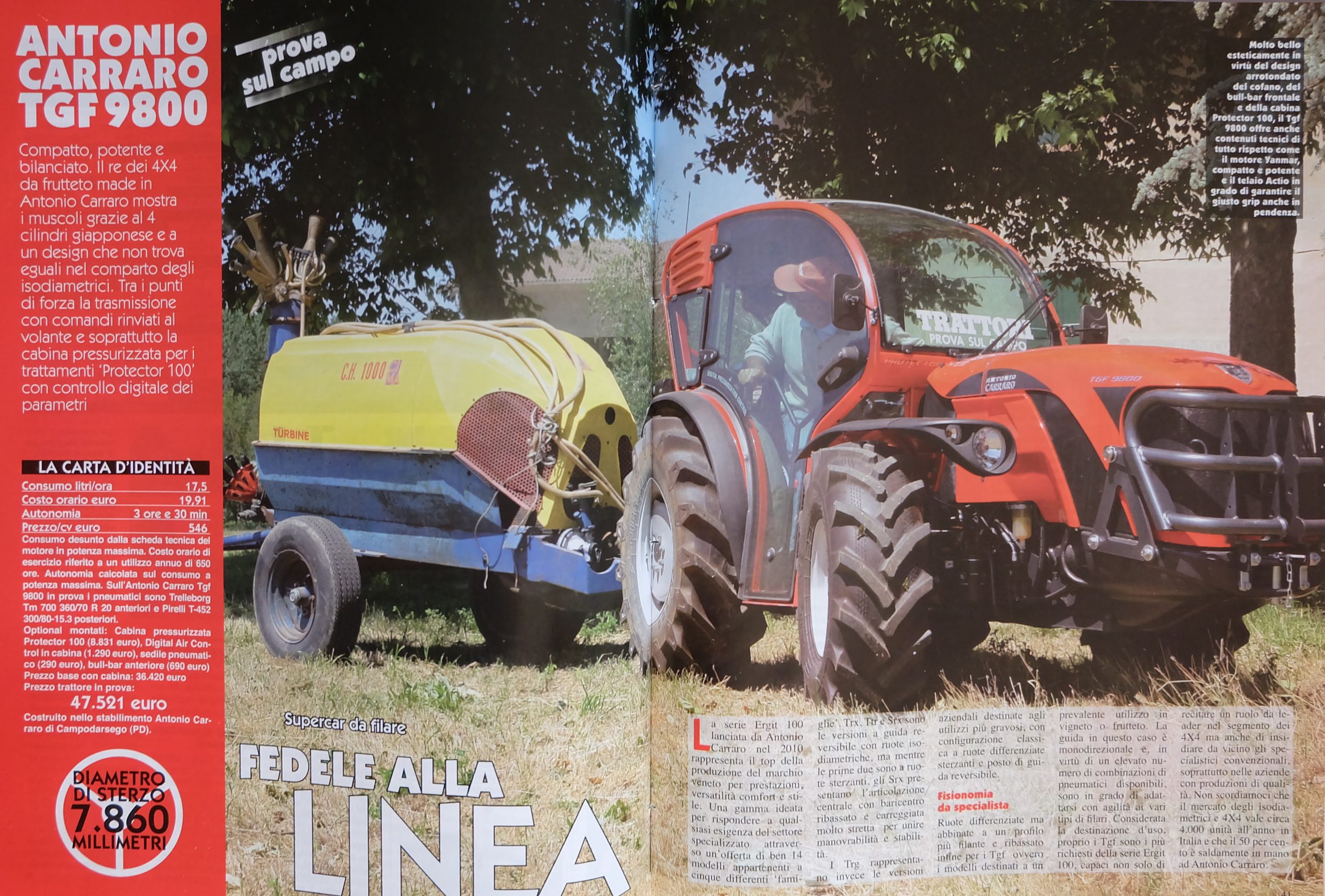

Antonio Carraro TGF 9800
Antonio Carraro TGF 9800 — Ergit 100 SeriesOrchard/Vineyard tractor · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
5313 to 5534 pounds
Hover a source tag to verify
Overview
ManufacturerAntonio CarraroReference
Orchard/Vineyard tractorReference
Built in ItalyReference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Differential lockelectro-hydraulic front optionalReference
Steeringhydraulic powerReference
Hydraulic wet disc brakesReference
Two-post foldable ROPS. Optional Starlight cab with air-conditioning. Optional low-profile Protector100 cab with air-conditioning.Reference
Engine
Yanmar 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine (gross)64.9 kWReference
YanmarReference
turbocharged dieselReference
4-cylinder 16-valveReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke98 x 110 mmReference
EmissionsStage 3AReference
Rated Power (gross)64.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque286.8 NmReference
Torque RPM1850Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
32-speedReference
Gears16 forward and reverseReference
Gears32 forward and reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift2399 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Dimensions
Wheelbase152 cmReference
Weight5313 to 5534 poundsReference
Front tire8.25-16Reference
Rear tire11.2R20Reference
Standard tires (ag)Front: 8.25-16. Rear: 11.2R20Reference
Optional tires (ag)Front: 250/80-16. Rear: 320/70R20Reference
Optional tires (ag)Front: 300/80-15.3. Rear: 360/70R20Reference
Optional tires (ag)Front: 320/65R18. Rear: 420/65R20Reference
Optional tires (ag)Front: 260/70R16. Rear: 340/65R18Reference
Length338 cmReference
Width132 cmReference
2409 kgReference
2510 kgReference
2459 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Antonio Carraro TGF 9800 Height
ROPS229 cmReference
Cab177 cmReference
Cab205 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
